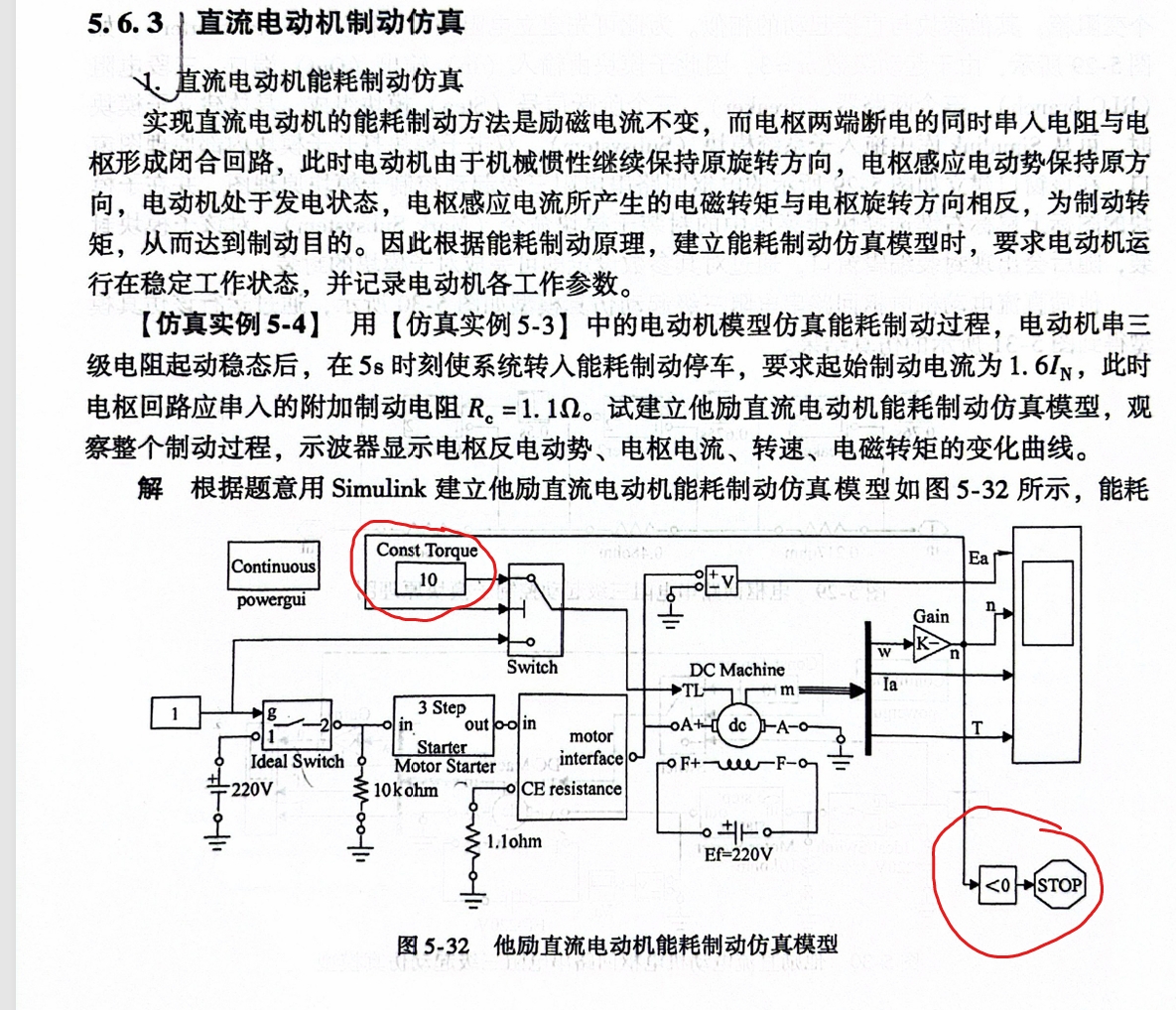

图中标红的两块地方在仿真中应该使用哪些元件来实现？

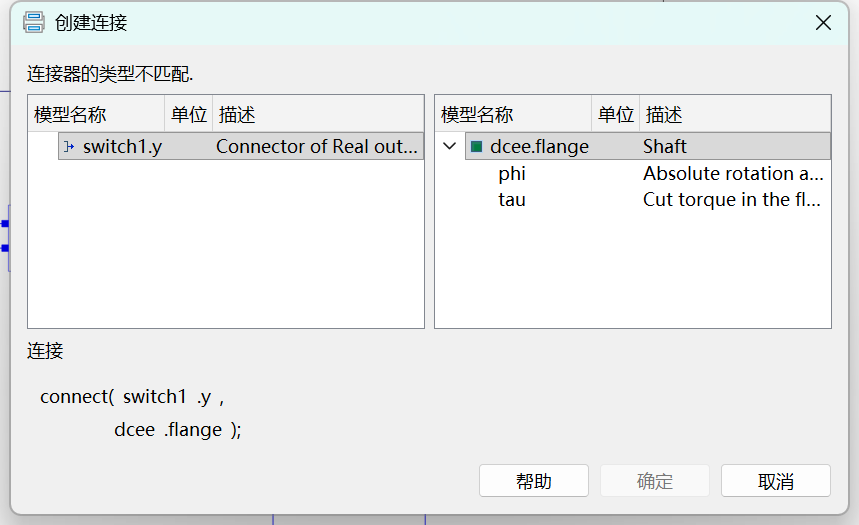

理想开关的右侧不能直接连接电机TL端，该如何处理？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
全部回答 1
发布于 2025-11-04 18:21:14
您好，Const Torque可使用Modelica.Mechanics.Rotational.Sources.ConstantTorque替代，Modelica中没有Stop模块，如果要实现达到某种条件时停止仿真，可使用Modelica语法中的assert函数，来实现，相关语法内容可前往官网查看视频教程。
开关与电机的连接请注意接口是否一致，电机可能为3相接口。
