使用永磁同步电机示例（开关电路型）转速达不到要求
一般问题
发布于 2025-11-11 10:50:23
查看 20过去230天

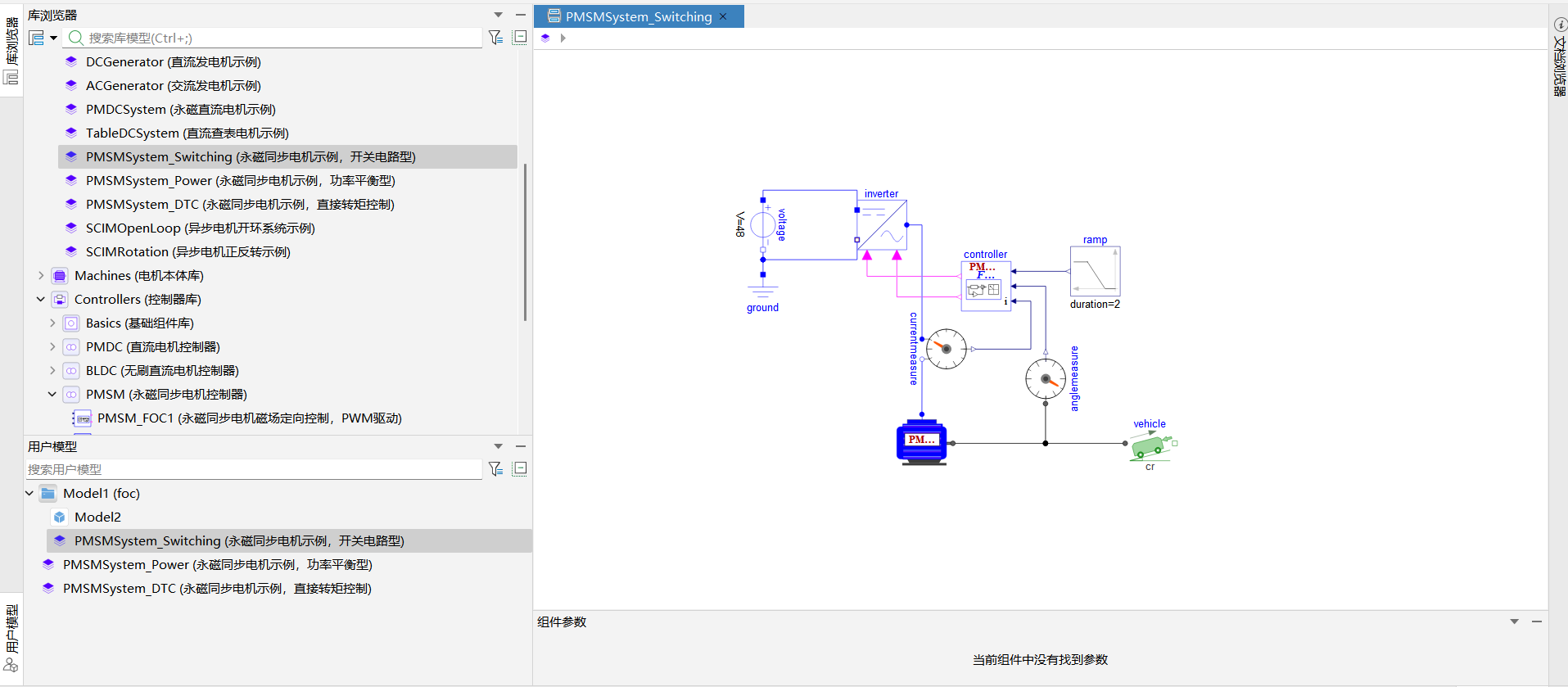

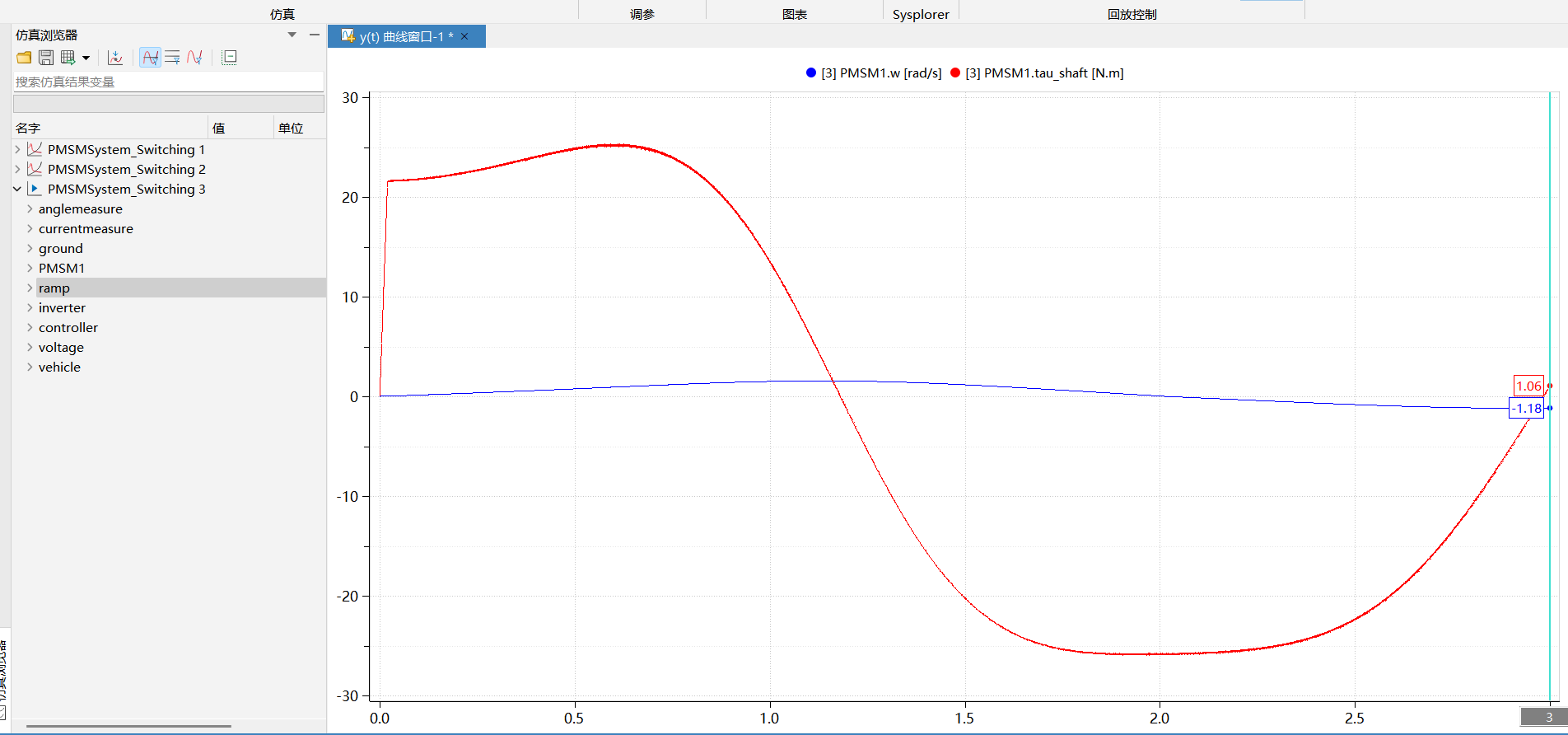

我在 示例：永磁同步电机示例（开关电路型）上进行修改，增加了一个50kg的小车组件，当直流电压为48V，目标转速为100时，仿真结果w转速远小于100且转矩和转速都为先增后减（推测可能加入负载，导致48V不够）
当我增加电压从48V到300V时，还是w转速远小于100且转矩和转速都为先增后减

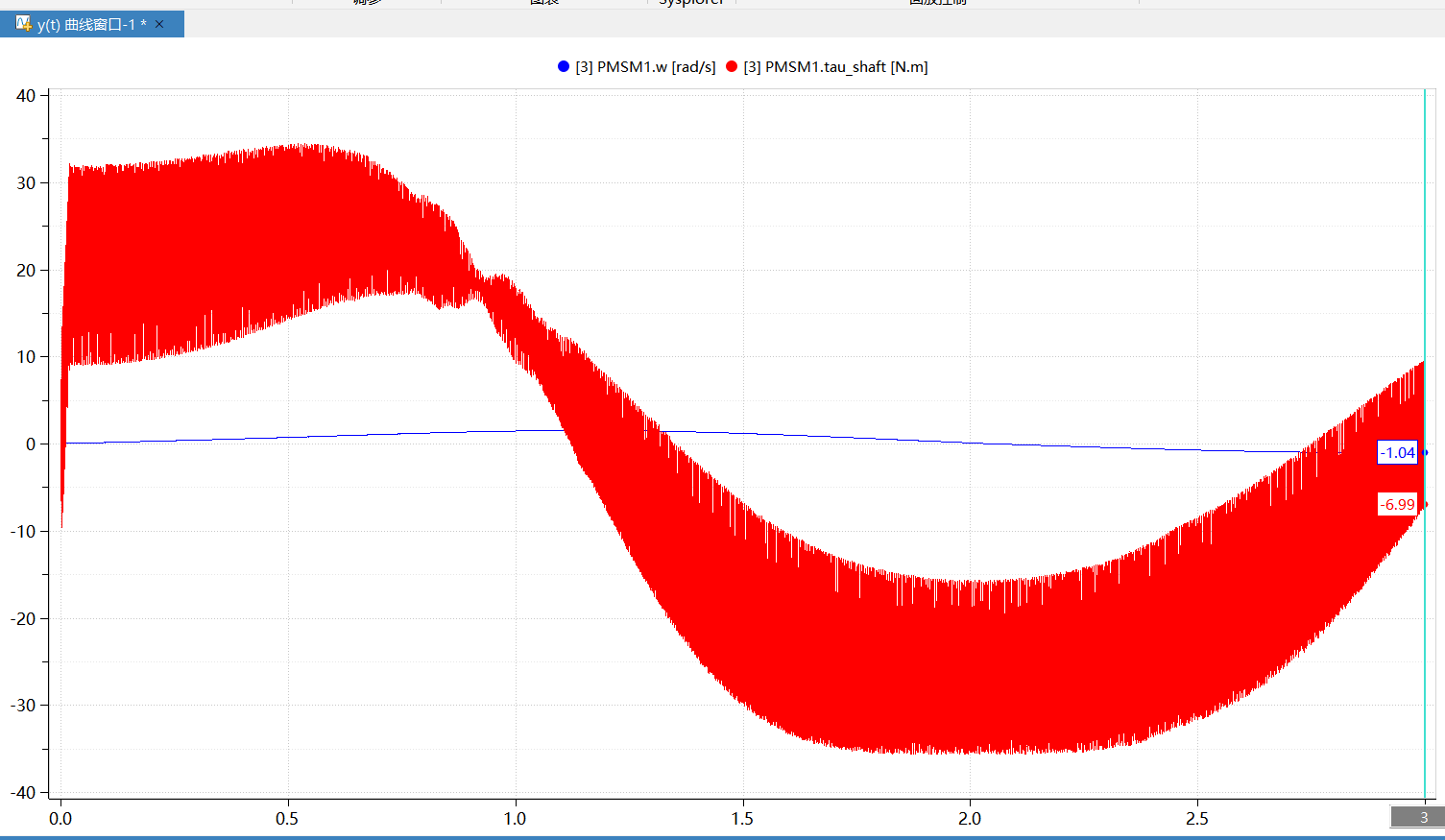

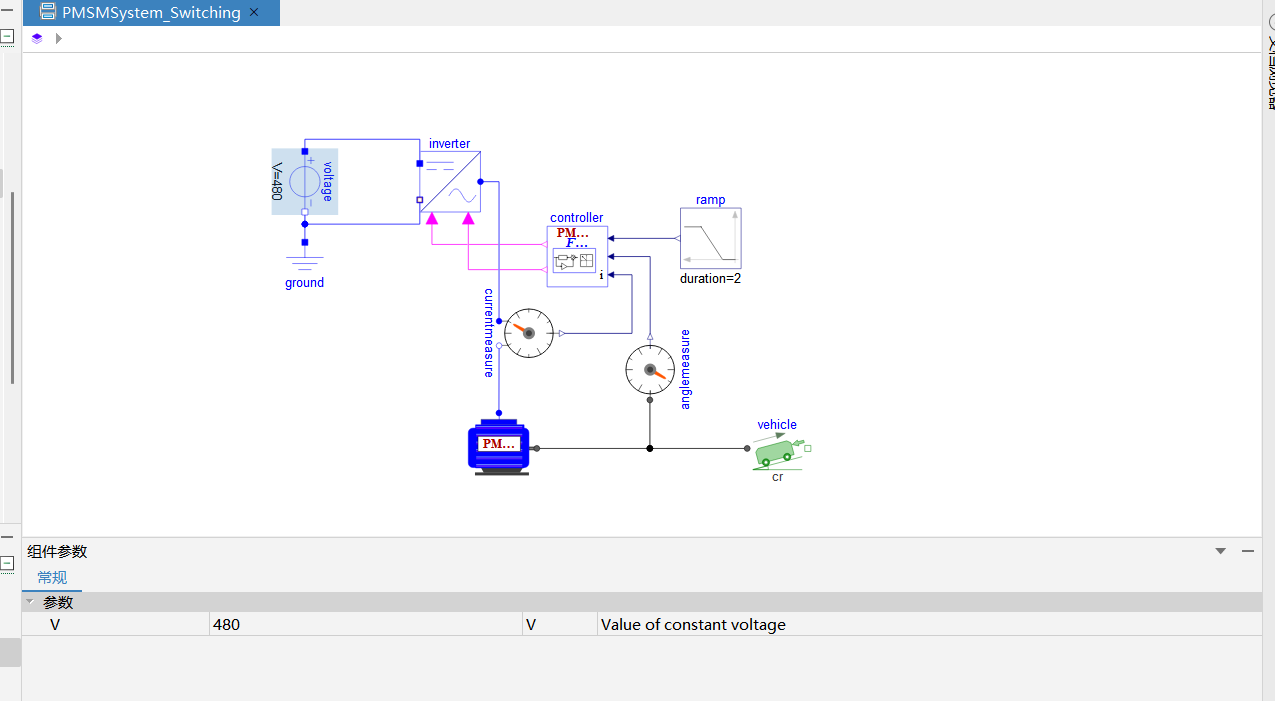

当增加电压到480V以上时，出现
这种情况怎么解决，不管怎么调节，都实现不能转速控制（我只能使用永磁同步电机，想实现重力势能储能）
神医求助！！！！！！！！！！
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(3kb)
