液压缸初始位移发生错误
一般问题
发布于 2025-11-13 15:12:30
查看 15过去227天

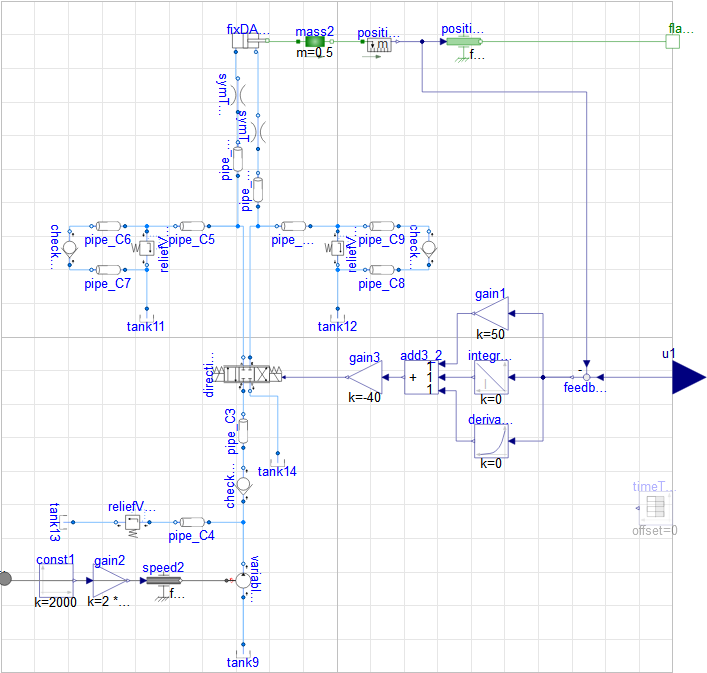

图中是我的建的一个液压系统，液压缸的初始位移设为0.6。

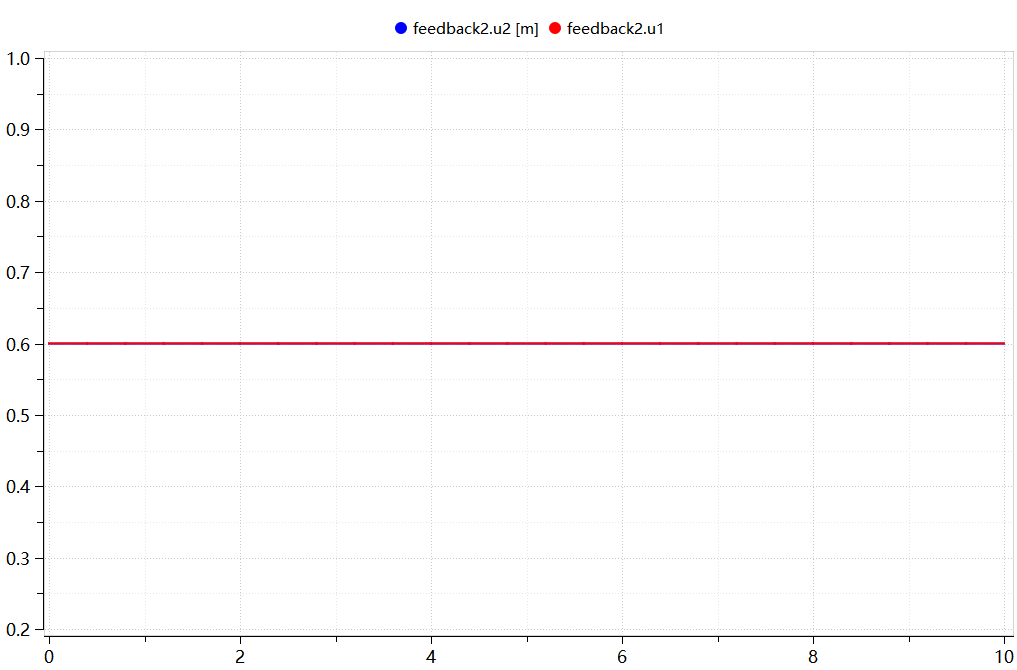

当在图中所在环境进行调试时，仿真结果如图所示

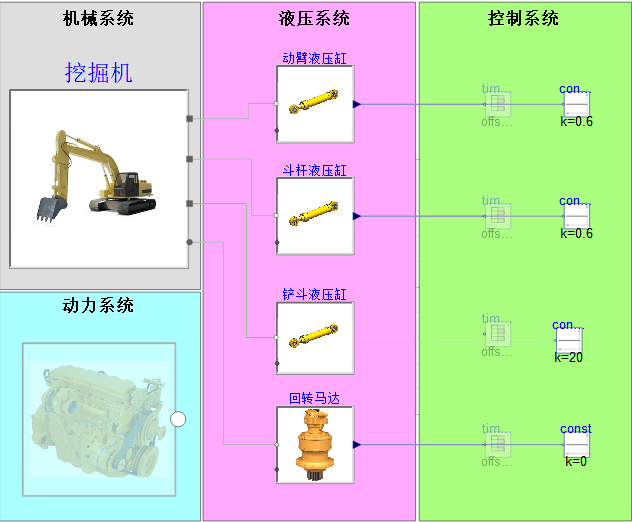

但是将模型进行系统集成，集成的图如图所示

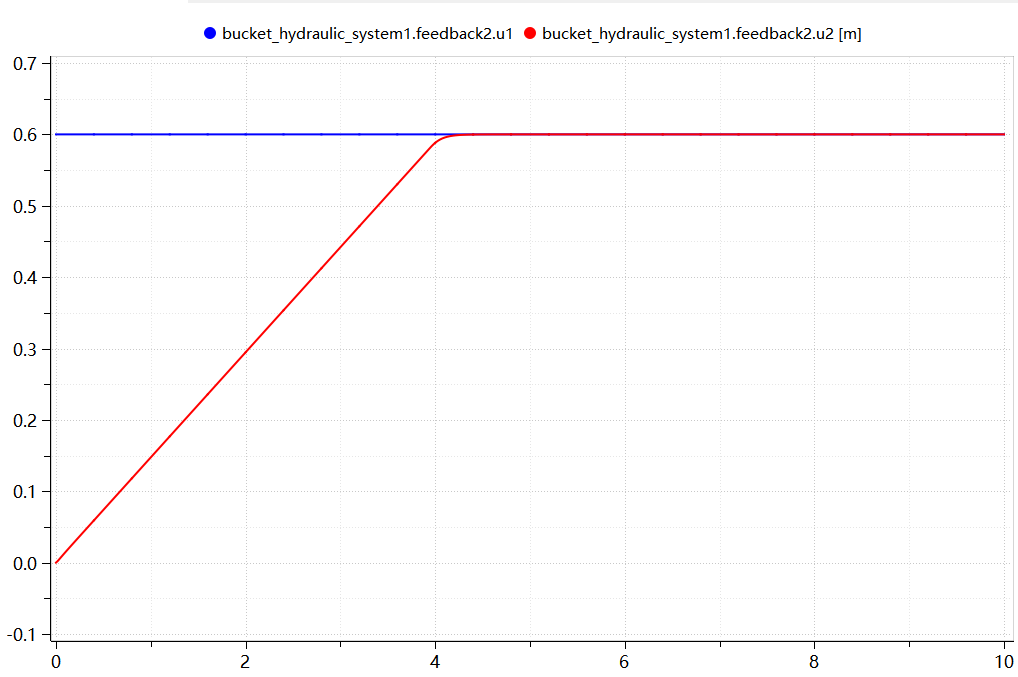

仿真结果显示液压缸的位移变为从0开始
这种情况应该怎么解决呢？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(73964kb) 图中是我的建的一个液压系统，液压缸的初始位移设为0.6。
当在图中所在环境进行调试时，仿真结果如图所示
但是将模型进行系统集成，集成的图如图所示
仿真结果显示液压缸的位移变为从0开始
这种情况应该怎么解决呢？

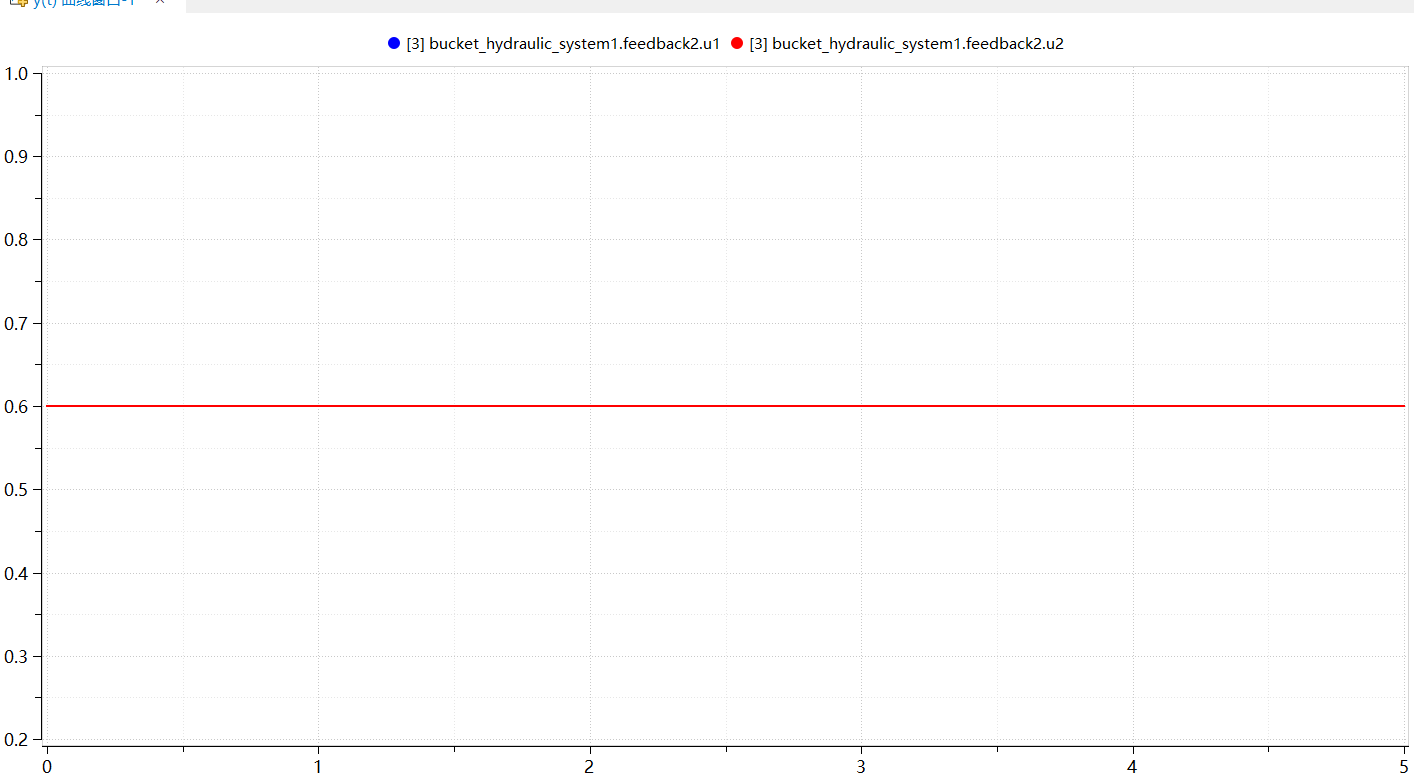

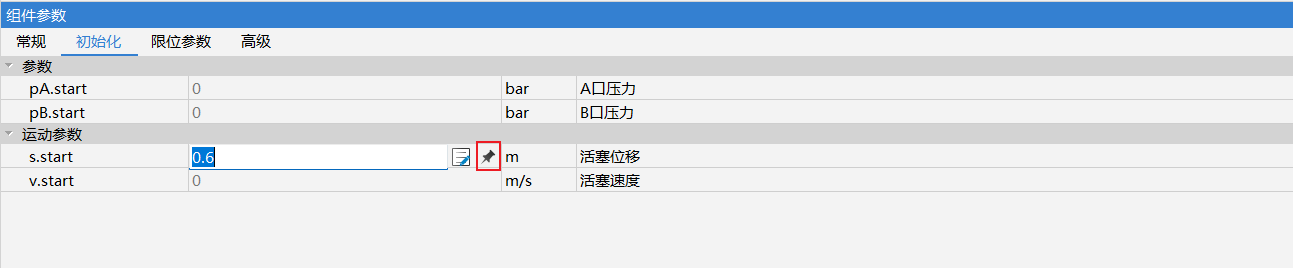

1 个附件(73964kb) 您好，在设置初始值时，需要点击“图钉”图标来把初始值锁定，如此即可强制设置初始值。
