我跟着教学视频做的四杆机构的建模仿真，翻译有错误，能帮忙看一下是什么原因吗
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(4kb) 我跟着教学视频做的四杆机构的建模仿真，翻译有错误，能帮忙看一下是什么原因吗
1 个附件(4kb) 您好，需要修改两处

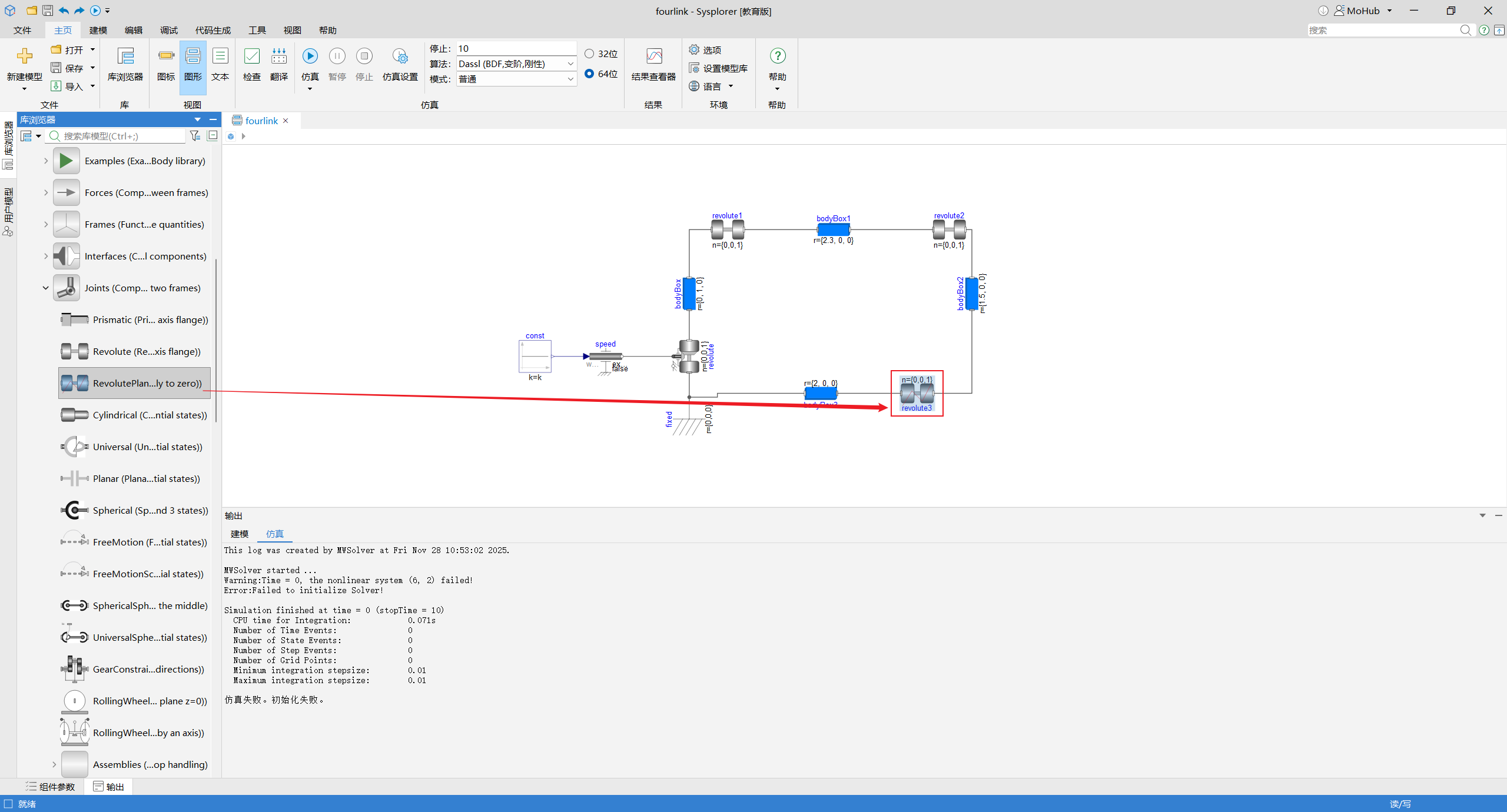

1.替换转动副为Modelica.Mechanics.MultiBody.Joints.RevolutePlanarLoopConstraint

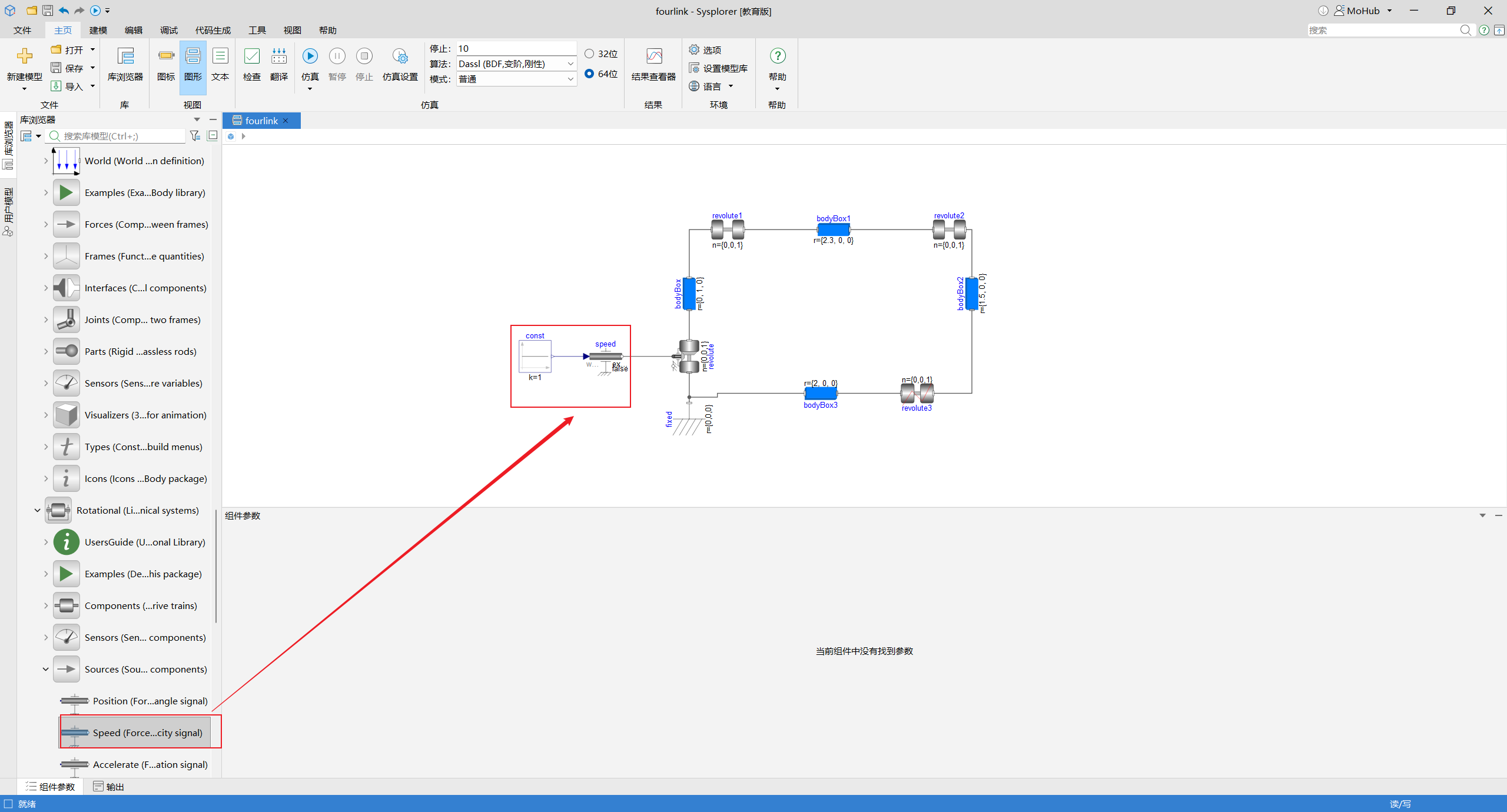

2.修改速度源，使用以下两个组件
Modelica.Blocks.Sources.Constant
Modelica.Mechanics.Rotational.Sources.Speed
