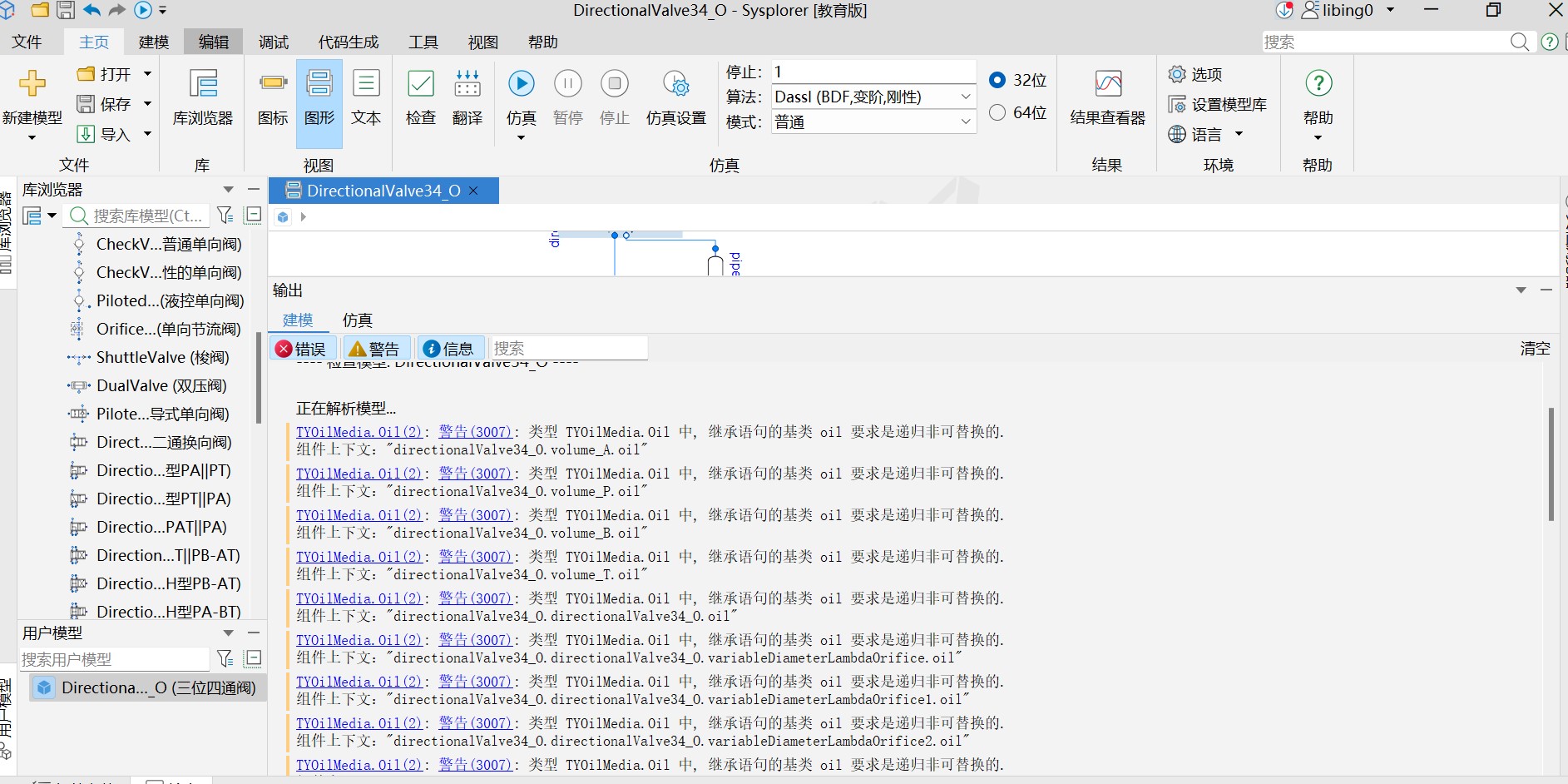

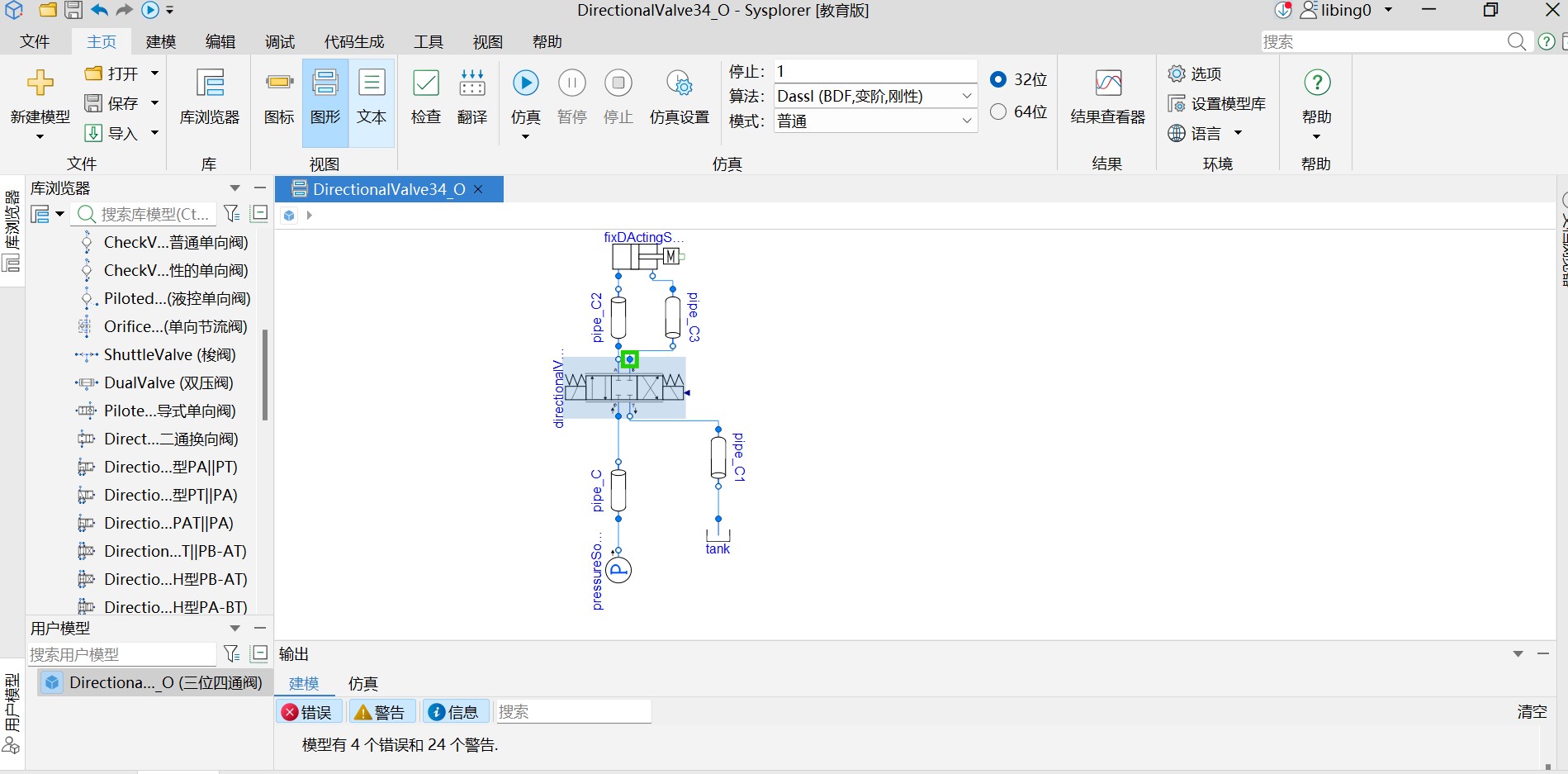

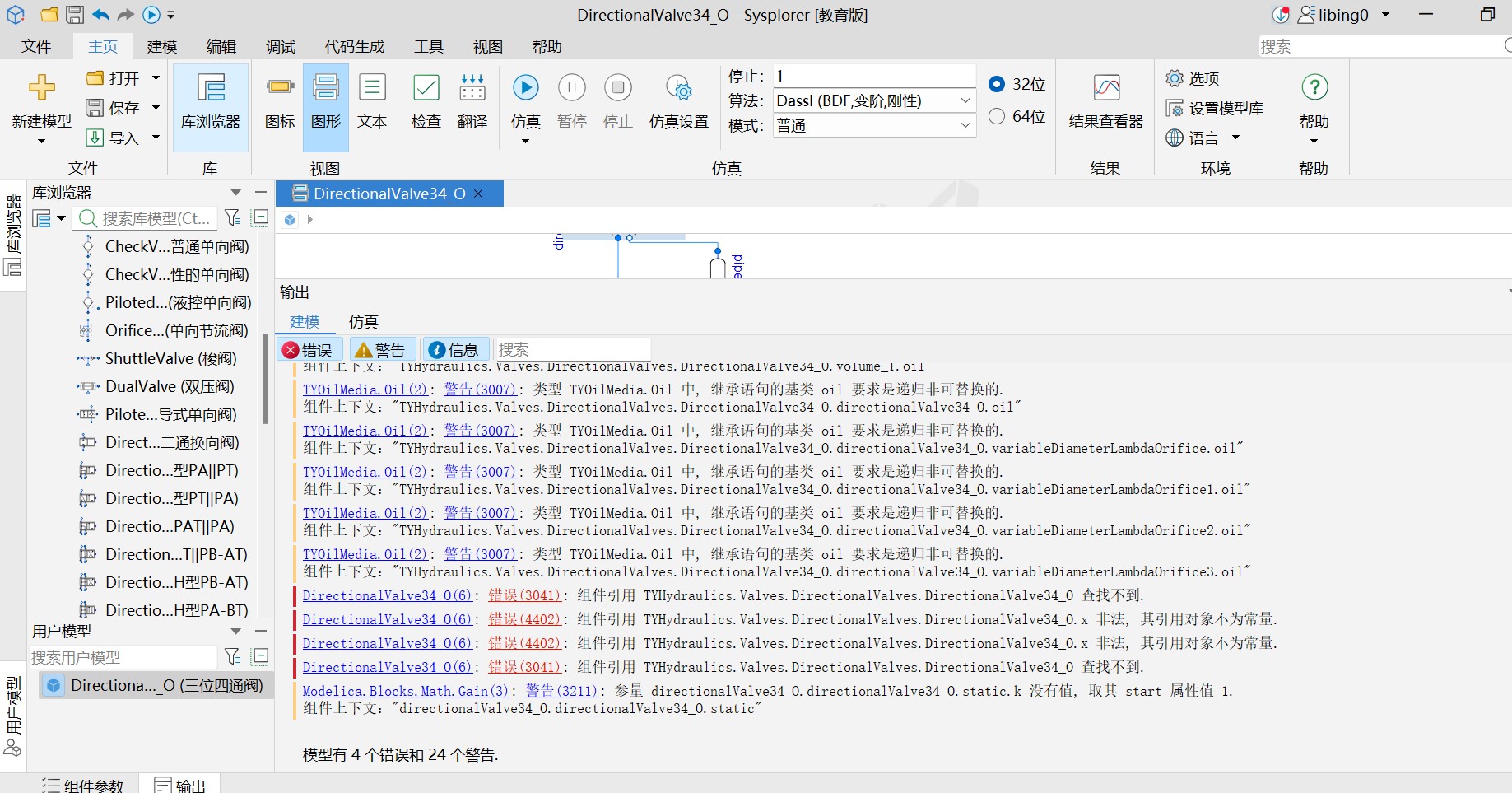

三位四通阀运行遇到错误一般问题libing0发布于 2025-12-01 01:22:05查看 9过去210天 运行中出现以下问题怎么解决 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境液压MWORKS体验官 1 个附件(4kb) DirectionalValve34_O.mo3.61 KB 写回答 关注问题 点赞 0 踩 0 收藏 0

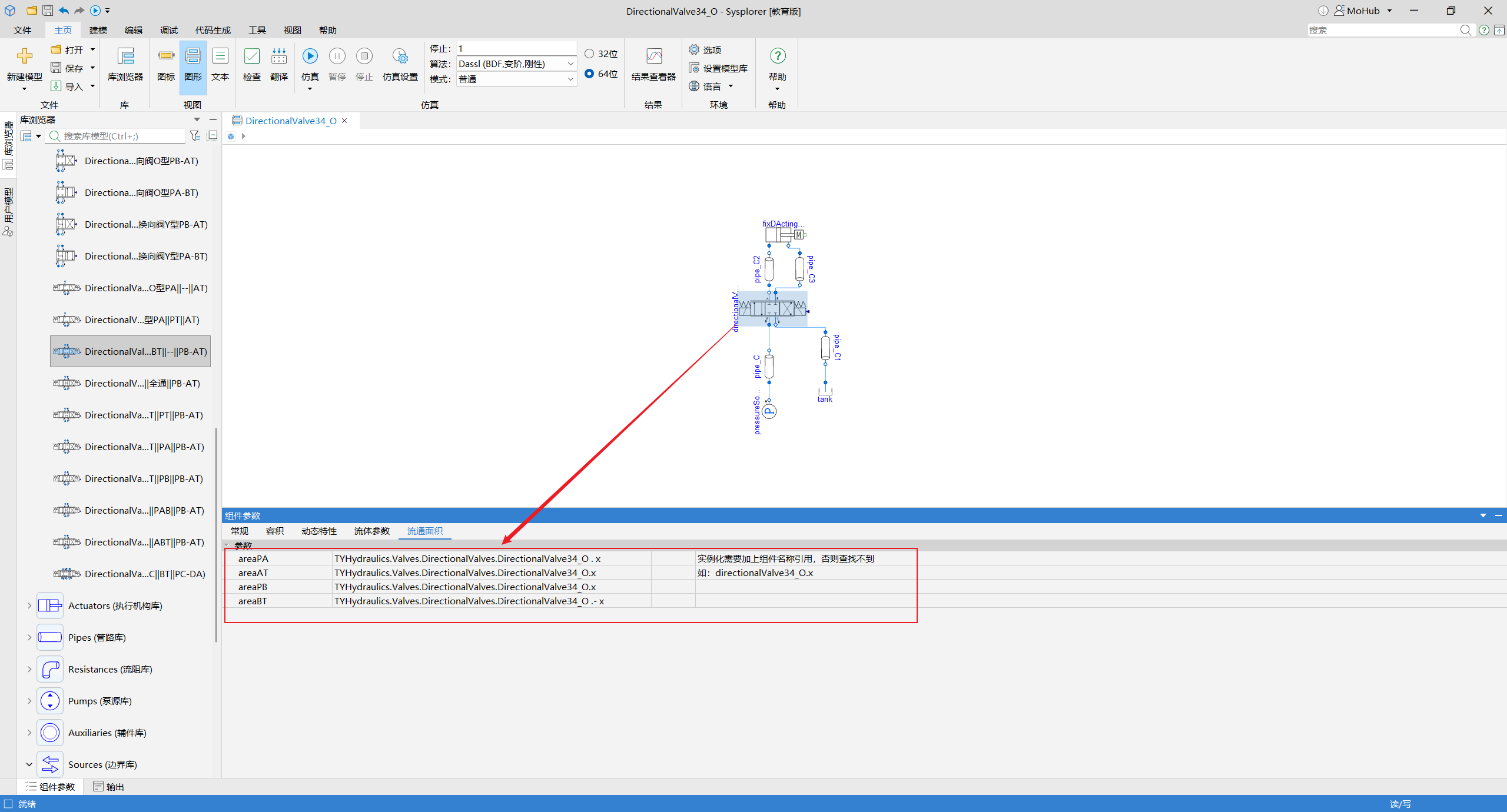

MoHub发布于 2025-12-01 08:55:53您好，您的模型这里的参数设置有问题，不存在TYHydraulics.Valves.DirectionalValves.DirectionalValve34_O这个模型。 0 0回复
