介质组分比例问题
一般问题
发布于 2025-12-04 23:46:14
查看 10过去206天
在TYAirTreatmentAndVentilation(空气处理与通风模型库）中有一个除湿系统的例子，其中冷却式空气干燥机改变了气体的组分，这是怎么实现的？
在一个系统中自定义一个混合气体介质，系统的不同位置的气体成分比例不同，这种工况能否实现。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
专栏
标签
高校专区
全部回答 2
发布于 2025-12-05 11:28:03
您好，示例中系统进行了除湿，水蒸气含量降低，改变气体组分。
介质有一个初始组分，即初始的气体成分比例，在系统中是可以动态变化的，比如在经过除湿器后水蒸气的含量会减少，从而实现自定义混合气体介质。
发布于 2025-12-06 13:42:58

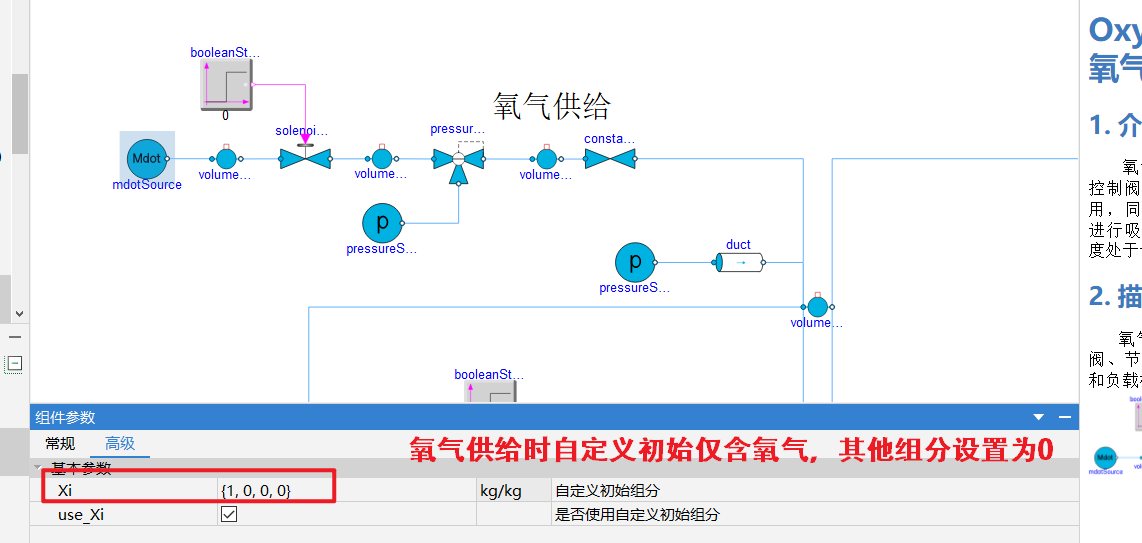

可以搭建氧气供给系统等改变混合气的成分比例，具体可以参考TYAirTreatmentAndVentilation.Examples.OxygenSupplySystem系统

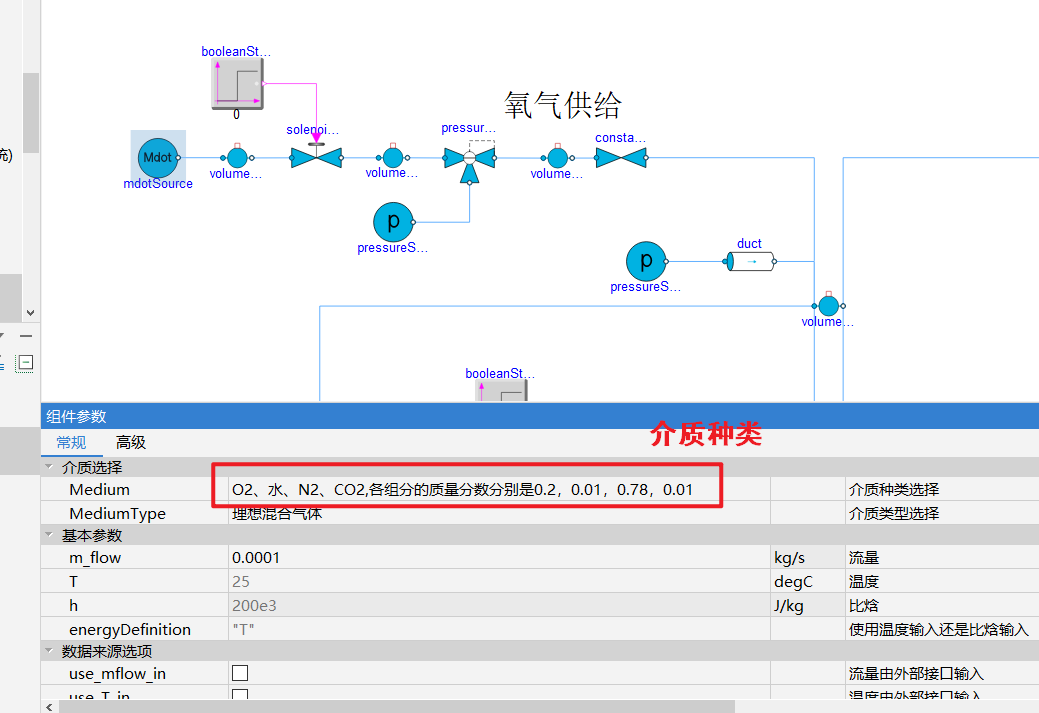

对于空气中的组分含量可以进行设置，只要气体中所含组分种类相同可以进行混合，比如上述例子中
'%3e%3cg%20id='Group'%3e%3cpath%20id='Vector'%20d='M12%2012.0002C13.933%2012.0002%2015.5%2010.4331%2015.5%208.50009C15.5%206.56705%2013.933%205%2012%205C10.067%205%208.5%206.56705%208.5%208.50009C8.5%2010.4331%2010.067%2012.0002%2012%2012.0002Z'%20fill='white'%20stroke='white'%20stroke-width='1.40002'%20stroke-linecap='round'%20stroke-linejoin='round'/%3e%3cpath%20id='Vector_2'%20d='M19.5%2021.6877C19.5%2019.6985%2018.7098%2017.7908%2017.3033%2016.3843C15.8968%2014.9777%2013.9891%2014.1875%2012%2014.1875C10.0109%2014.1875%208.10322%2014.9777%206.6967%2016.3843C5.29018%2017.7908%204.5%2019.6985%204.5%2021.6877'%20stroke='white'%20stroke-width='1.87503'%20stroke-linecap='round'%20stroke-linejoin='round'/%3e%3cpath%20id='Vector_3'%20d='M12%2014.1875C10.0109%2014.1875%208.10322%2014.9777%206.6967%2016.3843C5.29018%2017.7908%204.5%2019.6985%204.5%2021.6877H19.5C19.5%2019.6985%2018.7098%2017.7908%2017.3033%2016.3843C15.8968%2014.9777%2013.9891%2014.1875%2012%2014.1875Z'%20fill='white'%20stroke='white'%20stroke-width='1.87503'%20stroke-linecap='round'%20stroke-linejoin='round'/%3e%3c/g%3e%3c/g%3e%3crect%20x='2.15'%20y='2.15'%20width='19.7'%20height='19.7'%20rx='9.85'%20stroke='%23F96A02'%20stroke-width='0.3'/%3e%3c/g%3e%3c/g%3e%3cdefs%3e%3cclipPath%20id='clip0_474_37108'%3e%3crect%20x='2'%20y='2'%20width='20'%20height='20'%20rx='10'%20fill='white'/%3e%3c/clipPath%3e%3c/defs%3e%3c/svg%3e)
和原帖交流更多问题细节吧，去
