活塞压缩机的建模仿真
产品缺陷
发布于 2025-12-07 21:30:16
查看 18过去203天

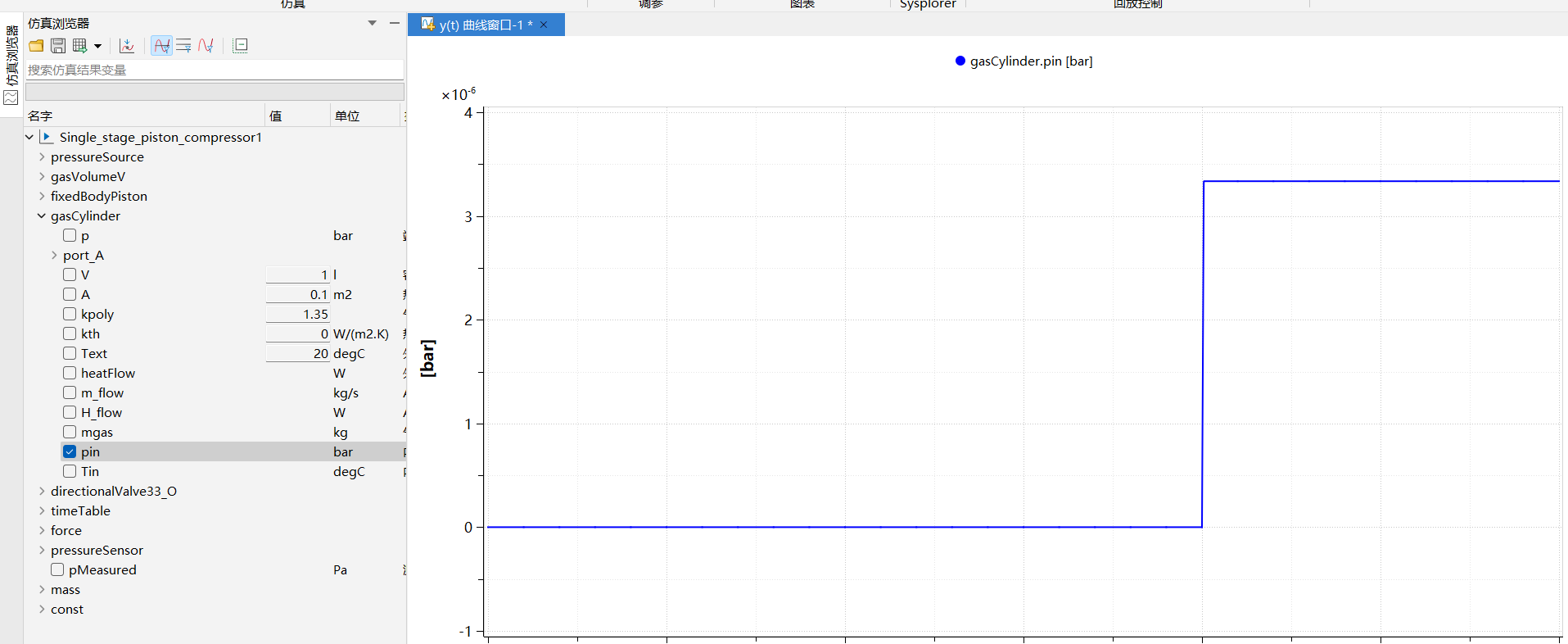

为什么我改变力的大小只能使气体的压力提升最高2.5倍，有没有什么办法能使这个模型达到通过改变力的大小改变气体的压力。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
系统信息：Win10或11
1 个附件(6kb) 为什么我改变力的大小只能使气体的压力提升最高2.5倍，有没有什么办法能使这个模型达到通过改变力的大小改变气体的压力。
1 个附件(6kb) 您好，请问您是想要升高哪里的压力？能否截图示意一下？
我想通过改变力的大小，或者不采用常数力，使气瓶内的气体的压力达到10bar。
