关于输出
一般问题
发布于 2026-01-11 13:41:18
查看 10过去168天
您好，
为什么一次输入，会导致输出二次变化。

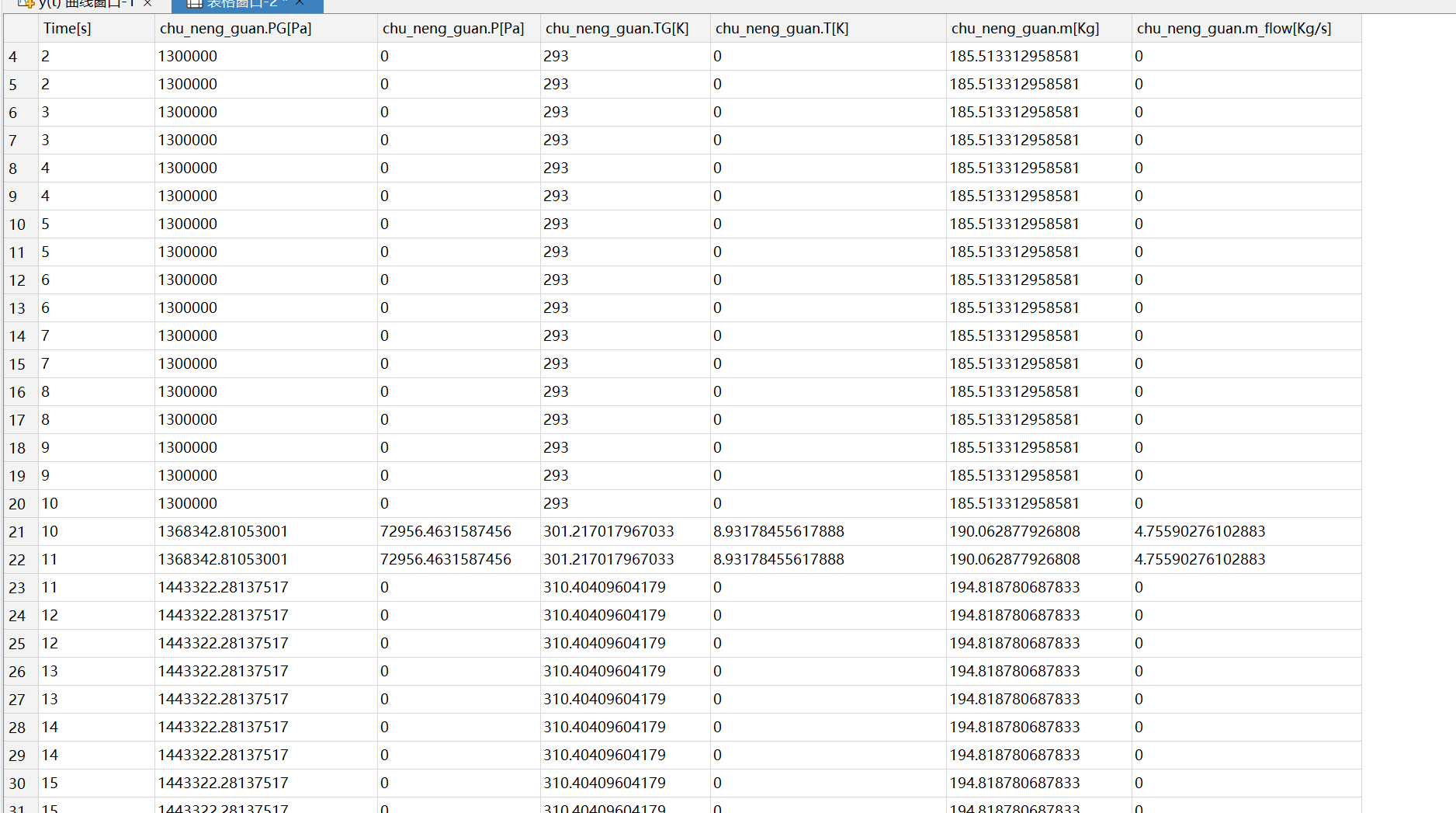

，图中P，T，m_flow在10,11有值，对应的PG，TG，m的值都增加了。为什么在11,12。P，T，m_flow没有值，而PG，TG，m的值有增加了。这个问题该怎么解决了。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(10kb) 您好，为什么一次输入，会导致输出二次变化。，图中P，T，m_flow在10,11有值，对应的PG，TG，m的值都增加了。为什么在11,12。P，T，m_flow没有值，而PG，TG，m的值有增加了。这个问题该怎么解决了。

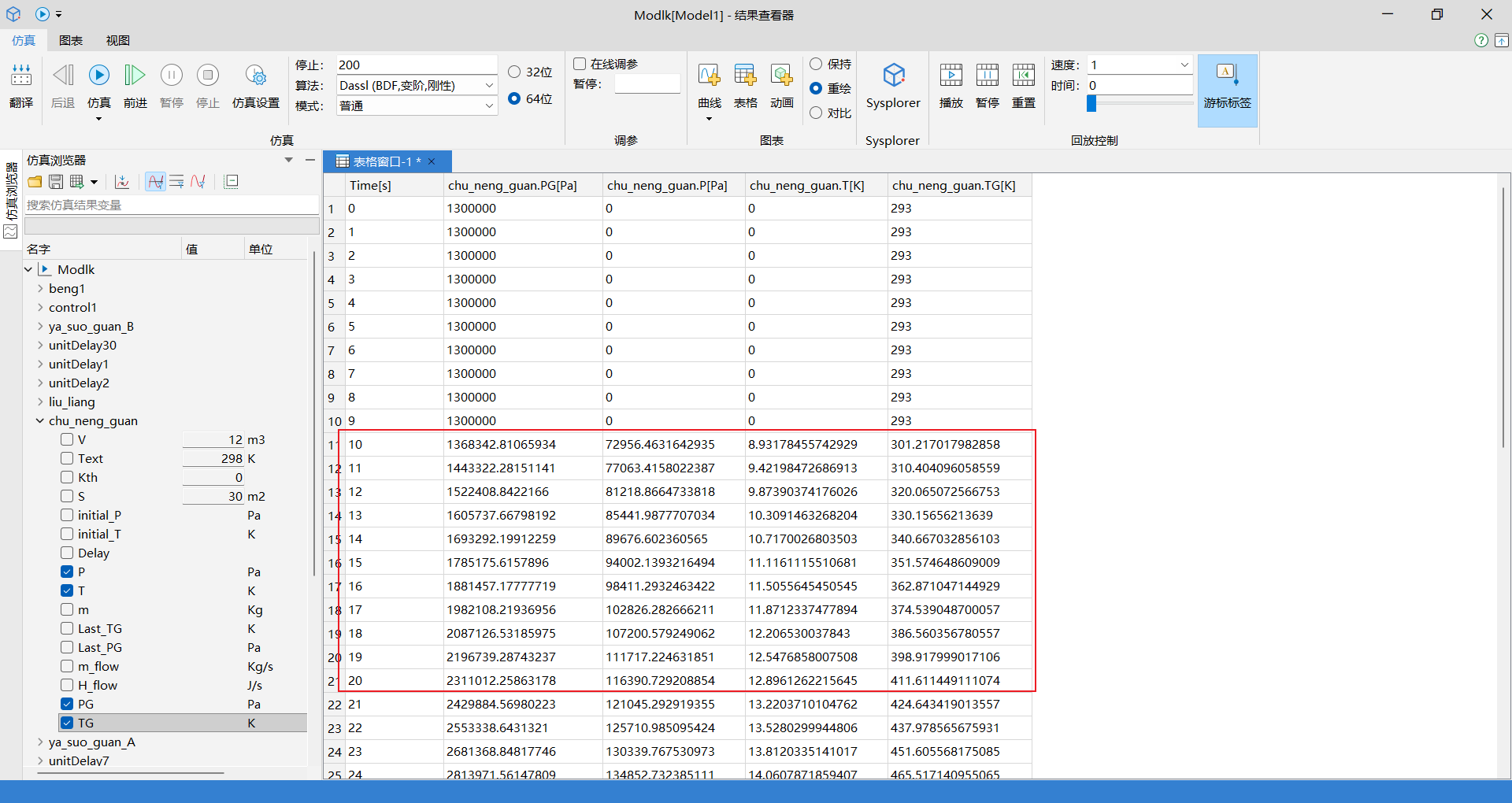

1 个附件(10kb) 您好，我们这边的仿真结果与您上传的图片不一致，请检查一下模型上传是否正确。
