基于FMU的Adams与sysplorer联合仿真连接异常问题
一般问题
发布于 2026-01-15 10:32:52
查看 14过去165天

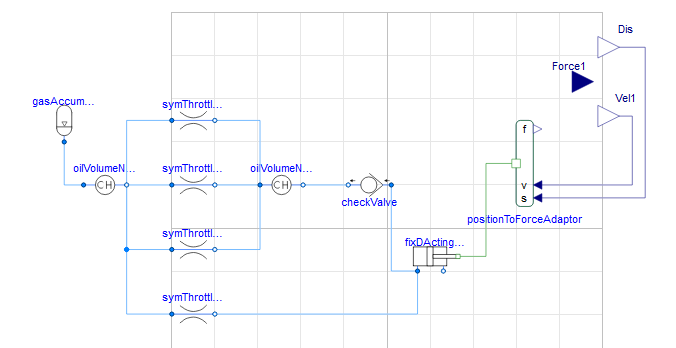

如上图，我在Adams导出的fmu文件导入sysplorer后，我想用液压回路模拟起落架缓冲器的力，由Adams传递速度和位移给sysplorer，再由液压回路把力传递给Adams，但是这两个力信号无法直接连接，我确保一个是输入一个是输出，提示两个端口都产生信号或两个端口包含相同的信号源，有没有人能指点一下
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(18kb)
