求助！！电感电流如何设置可与Simulink中的电感电流一致？
一般问题
发布于 2026-01-26 19:52:43
查看 15过去153天
如何设置，可以使得Mworks.sysplorer中RL电路的电流 和Simulink中相同电路的电流一致？

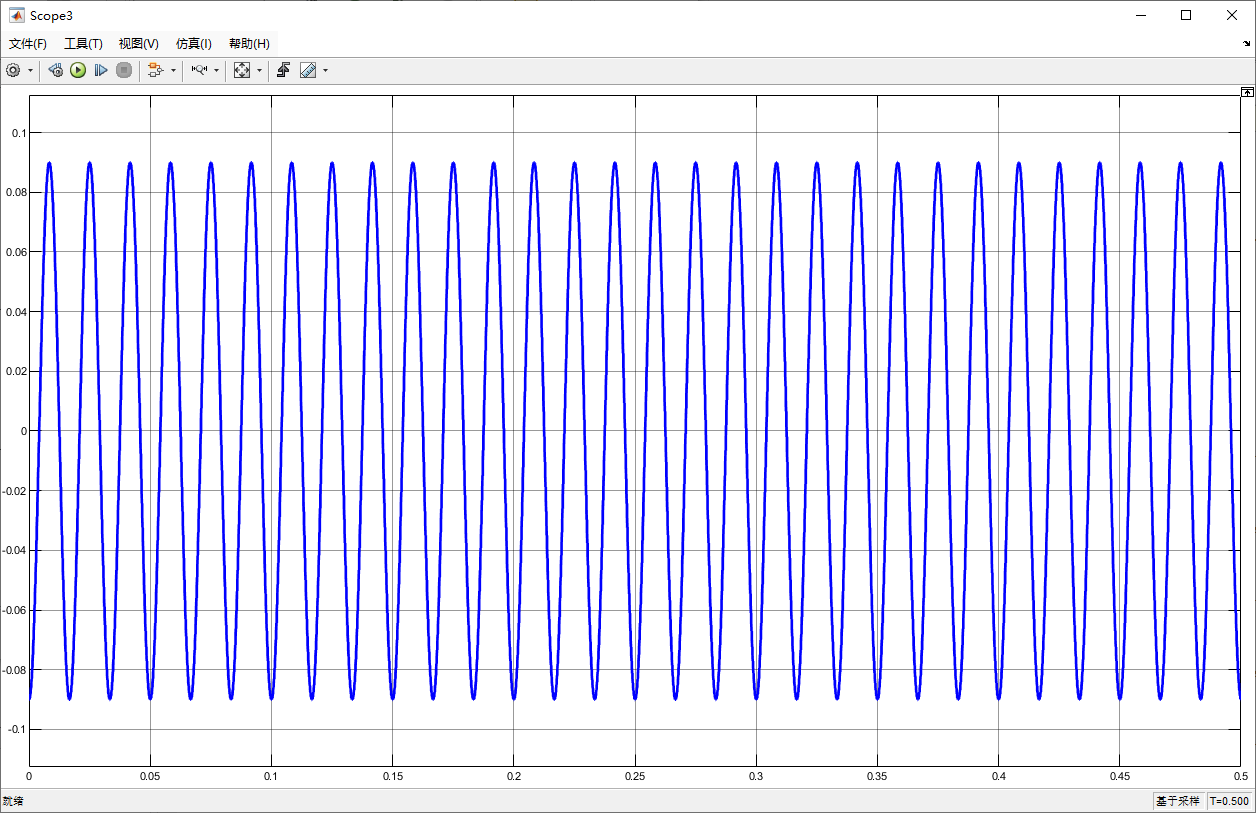

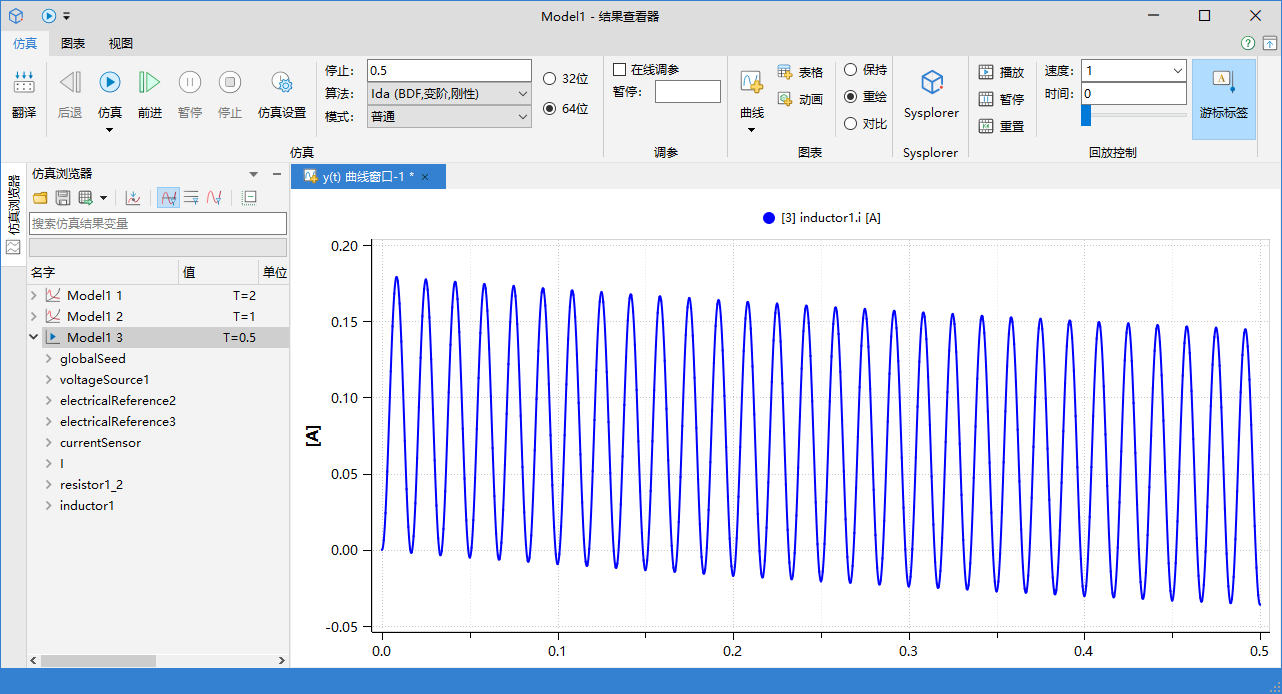

图一为RL电路，图二为Simulink中RL电路的电流波形，图三为Sysplorer中RL电路的电流波形。图二图三对比可知，Sysplorer中RL电路的电流起始值为0，而Simulink中相同电路的电流起始值非零。如何设置，可以使得Mworks.sysplorer中任意RL电路的电流 和Simulink中相同电路的电流波形一致？（R和L的参数不定）
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
