电路中加入恒功率负载后仿真报错
一般问题
发布于 2026-01-26 20:46:03
查看 17过去153天
π型电路后加恒功率负载出现无法仿真的问题(图1)。
在这之后经过测试，发现串联电感＋恒功率负载或者只去掉电感，也会产生无法仿真的问题。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
3 个附件(103kb) π型电路后加恒功率负载出现无法仿真的问题(图1)。
在这之后经过测试，发现串联电感＋恒功率负载或者只去掉电感，也会产生无法仿真的问题。
3 个附件(103kb) 您好，请问该模型是否与simulink模型对标？是的话烦请您上传对标的模型。

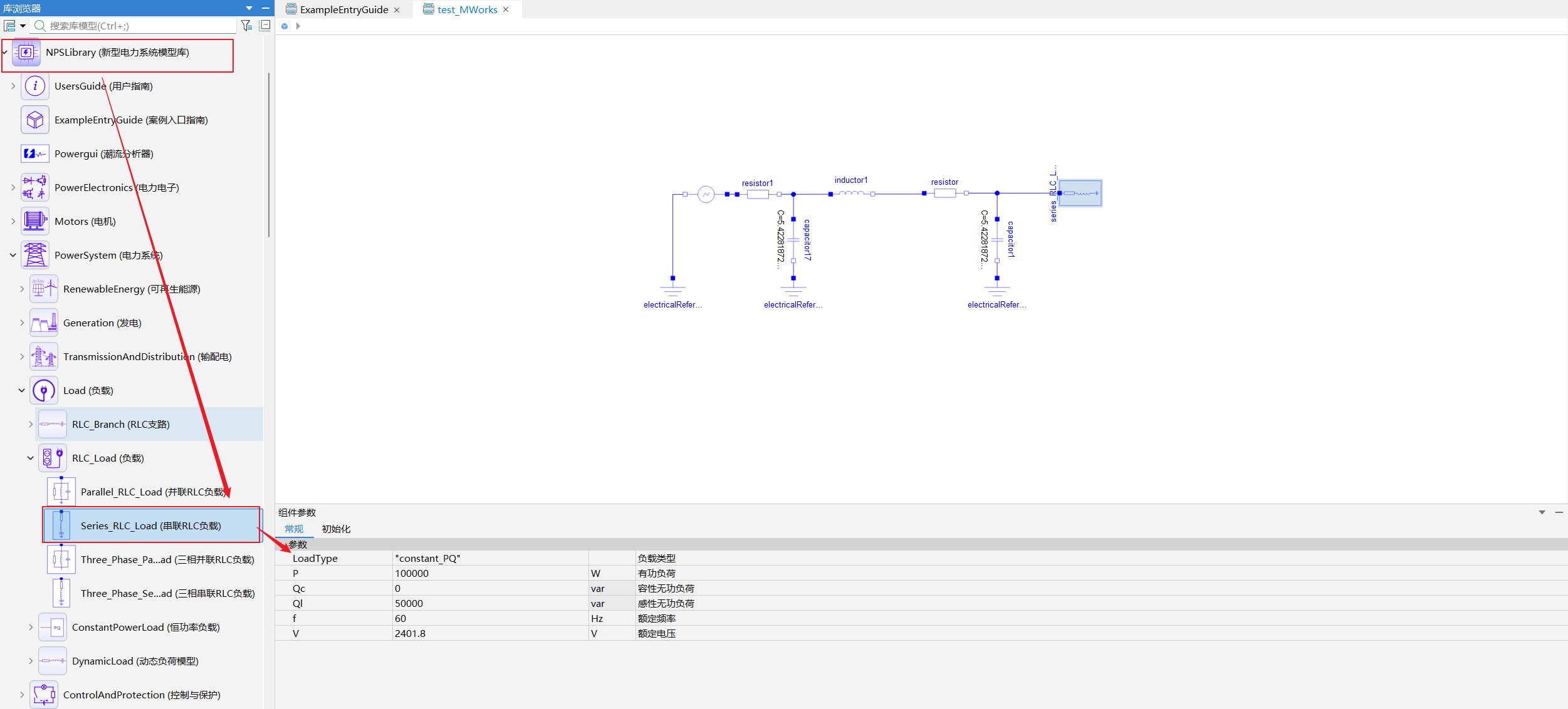

您好，2月6日上线的2026a版本的Sysplorer提供了串联RLC负载，如下图所示，可以在官网更新之后下载试用。
