simulink模型转换问题
一般问题
发布于 2026-02-02 20:46:24
查看 20过去146天

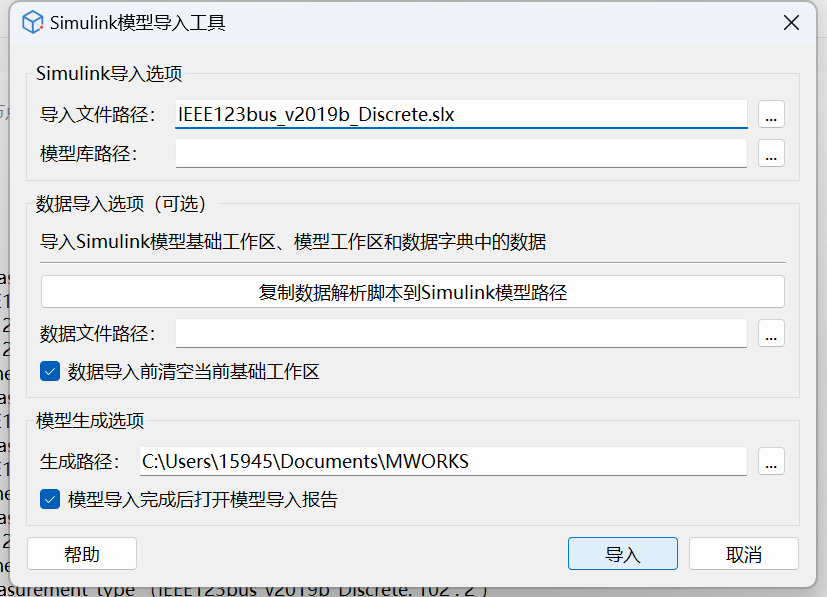

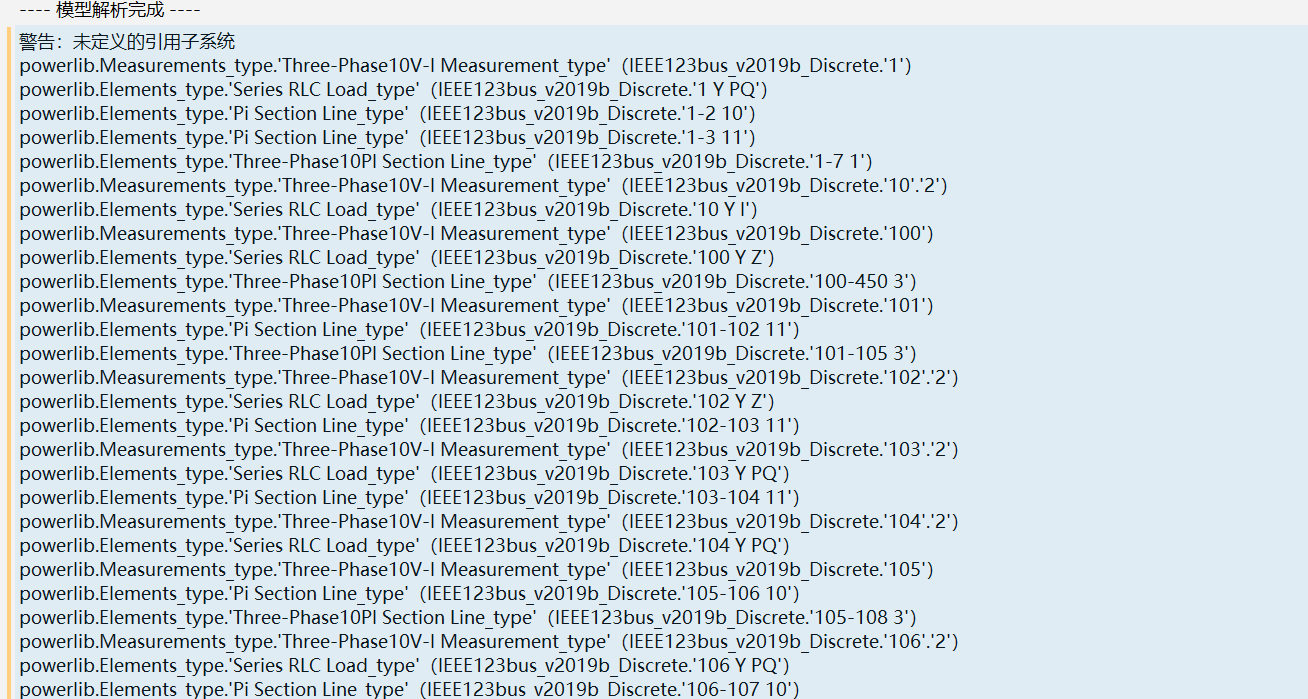

将simulink模型导入，想要转换在MWorks中使用，在转换中报错
如何转换成功，如果可行，能否提供转换后的文件
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(216kb) 将simulink模型导入，想要转换在MWorks中使用，在转换中报错
如何转换成功，如果可行，能否提供转换后的文件

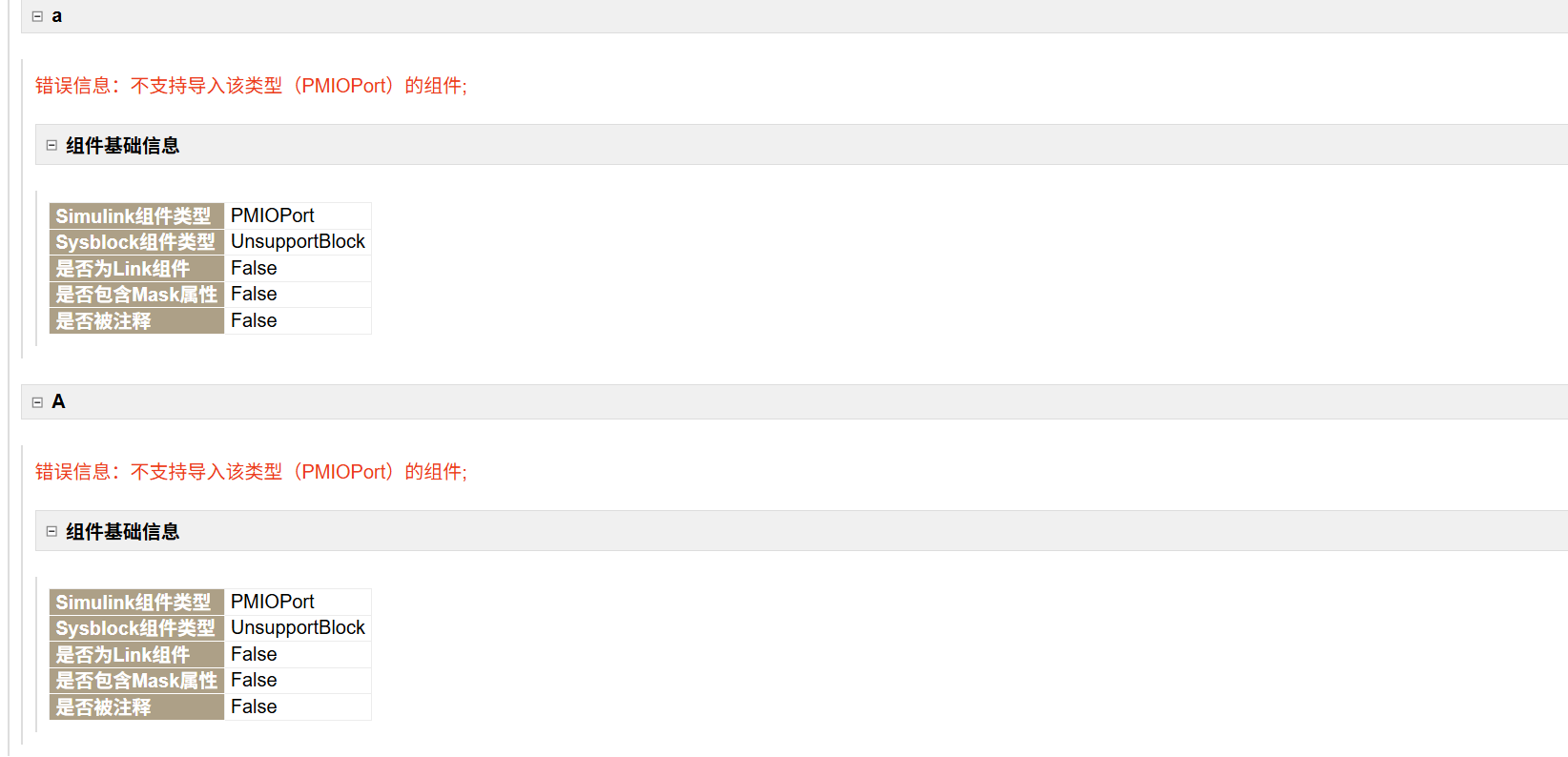

1 个附件(216kb) 您好，您的模型中存在不支持的组件，您可以基于模型的原理在Sysplorer中重新构建，也可以直接将原模型导出为FMU再导入到Sysplorer中。
