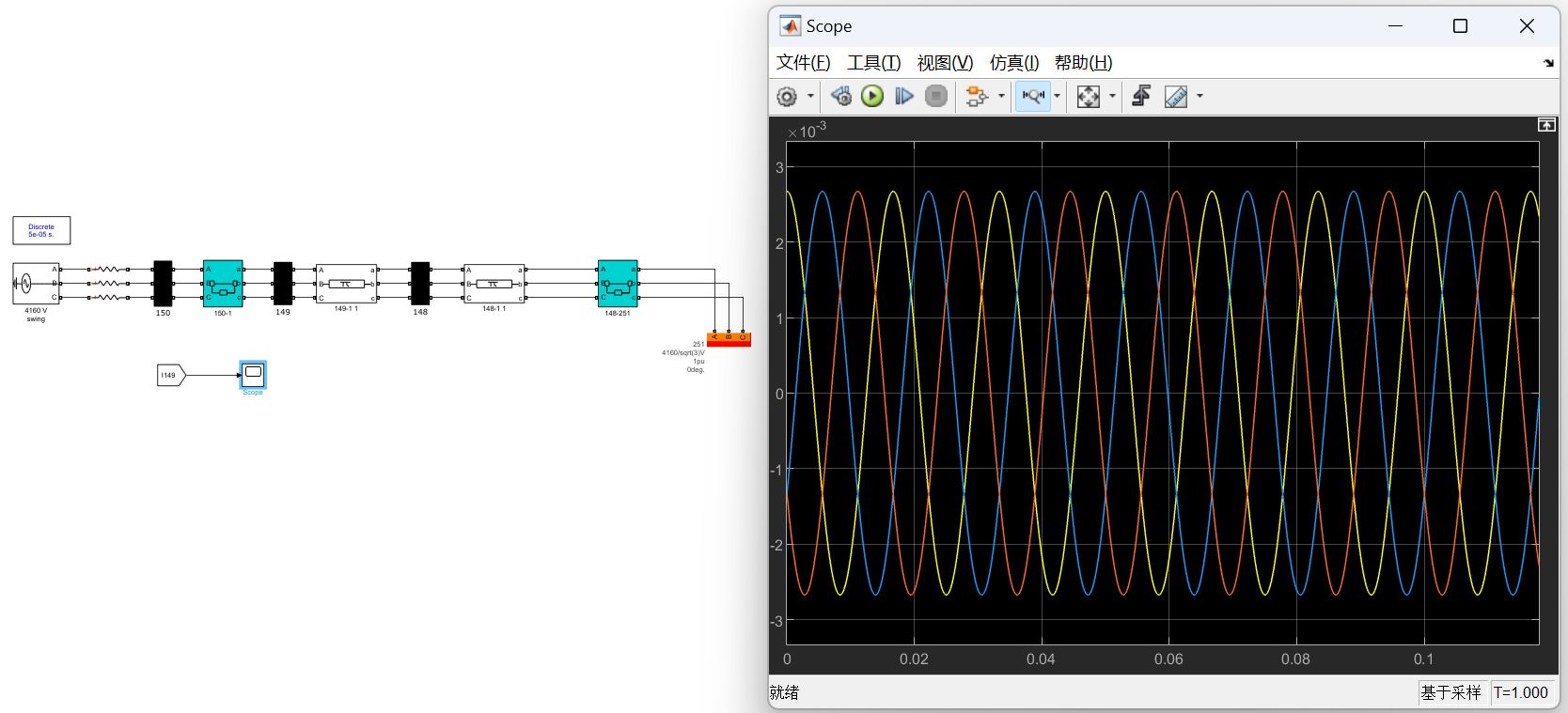

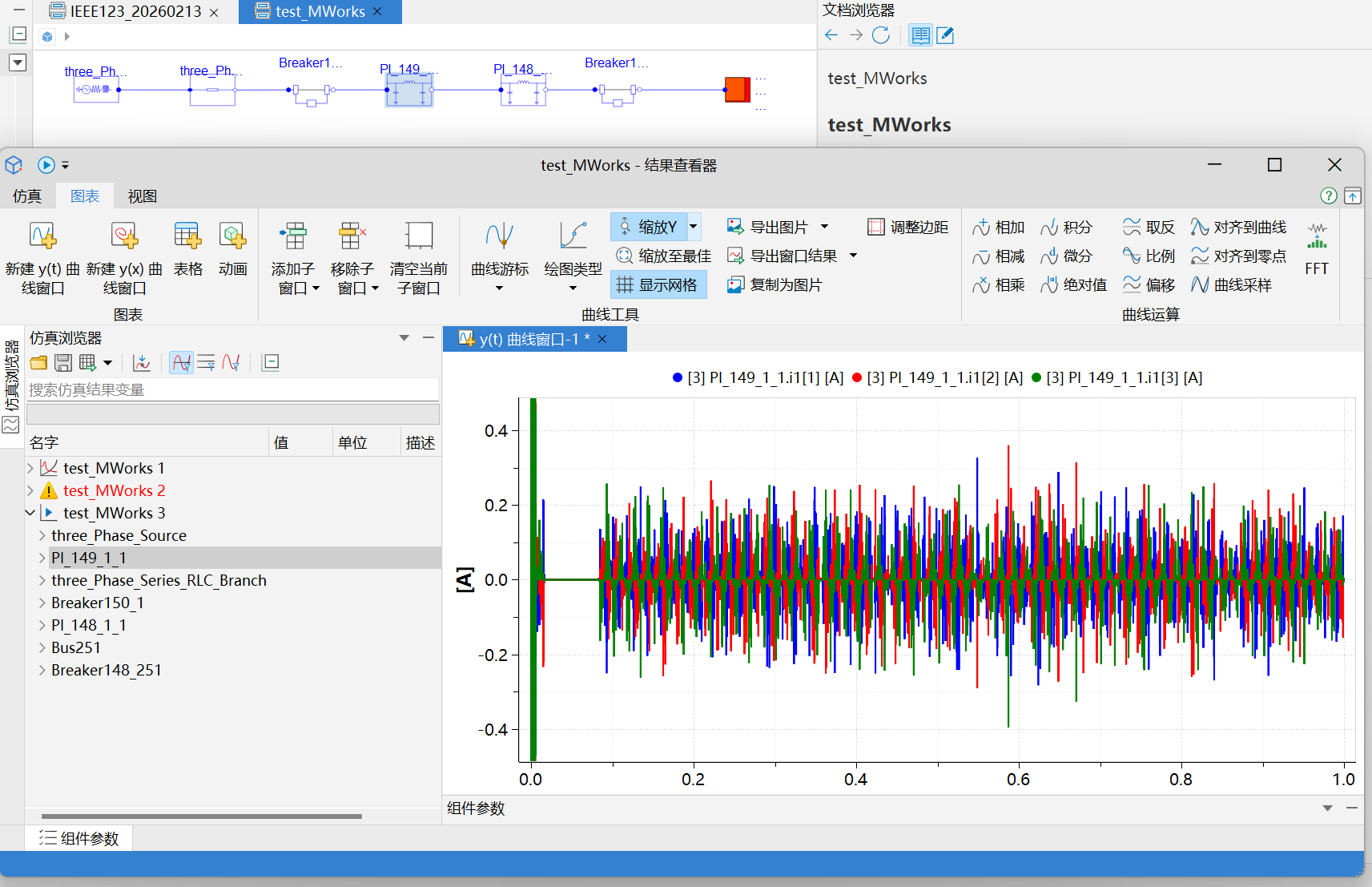

华为电力电子设计大赛——加入潮流总线和断路器后，仿真结果与simulink不一致
一般问题
发布于 2026-02-13 16:21:02
查看 19过去135天
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
2 个附件(35kb)

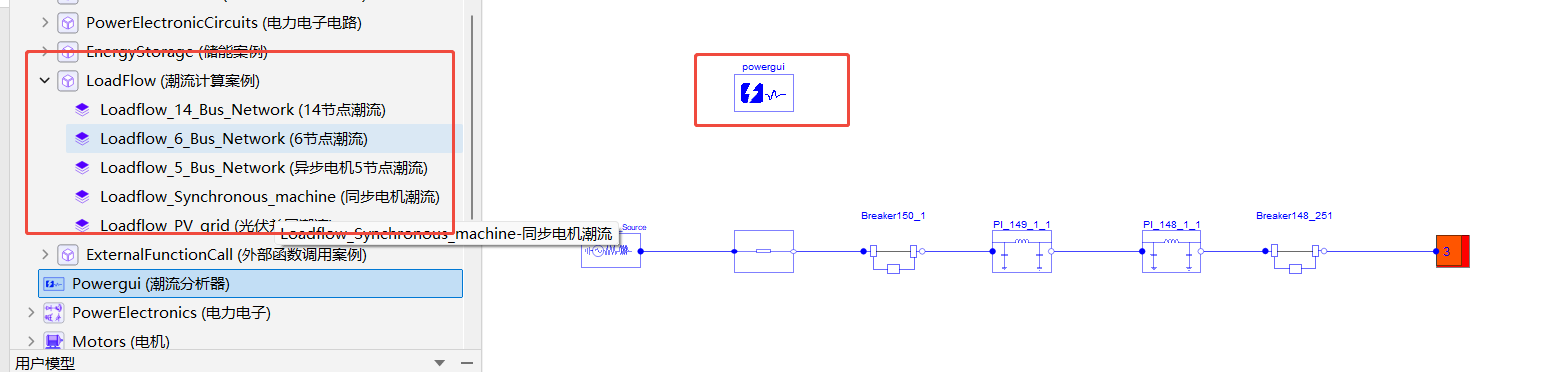

2 个附件(35kb) 可以参考下案例，我发现几个问题哈，第一就是powergui没增加，初值无法启动的，可以看看案例，他是怎么操作的！
可以参考下案例，我发现几个问题哈，第一就是powergui没增加，初值无法启动的，可以看看案例，他是怎么操作的！
还有算法要用离散求解的定步长算法
