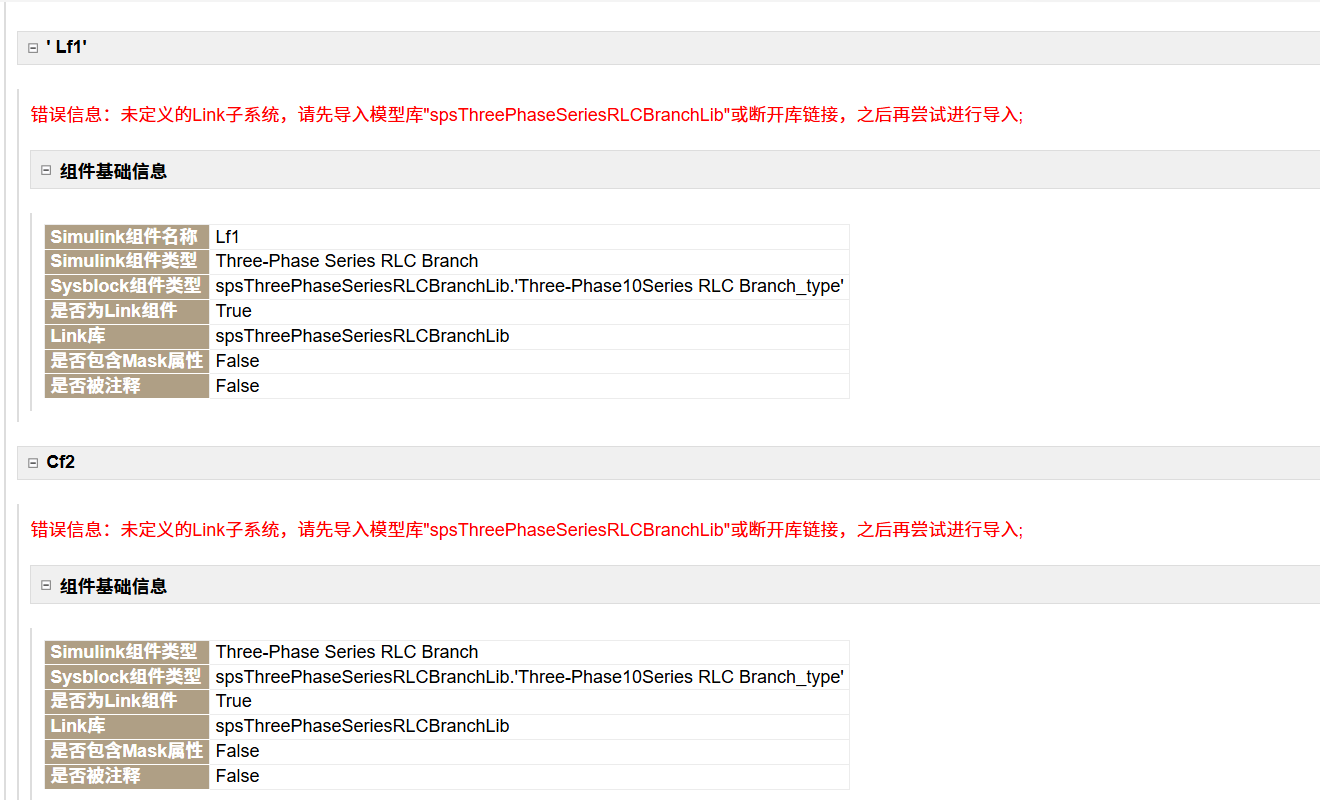

Simulink的模型导入到Sysplorer平台，Link库部分的组件无法解析，如何解决？一般问题
发布于 2026-02-25 19:46:54
查看 27过去259天
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(103kb)
1 个附件(103kb) 您好，这个问题通常是因为待导入的Simulink模型中包含了Link子系统，但导入工具没有正确配置其依赖的模型库路径导致的。

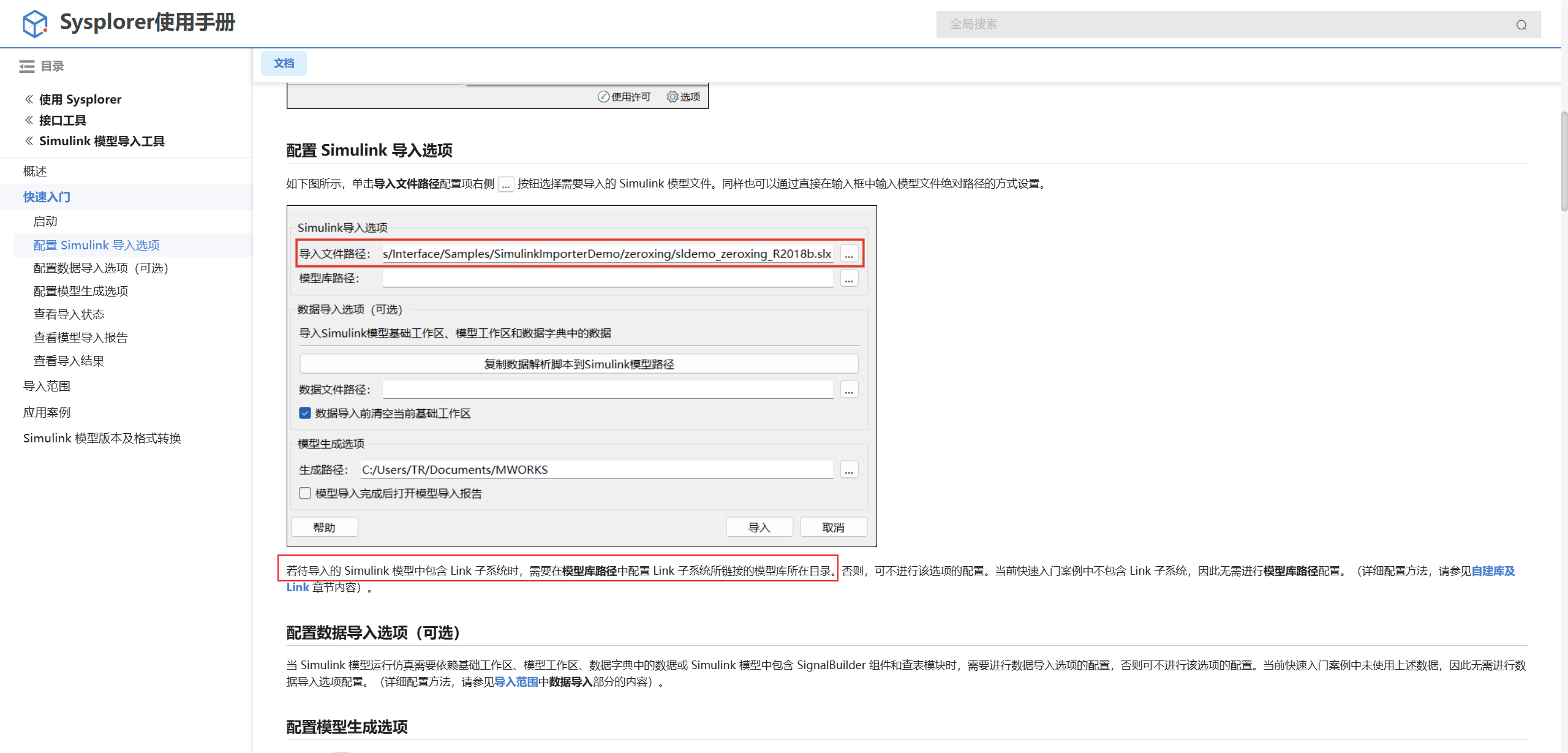

您可以参考帮助中心中的说明，在模型库路径中配置 Link 子系统所链接的模型库所在目录，如下图所示。
