sysblock控制器控制转动副转动，仿真报错
一般问题
发布于 2026-03-12 15:33:12
查看 22过去108天
由sysblock控制器输出的控制信号给转动副，然后报错（6181），该怎么处理（接上continuousClock仿真就正常运行，但是不是我想要的控制角度）
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
3 个附件(32kb) 专栏
标签
高校专区
3 个附件(32kb) 采纳的回答
发布于 2026-03-12 17:30:32

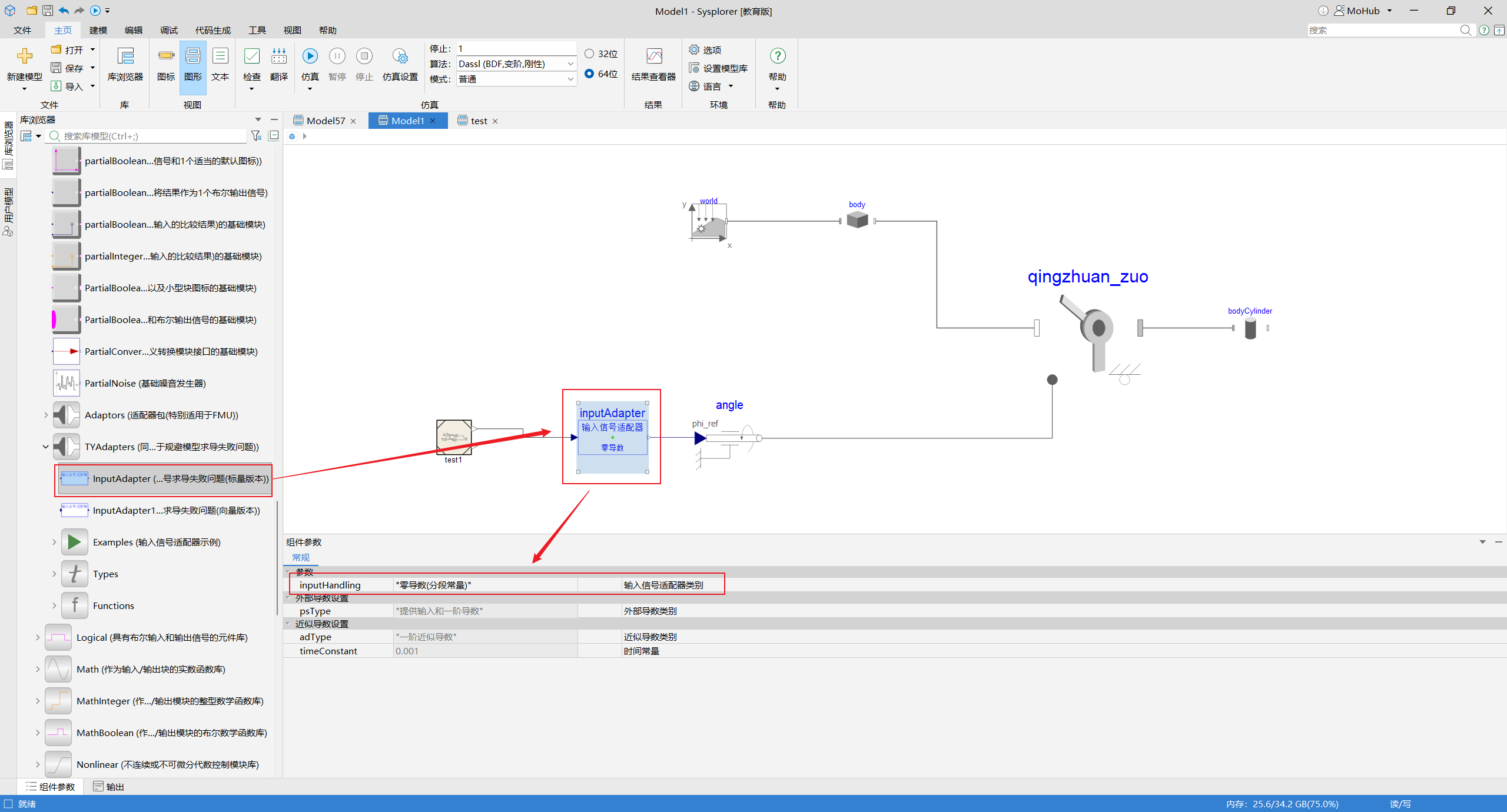

您好，可以使用 Modelica.Blocks.Interfaces.TYAdapters.InputAdapter 来转接一下，如下图所示，将参数设置为零导数即可仿真。
全部回答 1
发布于 2026-03-12 17:30:32
您好，可以使用 Modelica.Blocks.Interfaces.TYAdapters.InputAdapter 来转接一下，如下图所示，将参数设置为零导数即可仿真。
