同步选取介质
一般问题
发布于 2026-03-13 11:46:44
查看 13过去107天
看到同元模型库里，只要模型接口相连，介质只需要一个模型选取一次即可，其他模型自动改变介质类型，这个原理是什么，自己开发的模型，能这么操作吗，是代码改动还是软件的功能？求教？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
看到同元模型库里，只要模型接口相连，介质只需要一个模型选取一次即可，其他模型自动改变介质类型，这个原理是什么，自己开发的模型，能这么操作吗，是代码改动还是软件的功能？求教？

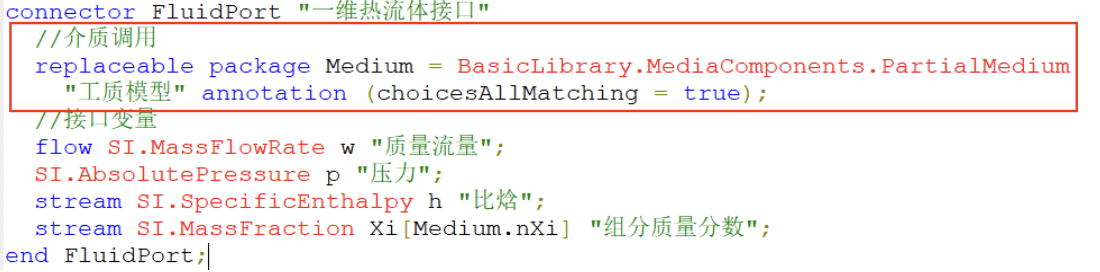

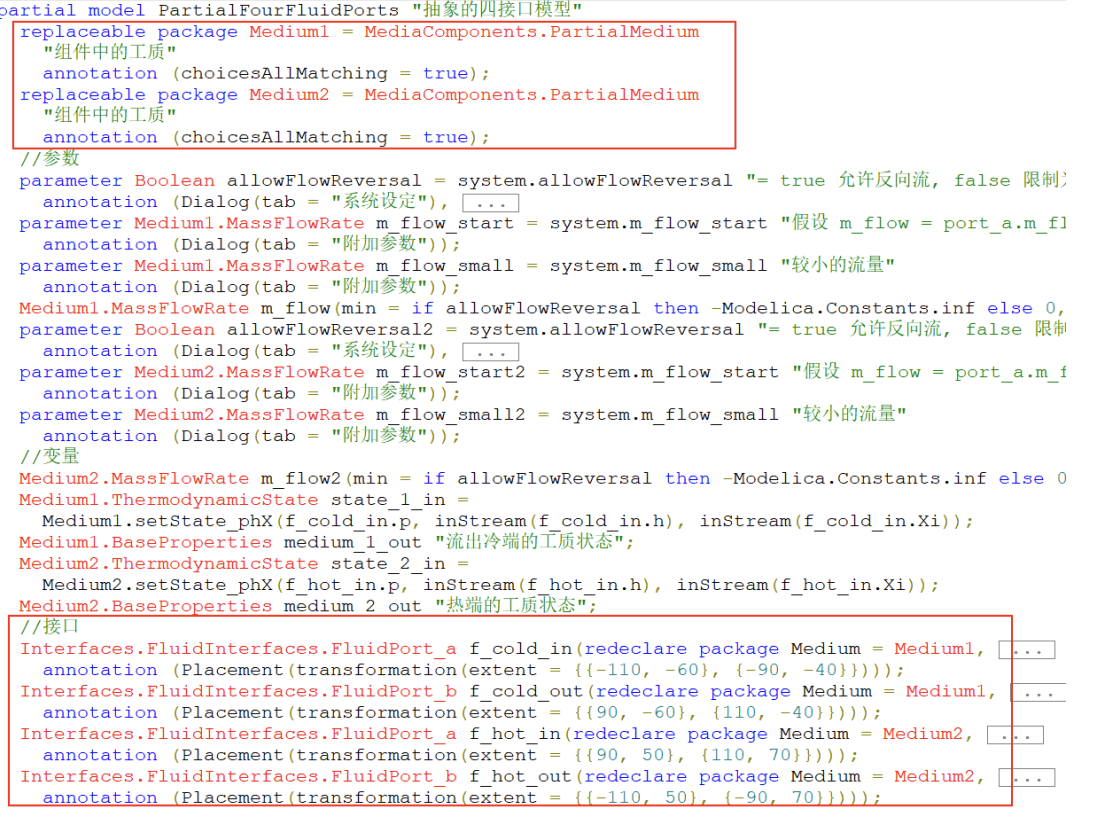

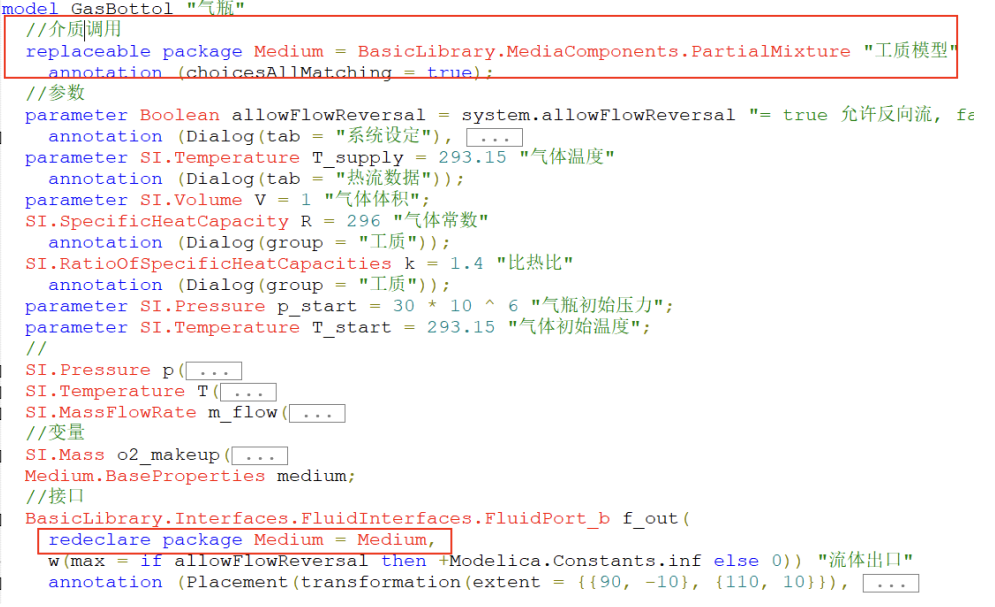

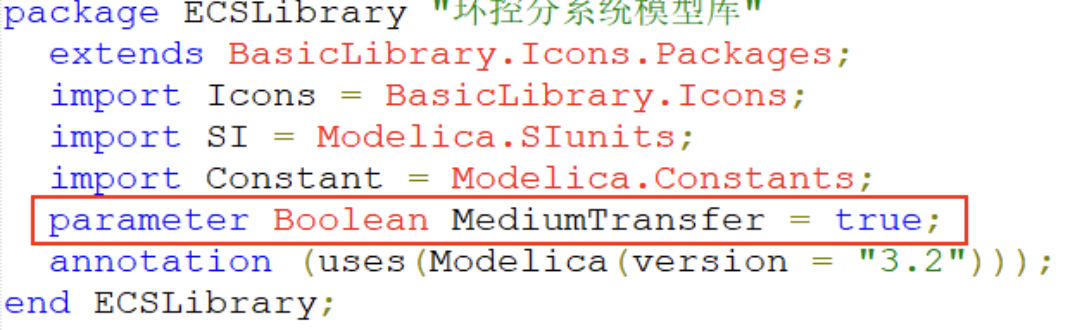

您好，可以参考以下语法实现
