测定相对角位移
一般问题
发布于 2026-04-02 14:37:07
查看 7过去87天

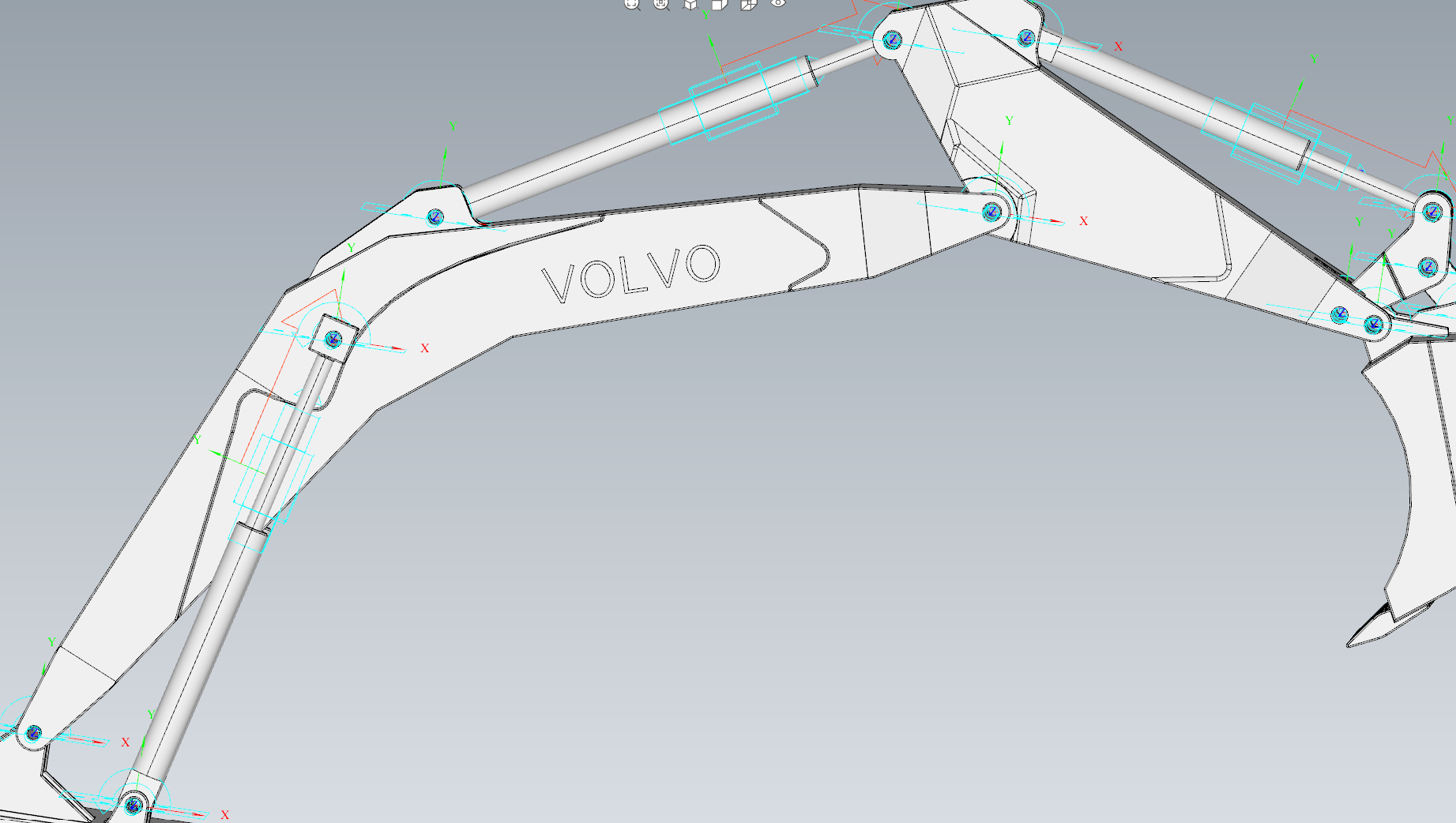

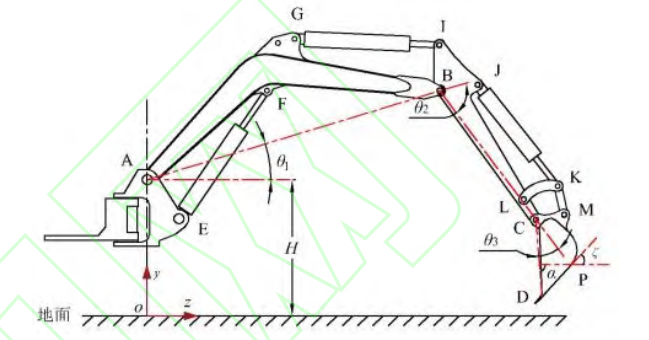

如图，我想用传感器测量AB与BC之间的夹角的角位移，用相对传感器怎么测量，还有其他办法吗
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
如图，我想用传感器测量AB与BC之间的夹角的角位移，用相对传感器怎么测量，还有其他办法吗

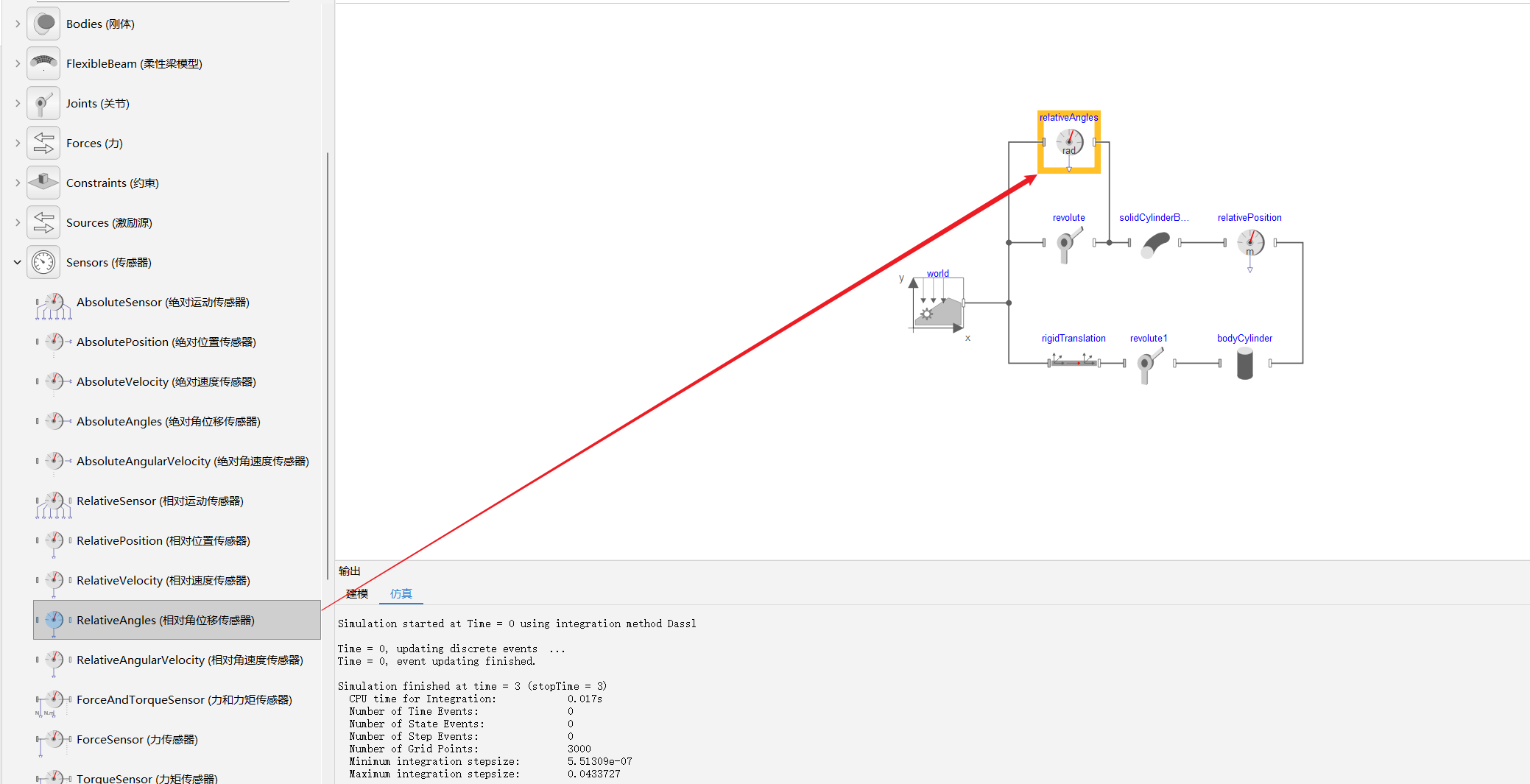

您好，可以直接使用相对角位移传感器（TYMultibody.Sensors.RelativeAngles）连接在对应的转动副上即可测量两个杆件的相对角位移，如下图所示。
