微电网搭建仿真问题
一般问题
发布于 2026-04-04 12:07:38
查看 20过去85天
![Description]

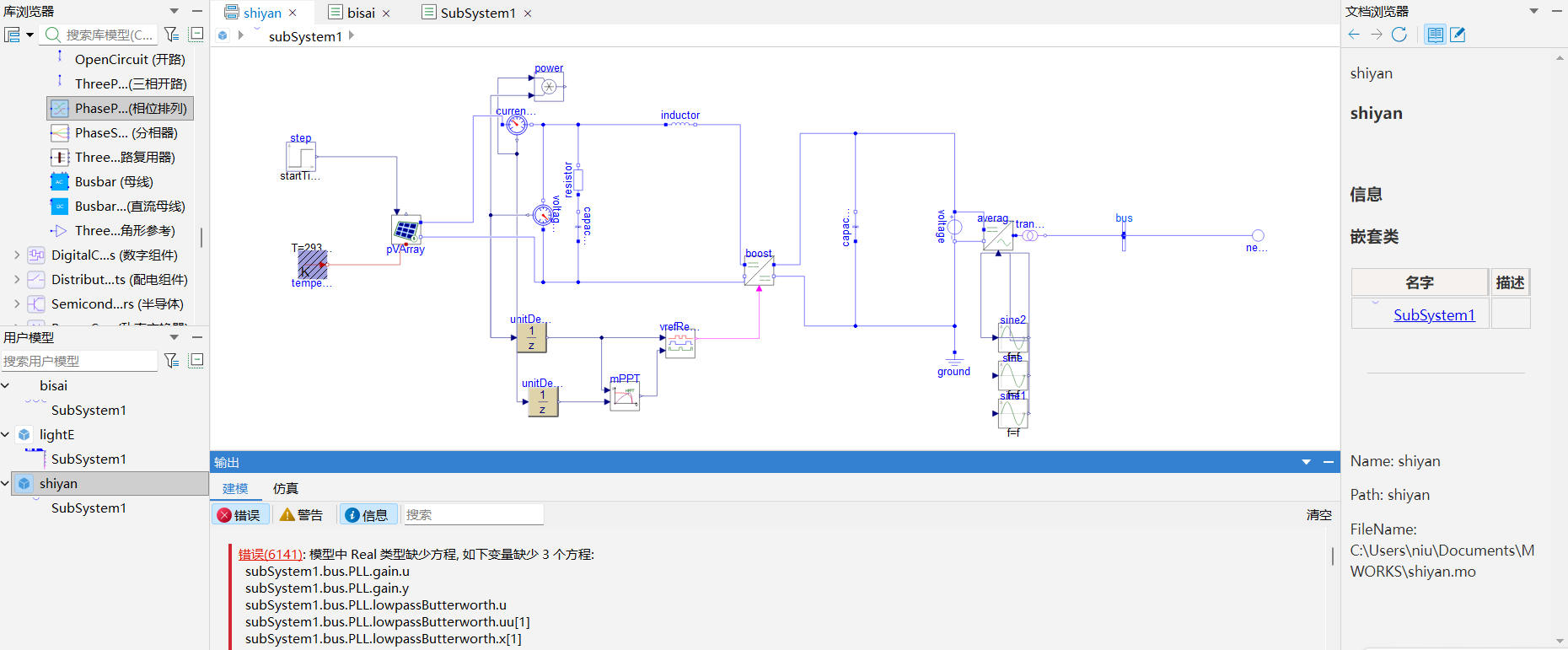

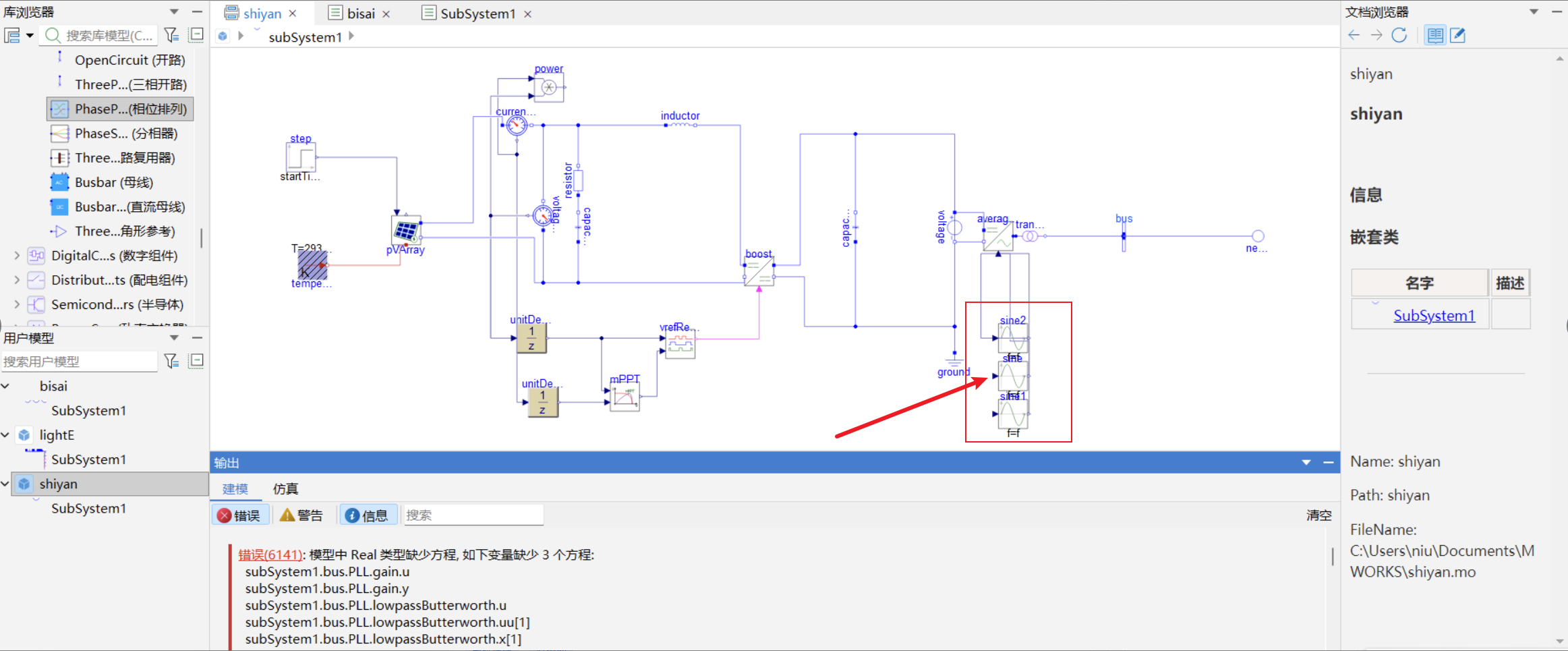

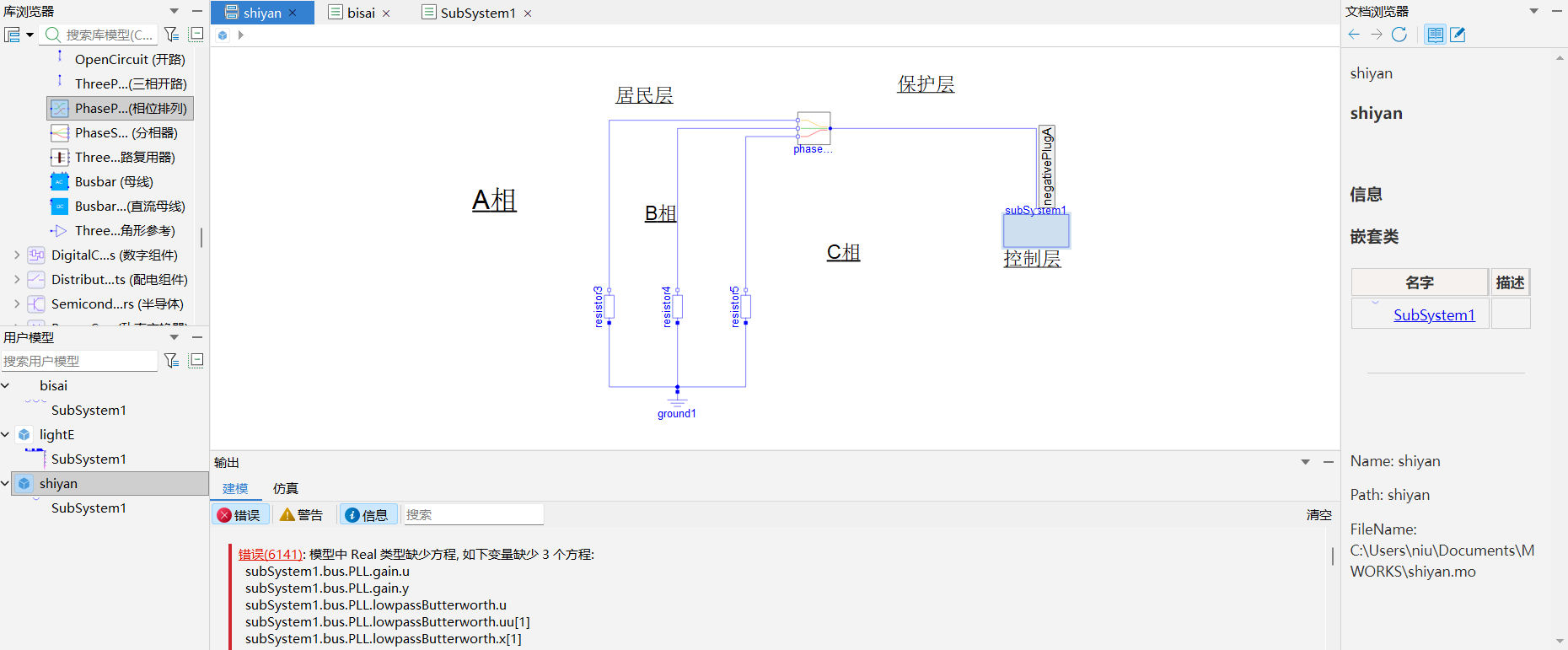

一直报错说缺少方程，我不知道是三相逆变器问题还是boost的问题
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(14kb) ![Description]一直报错说缺少方程，我不知道是三相逆变器问题还是boost的问题

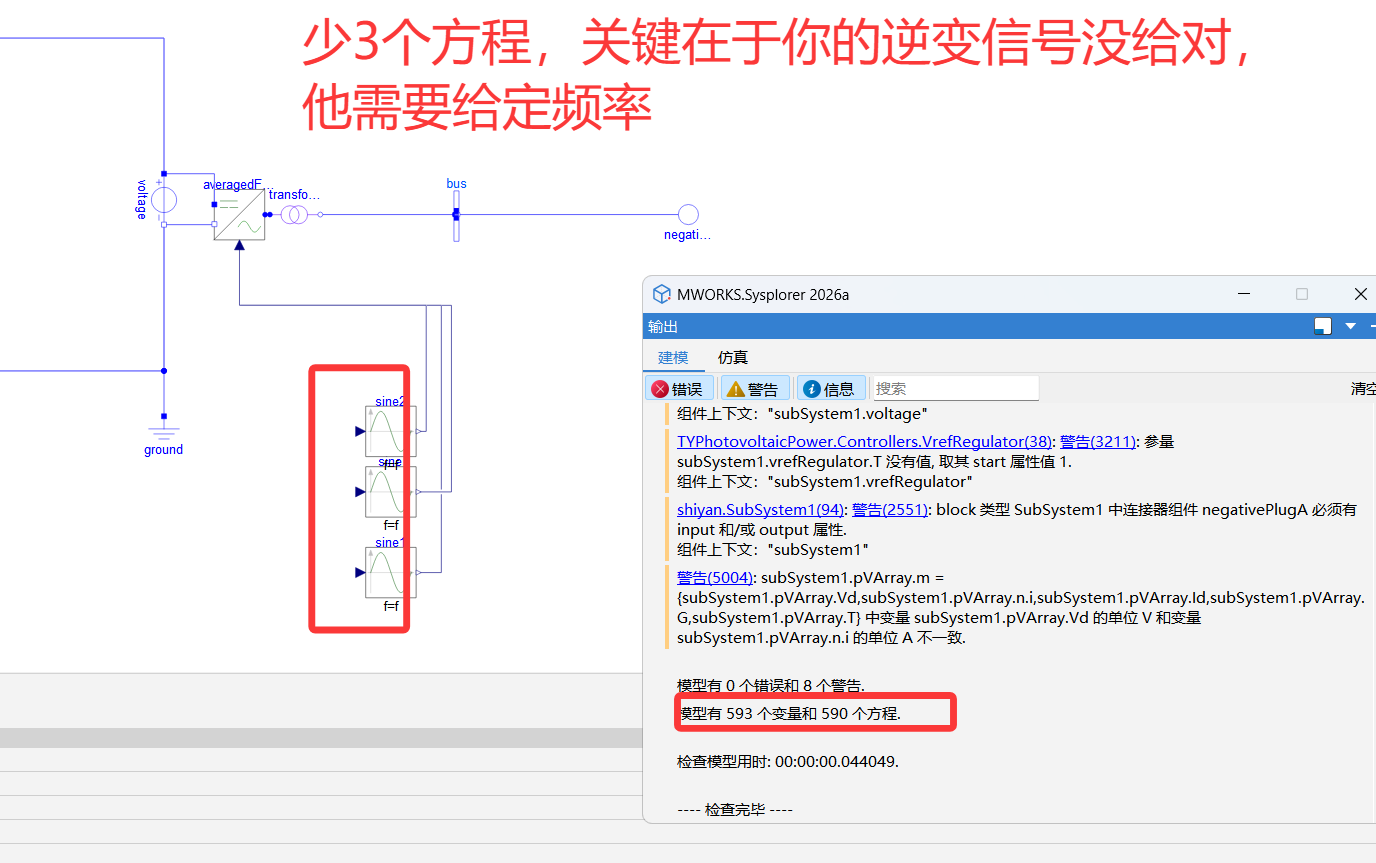

1 个附件(14kb) 你好，模型显示缺方程，参数没有给全，您可以给全以后再仿真试下。
Modelica.Blocks.Sources.Sine

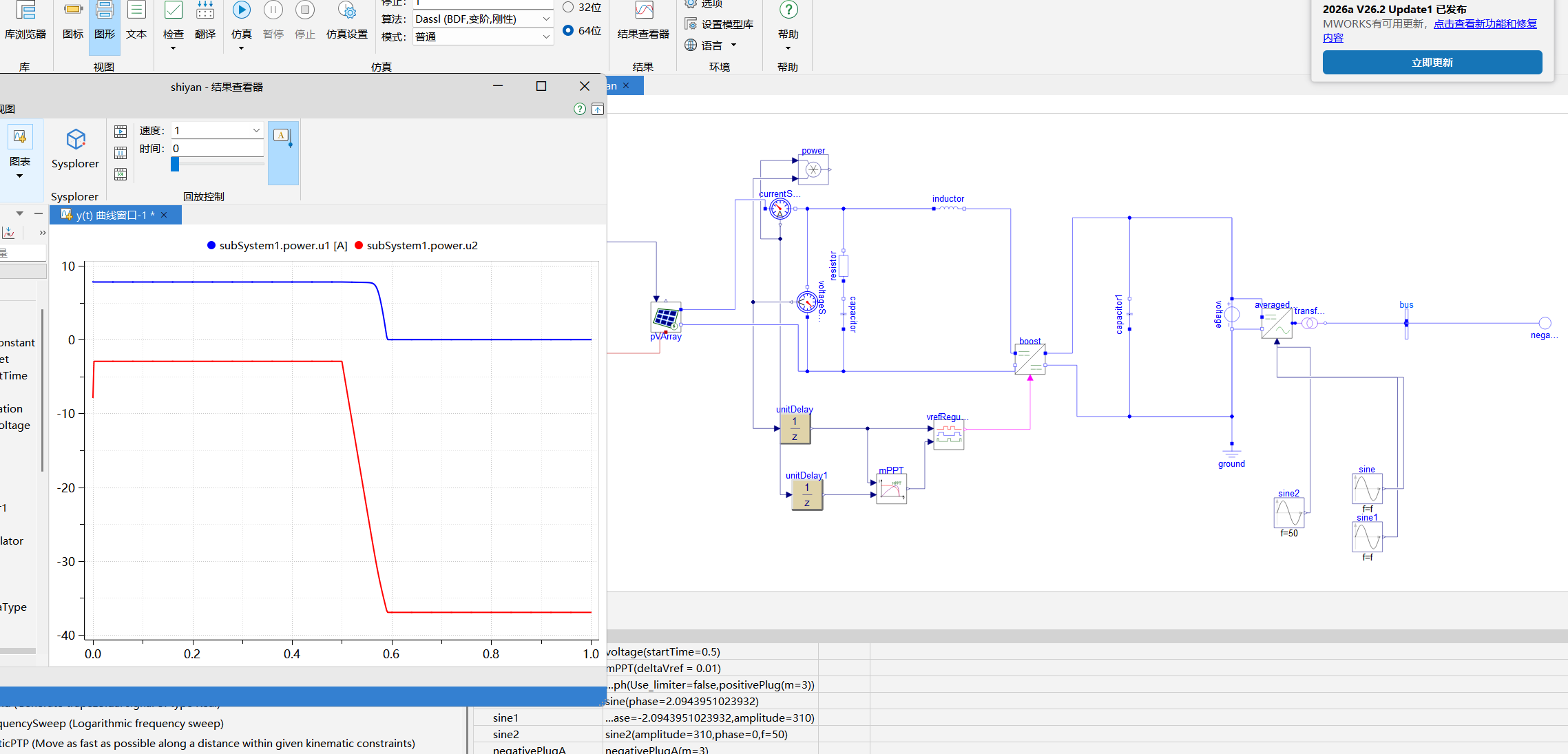

sin换一个，你之前用的需要输入信号
