在建挖掘机履带的过程中，出现了一些错误，但是不知道是什么原因造成的。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(25087kb) 在建挖掘机履带的过程中，出现了一些错误，但是不知道是什么原因造成的。
1 个附件(25087kb) 您好，具体什么错误，什么问题呢？可以将报错和问题发出来。我们定位一下，也可以点击右下角咨询客服。

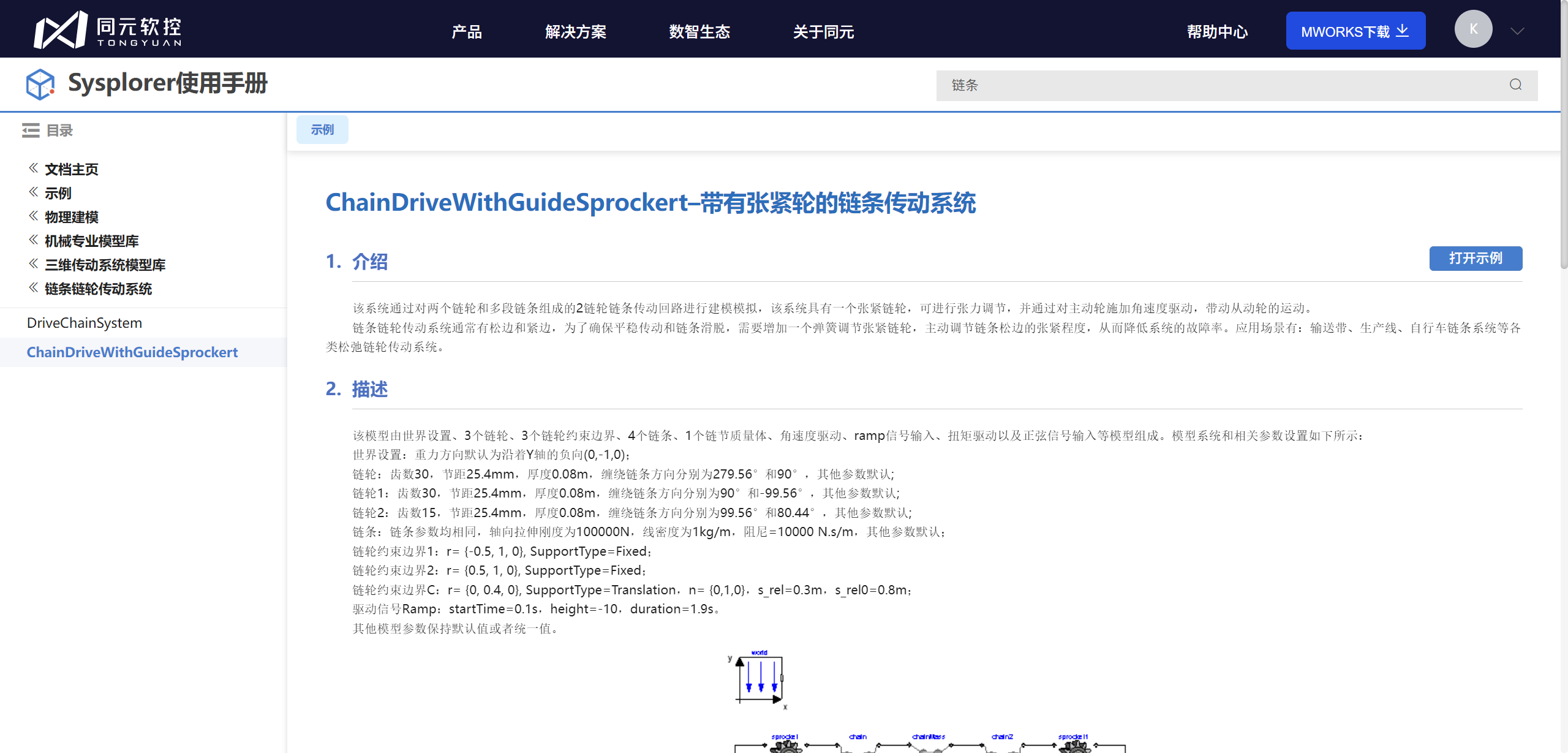

您好，您目前建立的 三维模型较复杂，可以对履带和链轮之间的运动进行简化，可以参考Sysplorer中自带的链条传动系统案例，所使用的模型库为三维传动系统模型库。
