模型试验设计工具箱的问题
一般问题
发布于 2026-05-26 12:24:11
查看 21过去9天

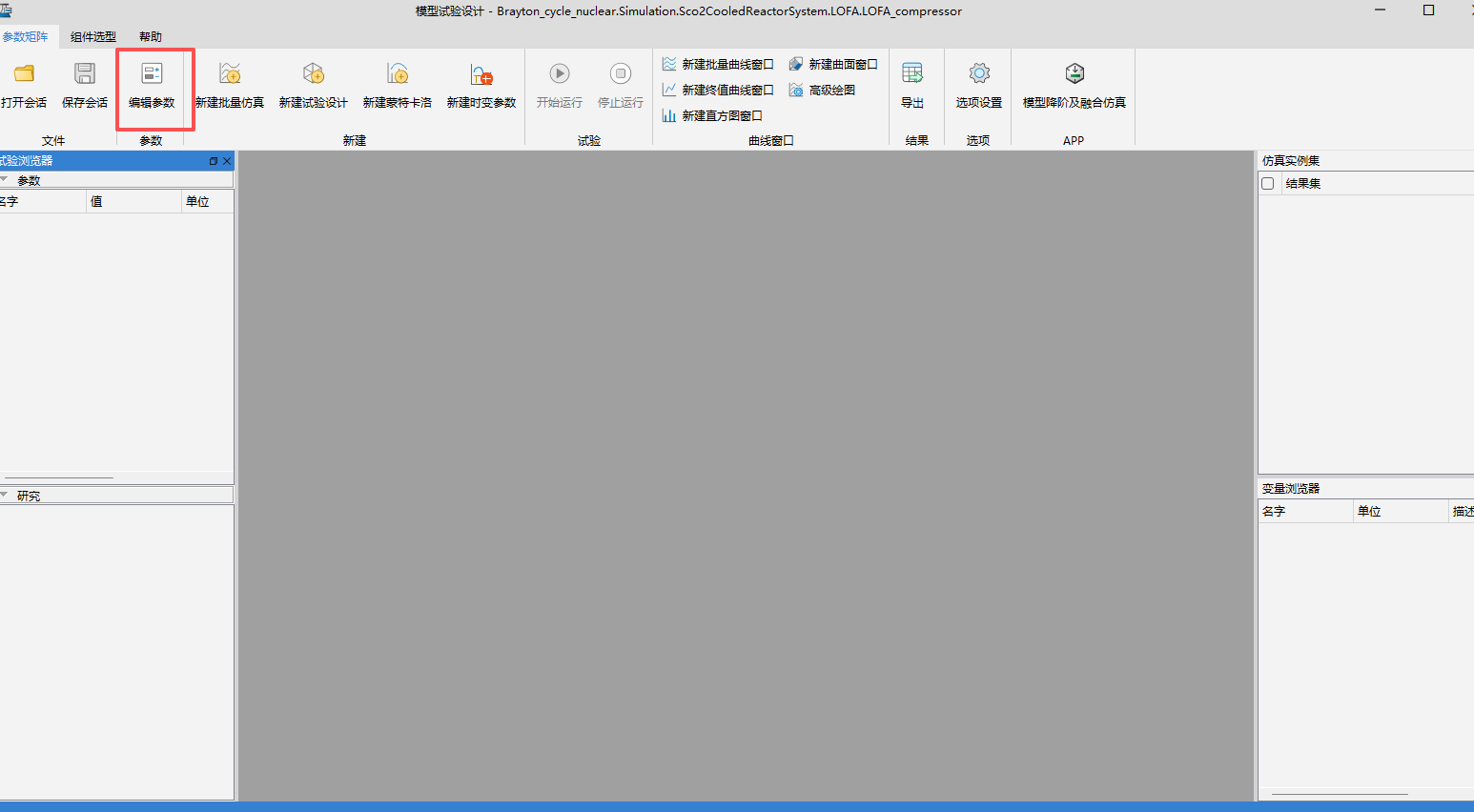

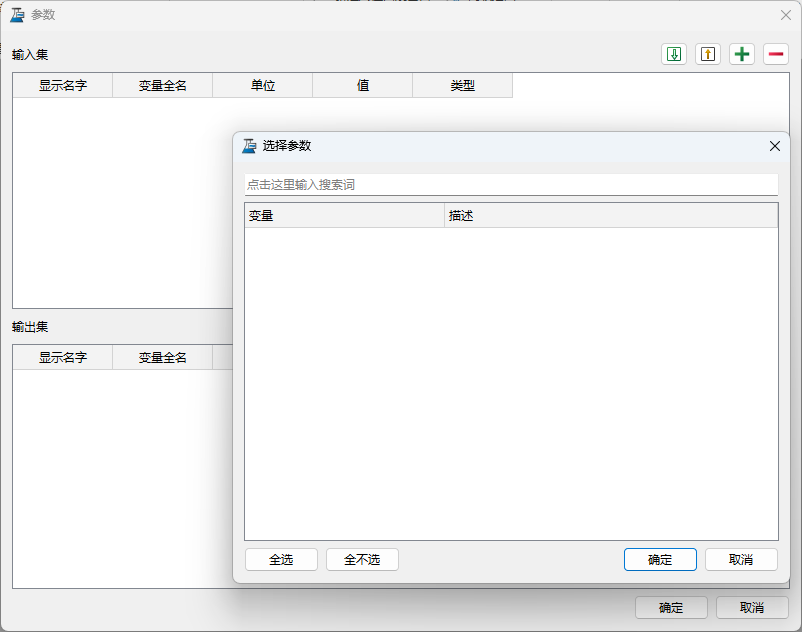

模型实验设计工具箱在更新后，对可变变量的识别是否有一定的问题。更新前可以正常识别的变量，在更新后仅能识别为输出值，在输入集中无法找到。此外，模型实验设计工具箱是否可以保存仿真完成后的数据，某一次更新后好像就完成批量仿真后就没办法板寸仿真结果，关闭模型实验设计工具箱后再打开，就无法直接批量读入数据进行处理，只能从结果查看器中逐一手动打开。如图中，在顶层模型中有三个变量，但是进入工具箱后无法找到这三个变量
所属专栏：Syslab基础平台
产品信息：Sysplorer系统建模仿真环境
