仿真初始阶段仿真失败，单步计算失败，如何解决？
一般问题
发布于 2026-07-06 09:28:50
查看 11过去4天
附件模型为Sysplorer示例库中的模型，仅做微小调整后(见模型文件），仿真初始阶段仿真失败，单步计算失败，如何解决？
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(17kb) 附件模型为Sysplorer示例库中的模型，仅做微小调整后(见模型文件），仿真初始阶段仿真失败，单步计算失败，如何解决？
1 个附件(17kb) 您好，建议您在示例模型中逐个添加组件，这样直接添加多个组件不便于定位具体原因。
您好，模型需要做如下修改，修改之后即可正常仿真

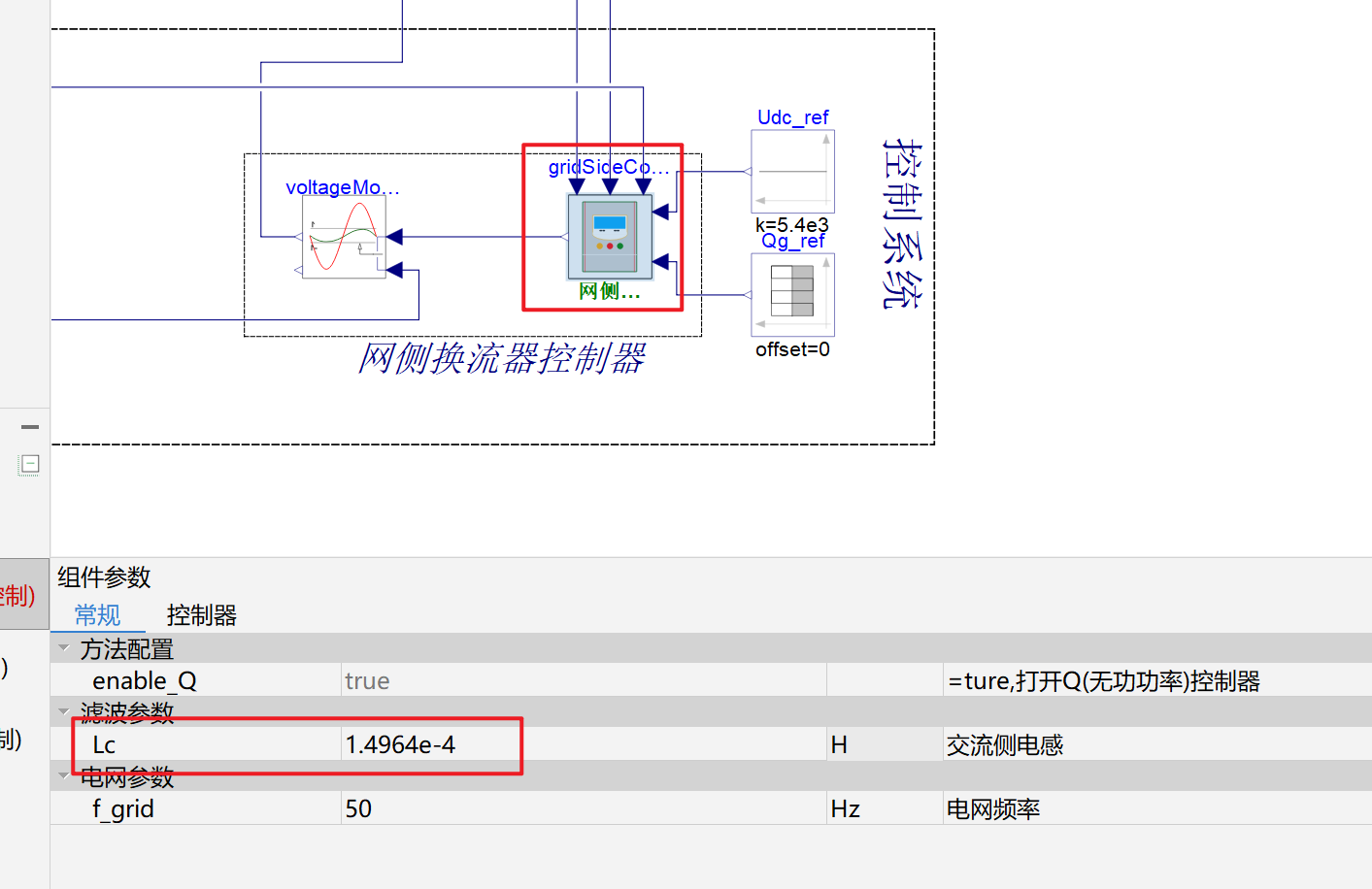

1.网侧控制器滤波参数设置和电感的值一致

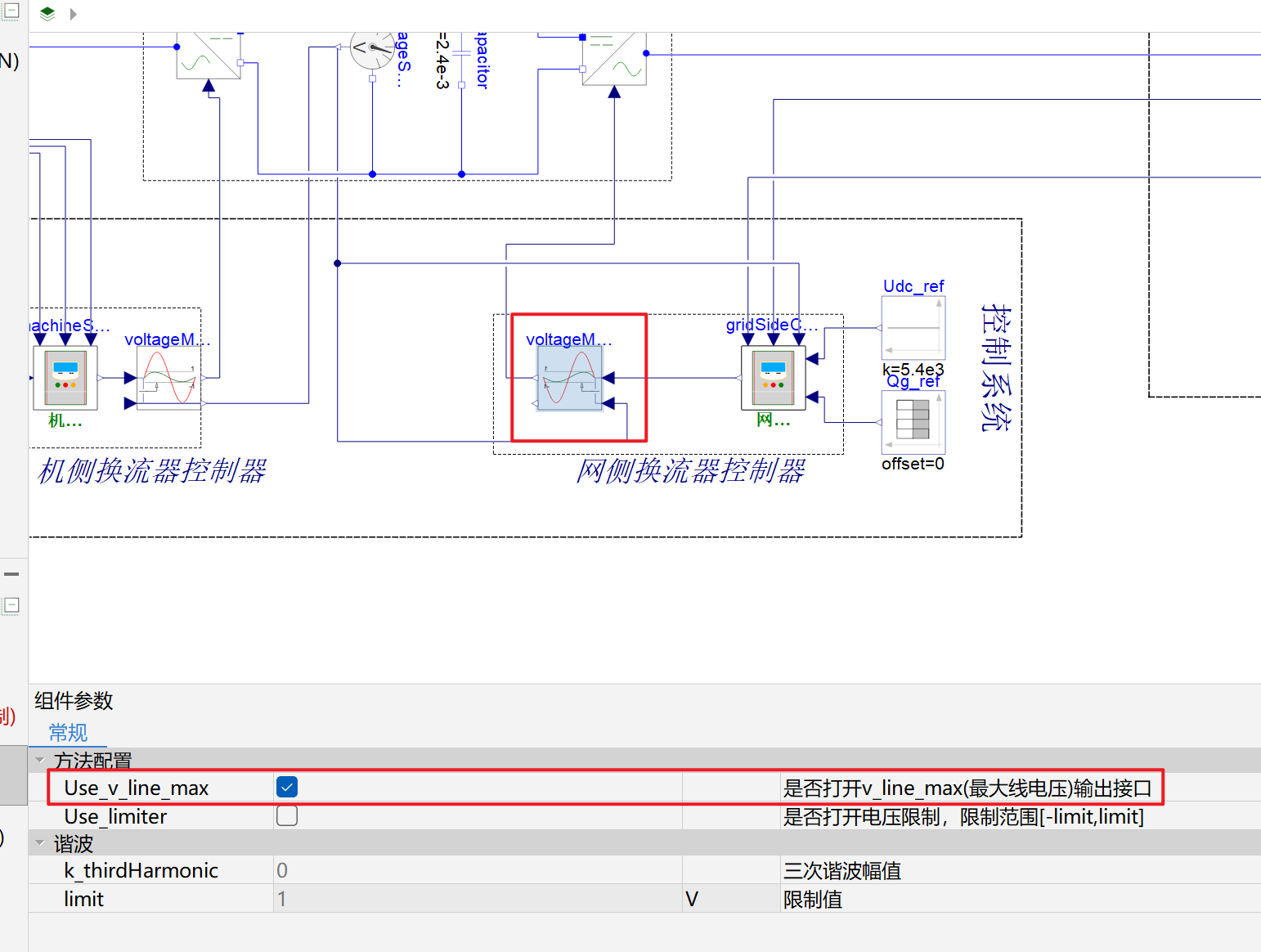

2.打开电压调制的限压

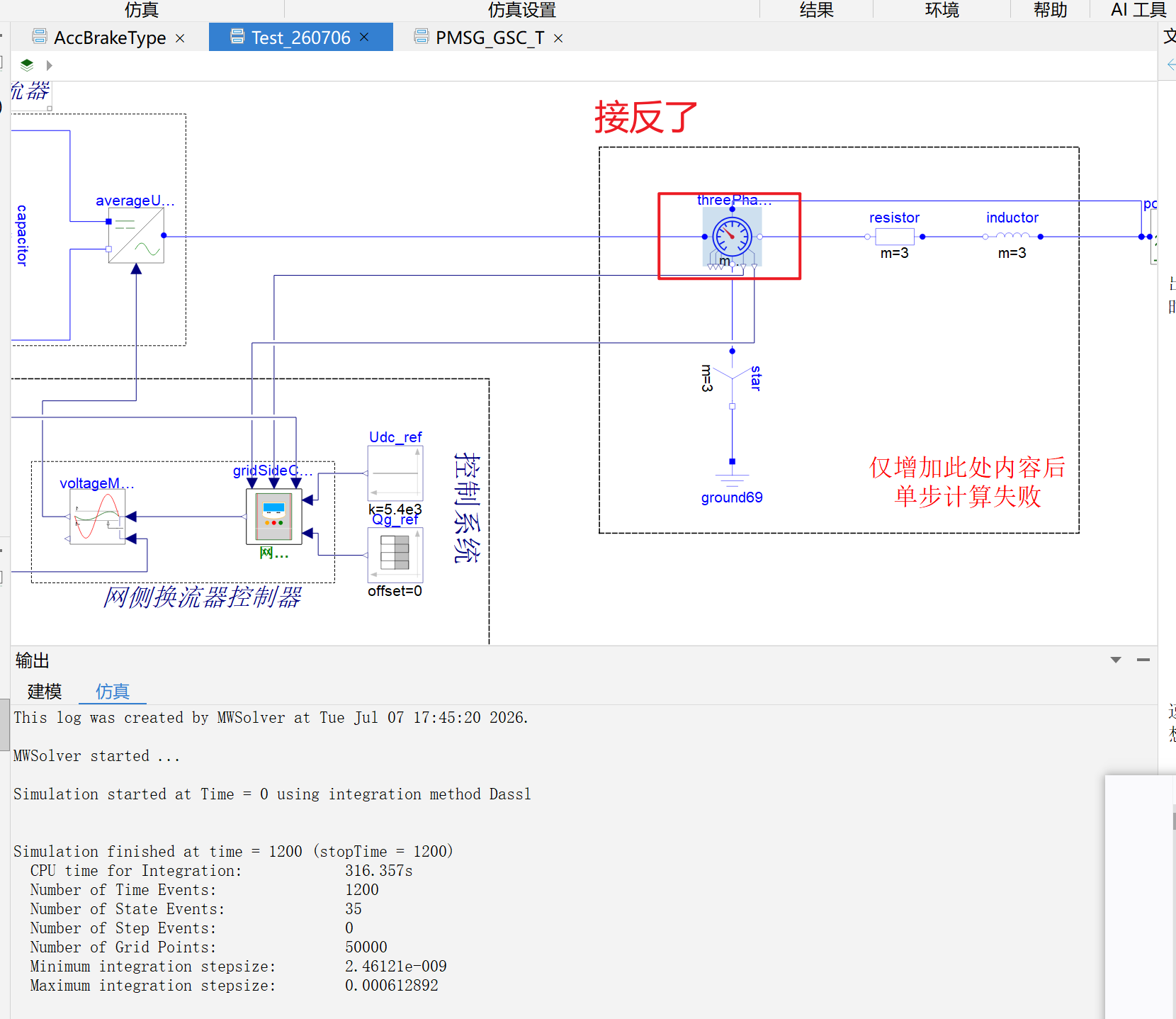

3.调整三相多用传感器的接线方向
