机器人控制系统建模与仿真（基于MWORKS）这本书里的二连杆机械臂模型出错一般问题
发布于 2026-07-23 10:54:45
查看 13过去7天

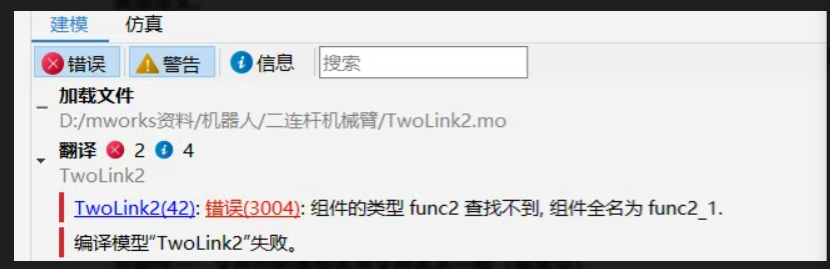

机器人控制系统建模与仿真（基于MWORKS）这本书里的二连杆机械臂模型，导入后运行提示错误，如下：twolink2:组件的类型func2查找不到，组件全名为func2_1.应该是这一行：
func2 func2_1(endX=0.3,endY=0.7)
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
2 个附件(6kb)
