动滑轮模拟问题一般问题
发布于 2026-07-23 16:30:37
查看 14过去7天
根据TYDriveline3D中的FloatSheave-动滑轮模拟实例，想将驱动滑轮旋转90°。只将一个滑轮和FixedPreset 固定约束边界改变了位置，改变了一个滑轮的旋转方向，编译出错，方程有冗余，并缺少一个方程
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
1 个附件(6kb) 根据TYDriveline3D中的FloatSheave-动滑轮模拟实例，想将驱动滑轮旋转90°。只将一个滑轮和FixedPreset 固定约束边界改变了位置，改变了一个滑轮的旋转方向，编译出错，方程有冗余，并缺少一个方程

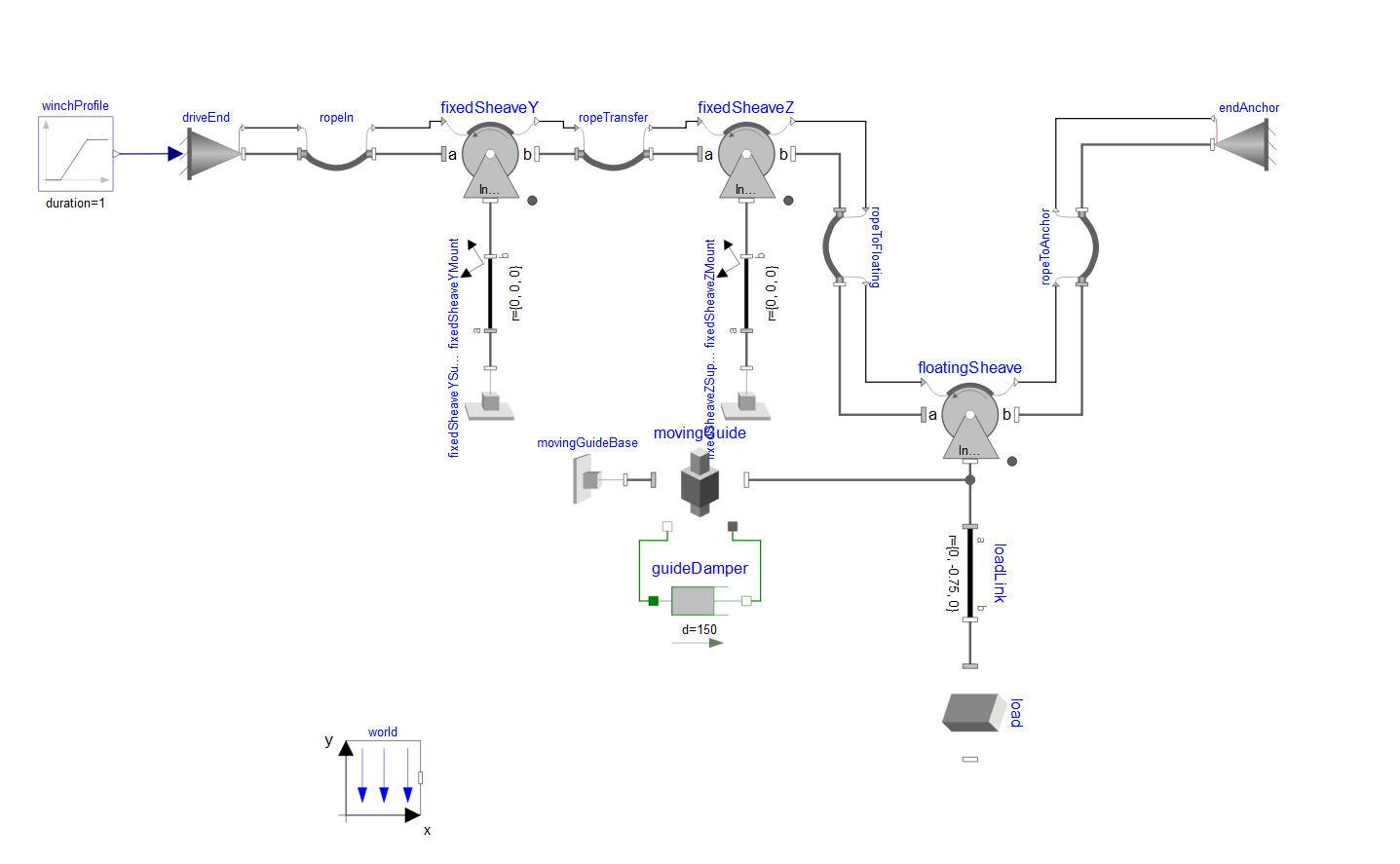

1 个附件(6kb) 您好，当前不支持直接换方向，需要考虑皮带能否接触的真实性问题，需要通过切换转轴的参考坐标系来改变转轴方向。修改后的模型如下图所示，可做参考。
