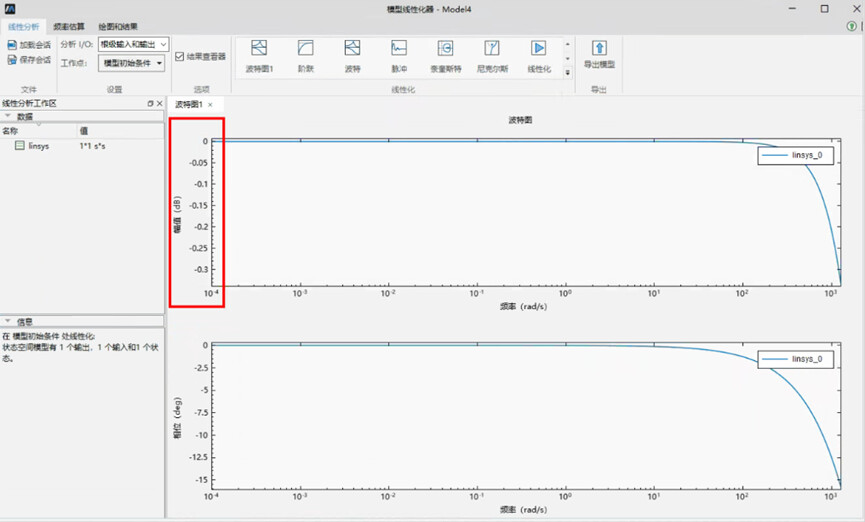

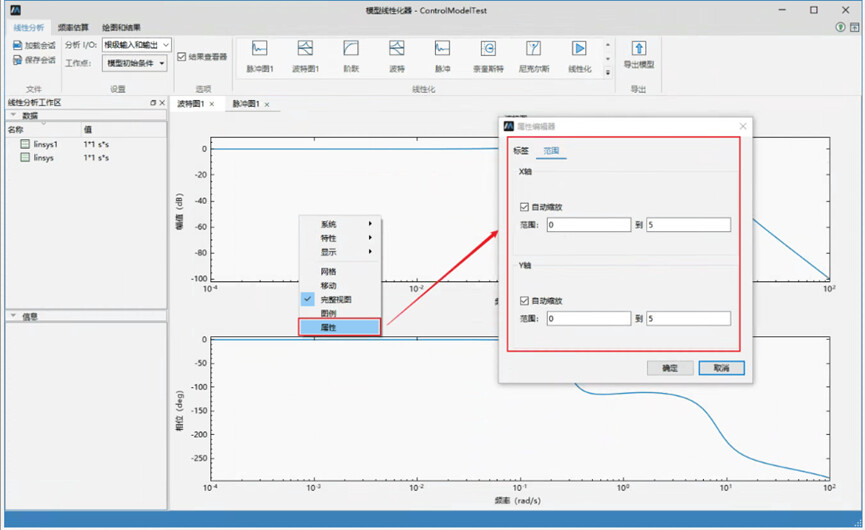

Sysplorer如何修改模型线性化器中波特图的坐标轴范围技术分享Tongyuan发布于 2024-09-11 20:31:53查看 25过去629天一、问题现象 模型线性化器中的波特图，如何修改横纵坐标范围? 二、解决方法 / 步骤 右击波特图，点击“属性”，即可在窗口中调整坐标轴范围。 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模科学计算 写回答 关注问题 点赞 0 踩 0 收藏 0
