Syslab与Sysplorer双向融合时出现仿真失败
技术分享
发布于 2024-09-11 20:35:36
查看 4过去629天
一、问题现象
Syslab 与 Sysplorer 双向融合时出现仿真失败
二、解决方法 / 步骤
1.检查 Sysplorer 是否有 License，若没有 License 将导致仿真报错。

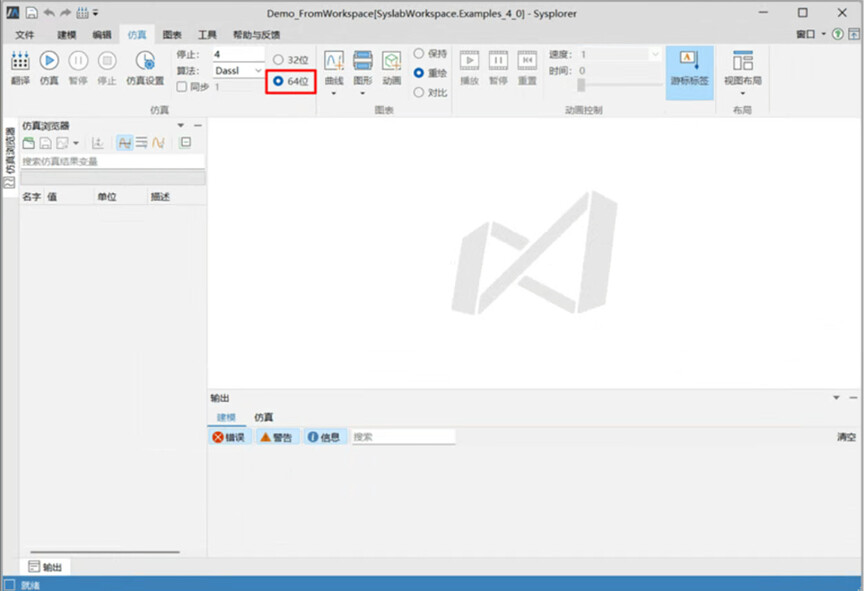

2.Syslab 与 Sysplorer 双向融合时，只能使用六十四位编译器，如下图
所属专栏：Syslab基础平台
产品信息：Sysplorer系统建模仿真环境
Syslab 与 Sysplorer 双向融合时出现仿真失败
1.检查 Sysplorer 是否有 License，若没有 License 将导致仿真报错。
2.Syslab 与 Sysplorer 双向融合时，只能使用六十四位编译器，如下图
