双向集成时如何读取Syslab中数据作为Sysplorer插值表的输入
技术分享
发布于 2024-12-14 14:46:08
查看 8过去535天

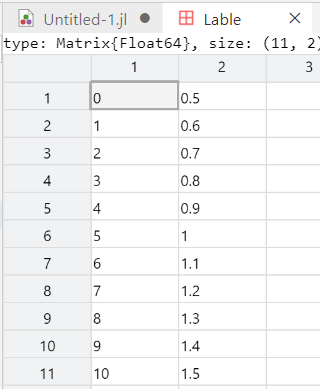

假设Syslab中有一组数据名为Lable，我们想以它作为在Sysplorer中仿真时的插值表给系统输入：

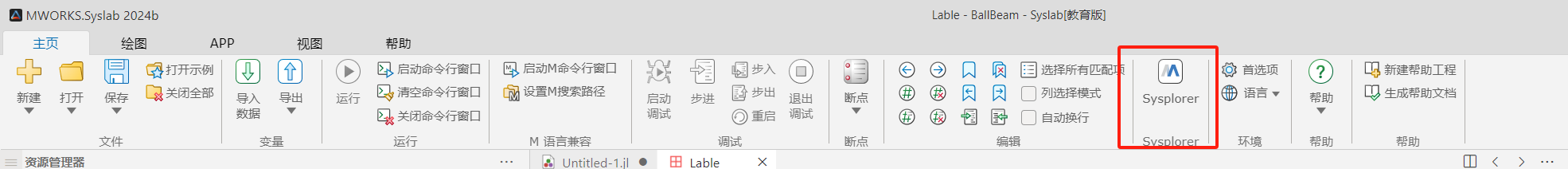

在Syslab中启动Sysplorer软件，

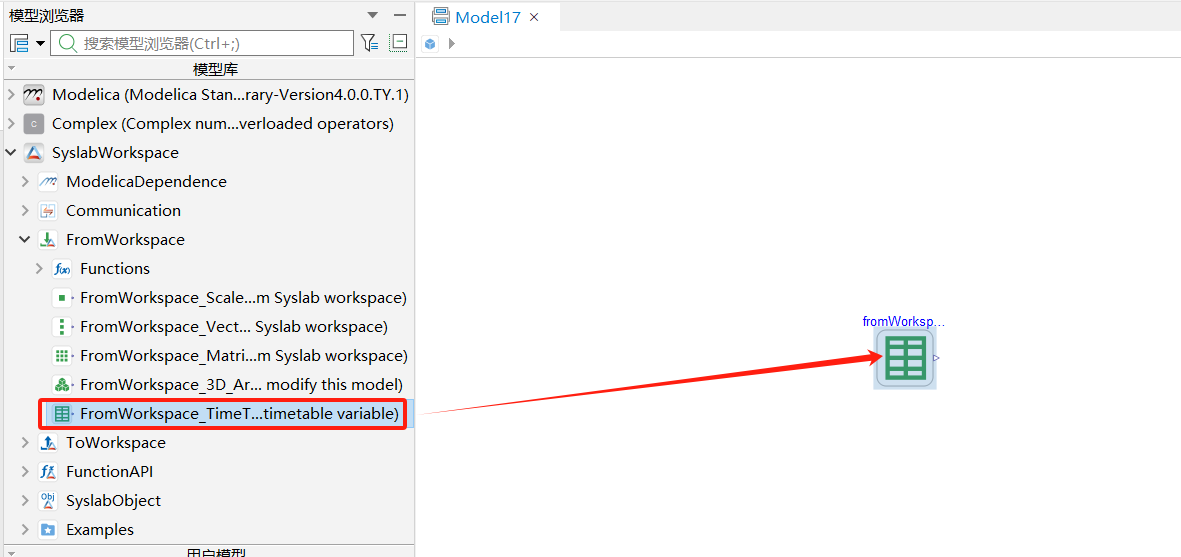

在模型中拖入FromWorkspace_TimeTable模块

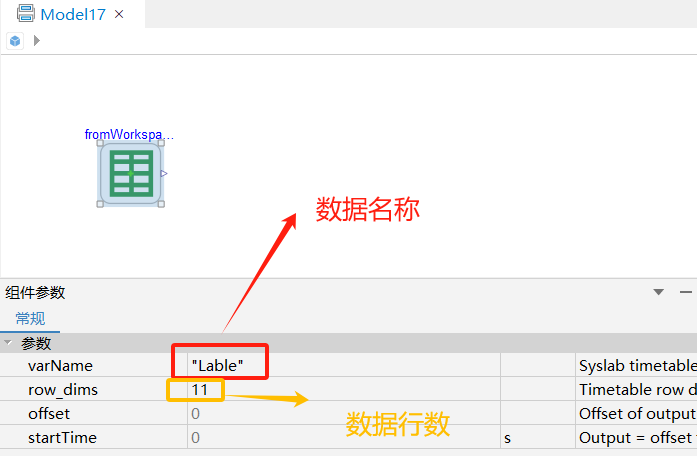

并按照下图规则修改参数，其中"row_dims"要和Syslab中数据的行数相匹配

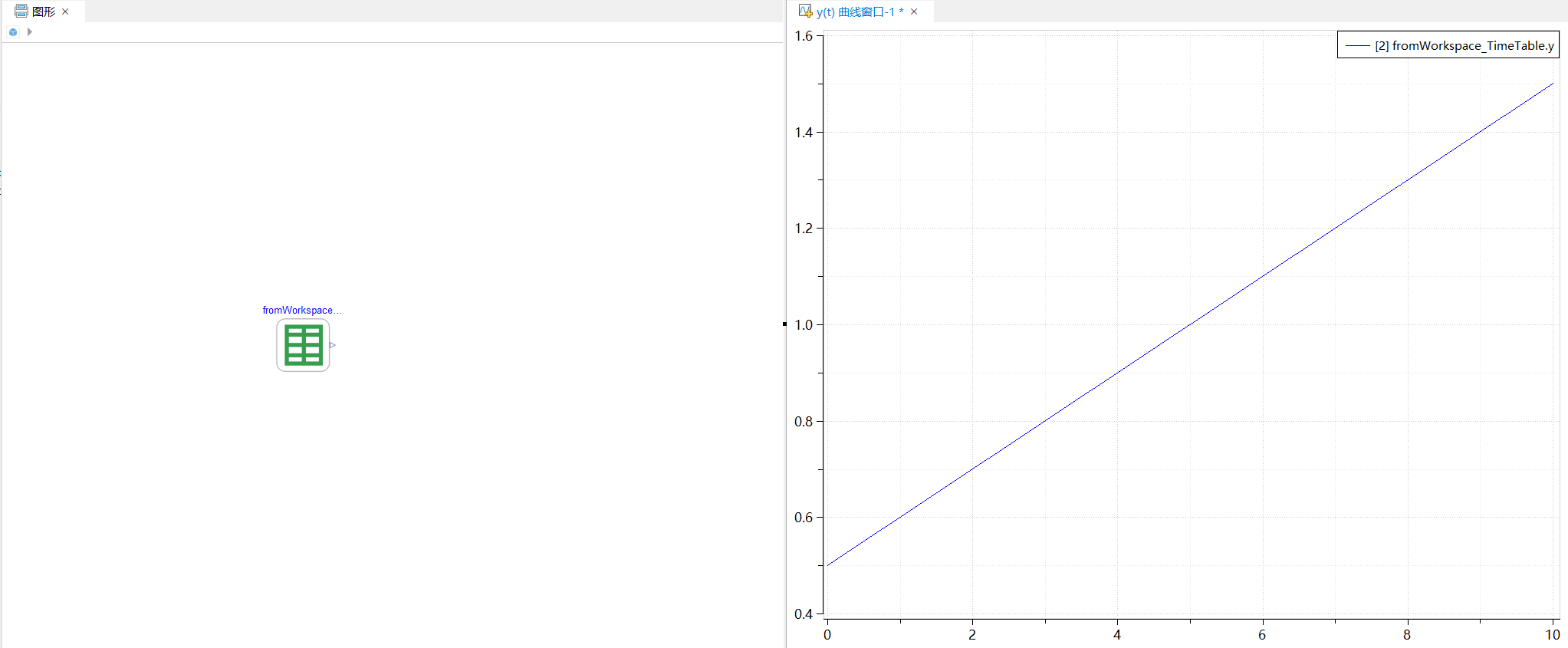

在Sysplorer中的仿真结果为：
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
