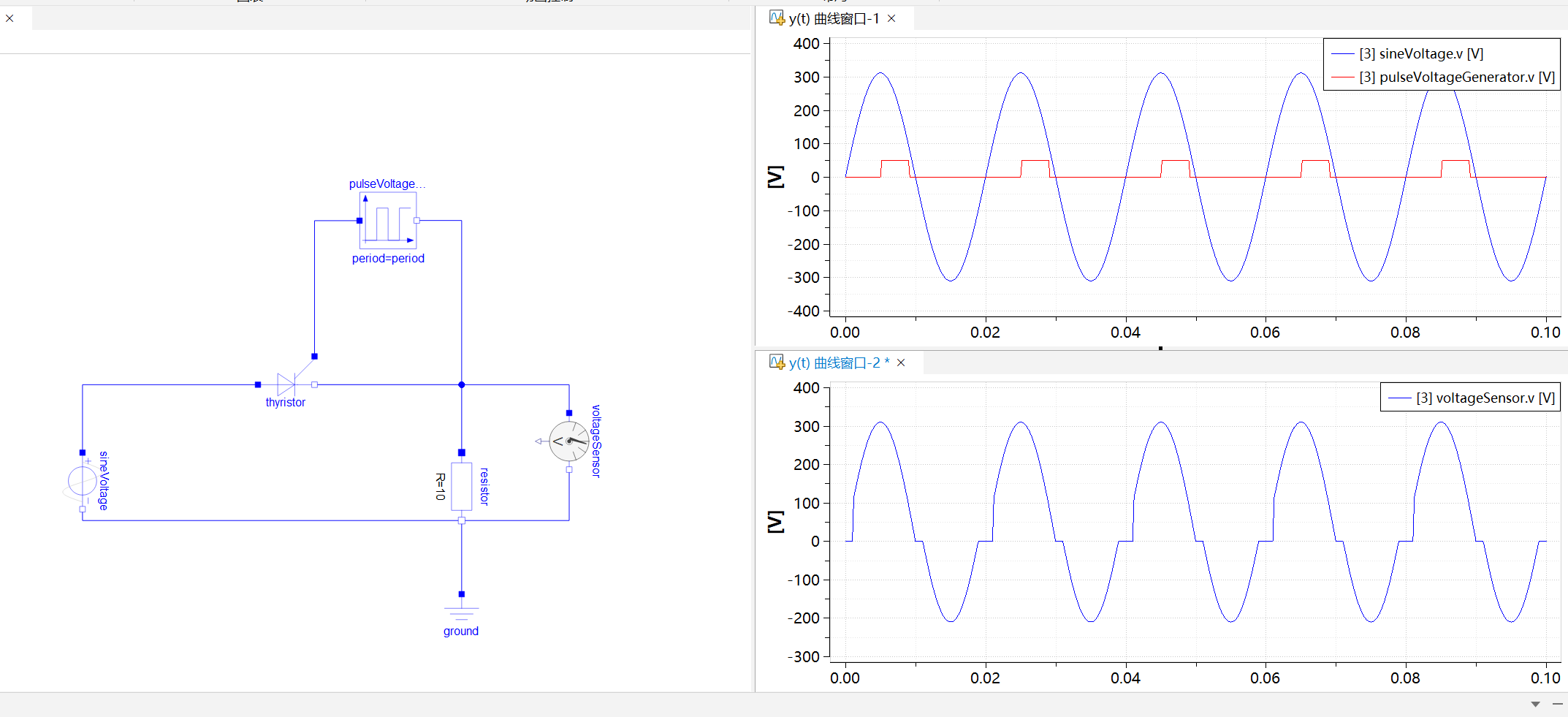

单相斩波电路输出结果错误调试方法技术分享MoHub发布于 2024-12-14 14:46:48查看 11过去535天单相斩波电路是一种常见简单整流电路，采用晶闸管构建的单相斩波电路可能由于参数调试出现整理波形不对的问题。 如上述图片中构建的单相斩波电路即为晶闸管中反向击穿电压没有设置，反向击穿电压小于电源有效电源幅值导致，可以通过设置晶闸管反向击穿电压的方式改变进行系统调试，具体结果如下： 所属专栏：模型库产品信息：MoHub系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
MoHub

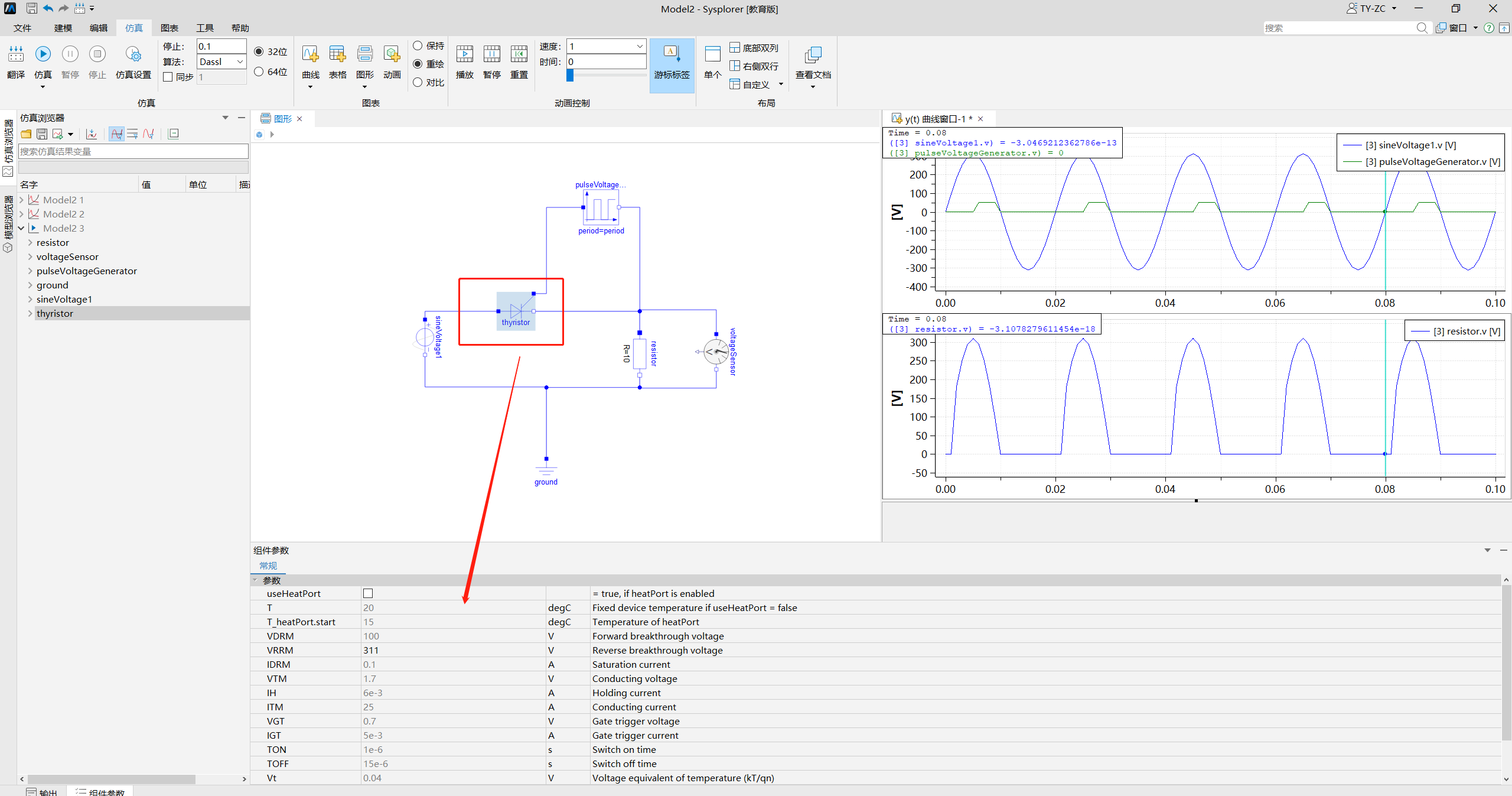

如上述图片中构建的单相斩波电路即为晶闸管中反向击穿电压没有设置，反向击穿电压小于电源有效电源幅值导致，可以通过设置晶闸管反向击穿电压的方式改变进行系统调试，具体结果如下：
