Sysplorer构建模型仿真，scope（示波器）组件模型在哪里？如何查看仿真结果？
技术分享
发布于 2024-12-14 14:48:11
查看 20过去535天

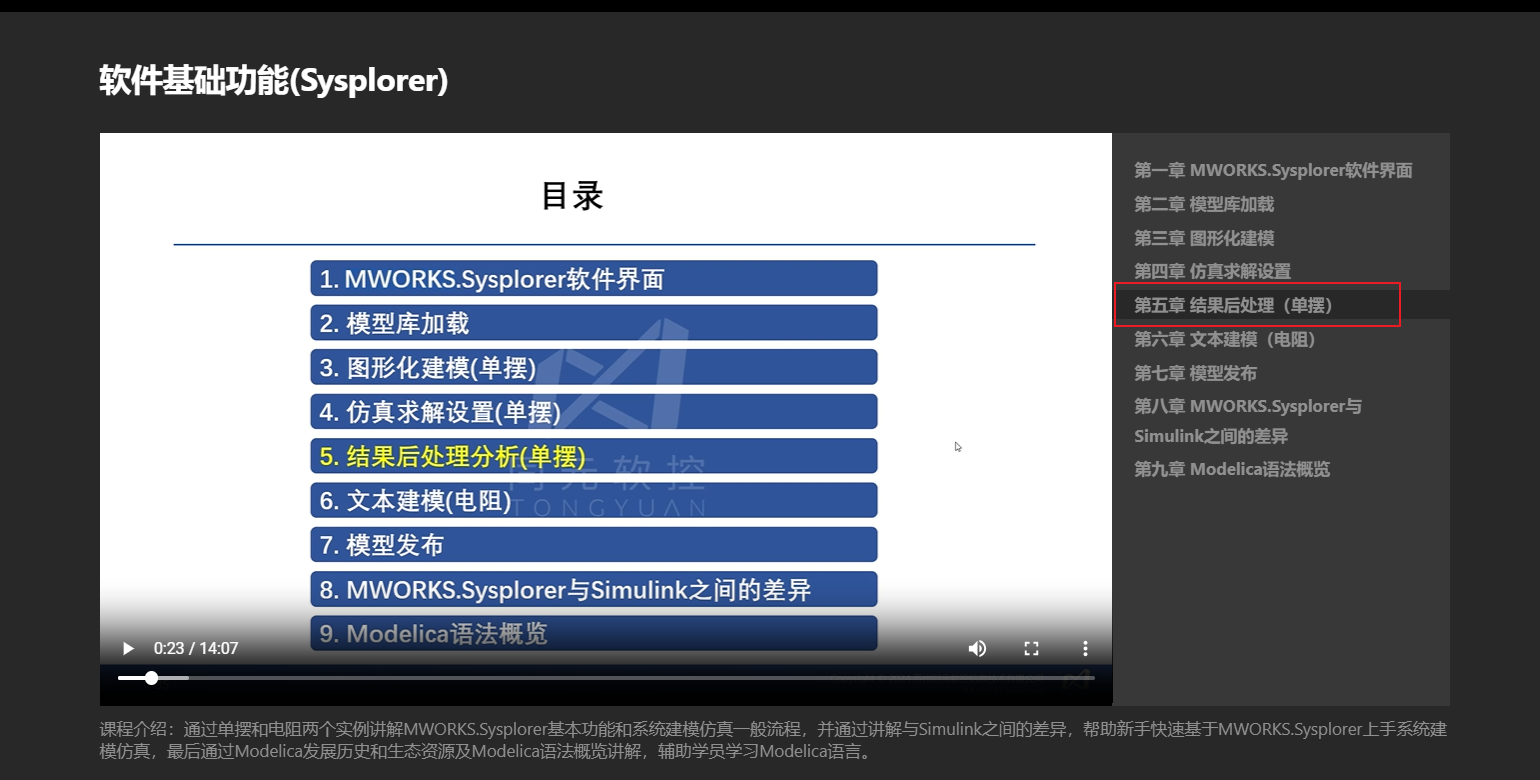

使用Sysplorer进行仿真建模，是不需要和MATLAB一样添加scope组件的，仿真结束以后，会直接跳转到仿真结果界面，可以直接在仿真浏览器查看仿真结果，具体方式可以上同元官网的基础培训视频学习：https://www.tongyuan.cc/education/videoPlay?courseId=27
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
