Sysplorer与Sysblock混合建模时出现连接器类型不兼容怎么办
技术分享
发布于 2024-12-18 16:27:05
查看 16过去531天
问题现象

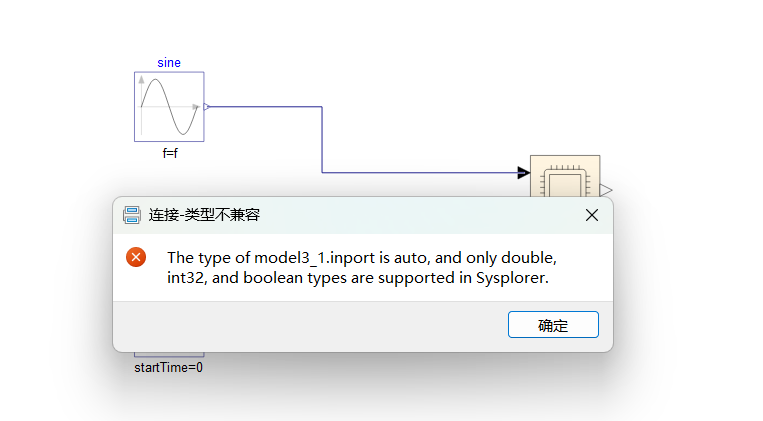

在使用Sysplorer与Sysblock混合建模时出现如下连接器类型不兼容错误怎么处理？
解决方法
根据跟同元软控技术人员沟通，发现当前混合建模是不支持数据类型和维度的继承的。

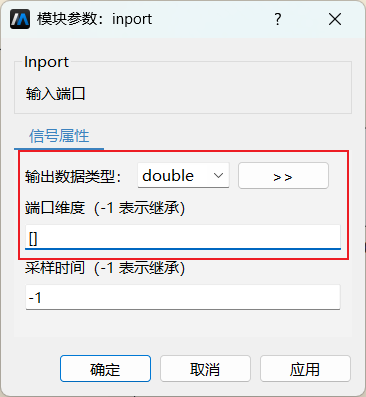

因此需要在Sysblock中设置好输入输出端口的数据类型和维度，才可以实现混合建模。
注：0维设置为[]
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
