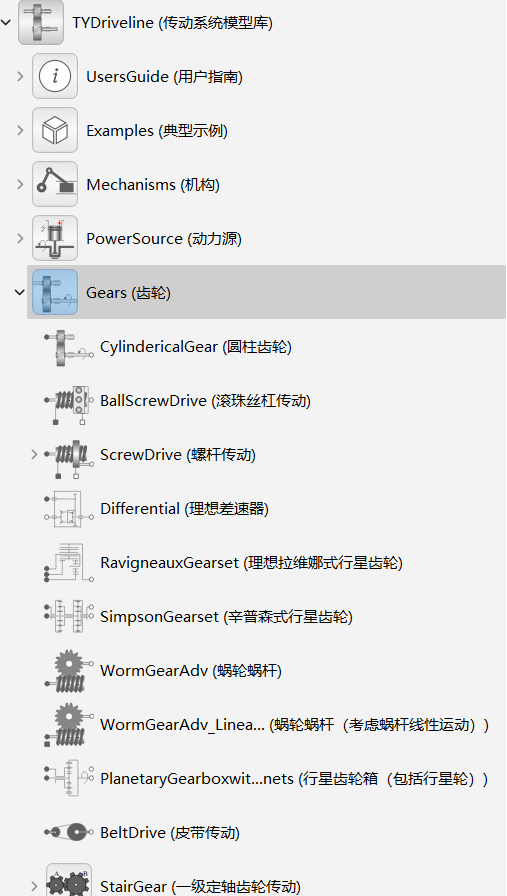

CAD工具导出之后如何添加齿轮副传动？技术分享MoHub发布于 2025-06-24 19:20:03查看 2过去343天可以使用一维传动模型库中的齿轮组件（TYDriveline.Gears），其中包括圆柱齿轮、蜗轮蜗杆等组件，添加连接之后修改相关参数即可，可以参考此课程：链接 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
