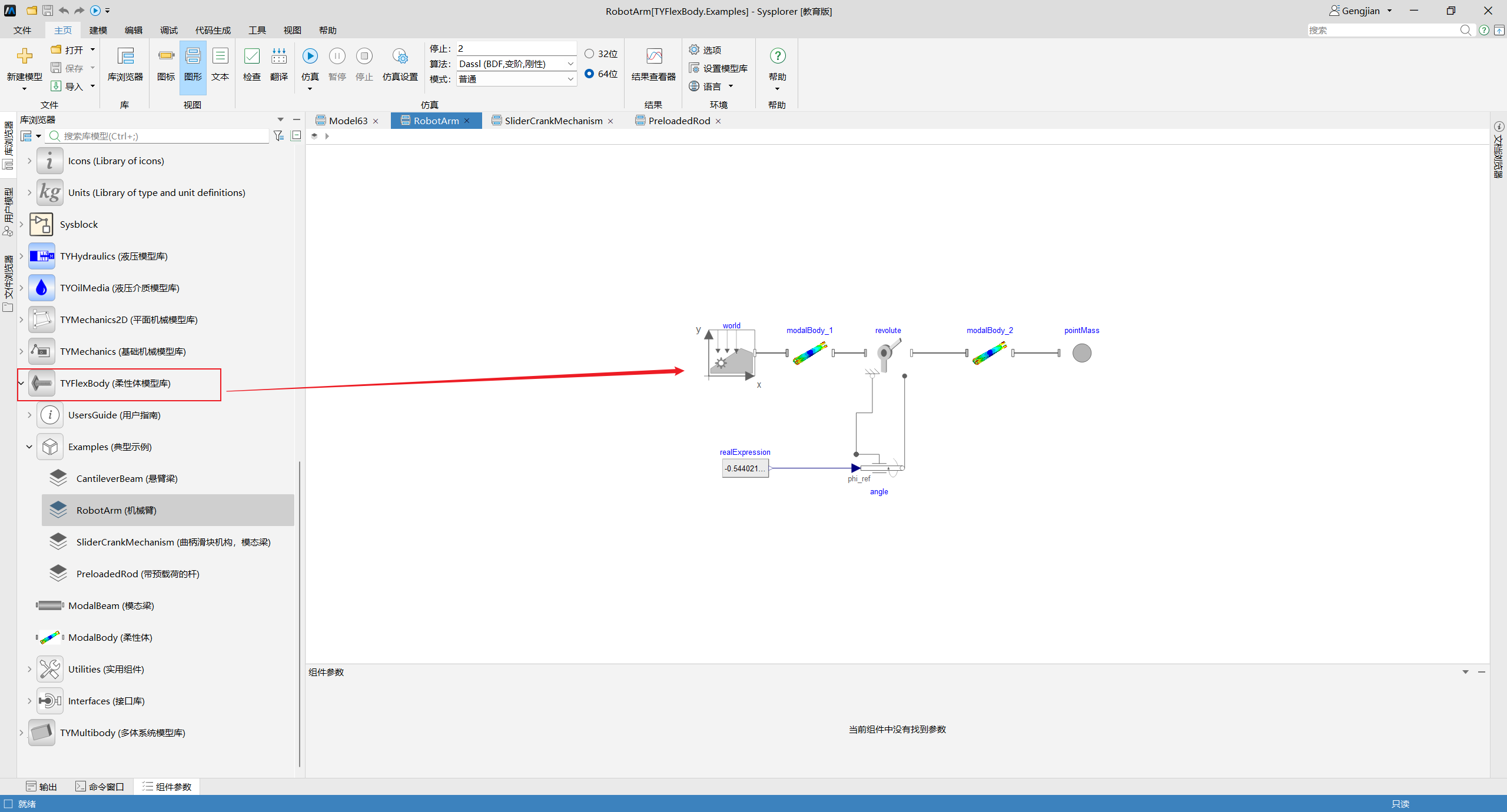

Sysplorer如何生成应力云图？技术分享MoHub发布于 2025-06-25 22:44:55查看 1过去342天MWORKS当前不支持直接生成应力云图，您可以使用柔性体库结合其他有限元软件进行开发，可参考模型库中的示例。 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
