Sysblock中如何读取Syslab工作区数据？
技术分享
发布于 2025-06-25 22:45:03
查看 1过去342天
可以使用fromworkspace和constant读取，其中
1.fromworkspace用于读取矩阵数据，并且会把第一列数据作为时间列
2.constant可以读取向量数据，在设置参数时将其设置为Syslab工作区对应变量名即可。

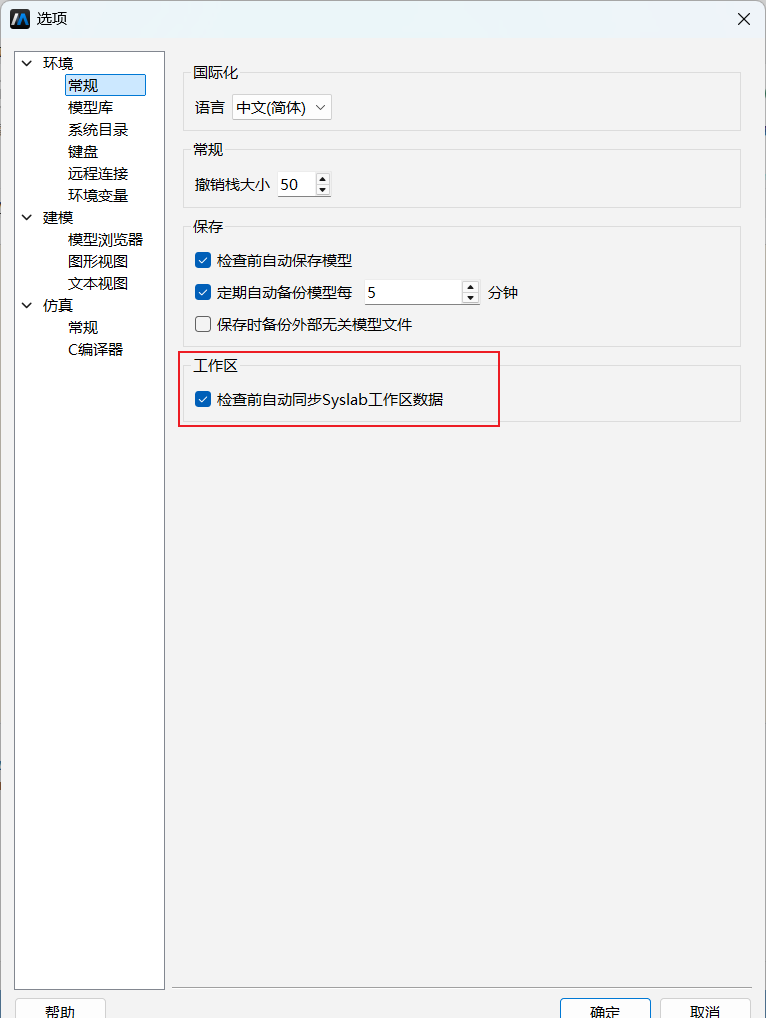

注：需要在设置中勾选“检查前自动同步Syslab工作区数据”，否则无法实时更新Syslab工作区的值
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
