为什么使用Sysblock中的fromworkspace无法读取Syslab工作区的数据？
技术分享
发布于 2025-06-25 23:03:08
查看 1过去342天
fromworkspace用于读取矩阵数据，并且会把第一列数据作为时间列。
如果是需要读取标量，可以使用constant组件，设置参数时直接设置为syslab工作区变量即可。

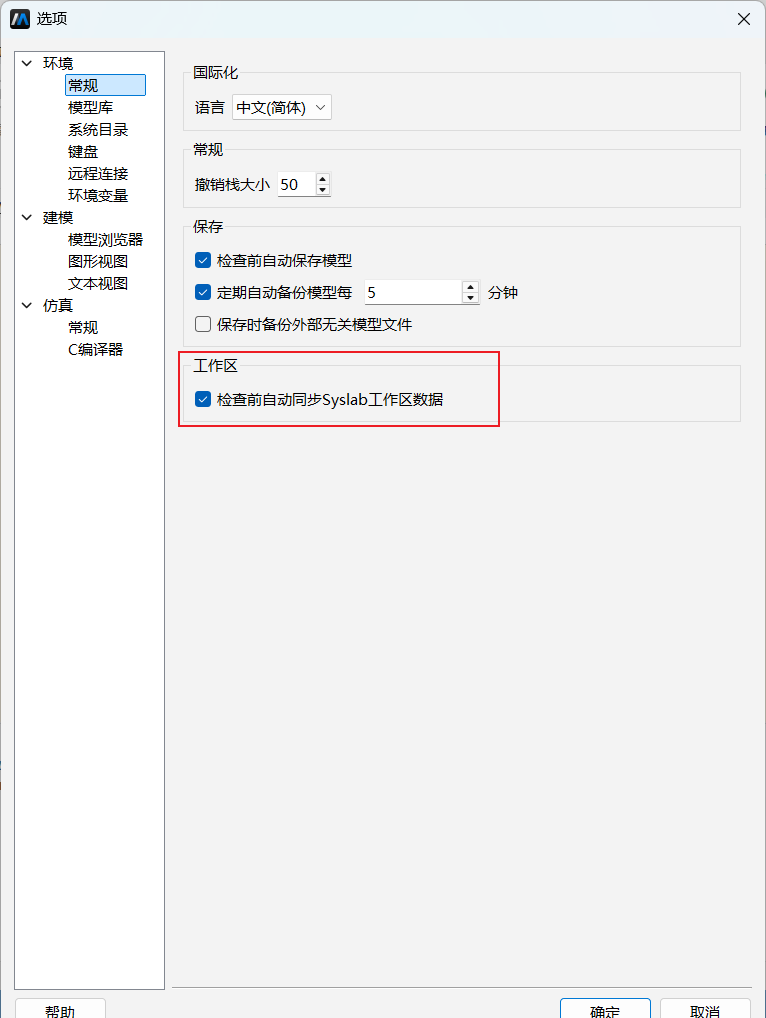

另外需要注意，在设置中勾选“检查前自动同步Syslab工作区数据”，否则无法实时更新Syslab工作区的值
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
