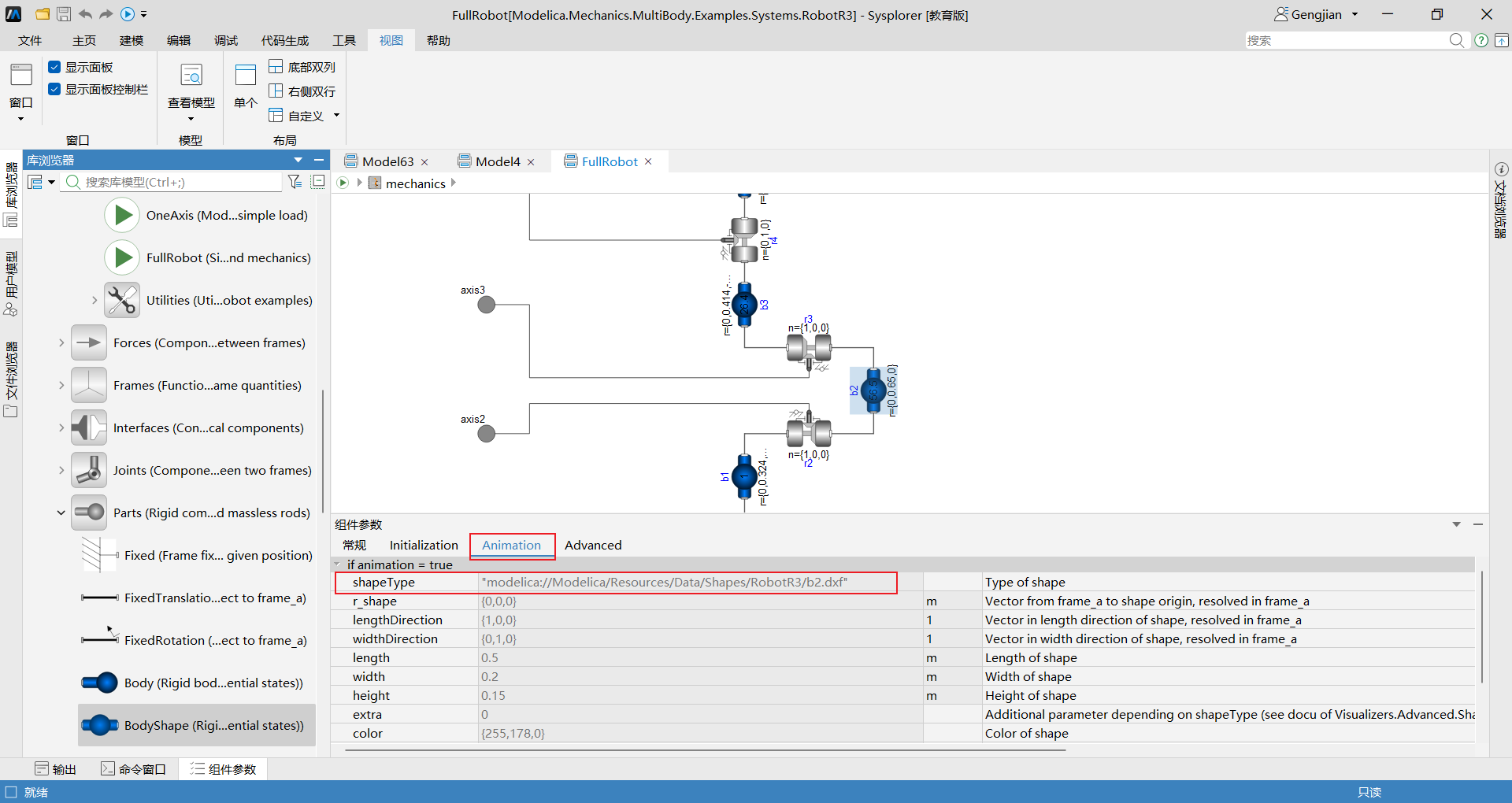

BodyShape如何与三维多体文件相关联？技术分享MoHub发布于 2025-06-25 23:12:22查看 1过去342天可参考图片，在参数面板Animation页面设置shapeType参数，包括文件路径及文件名称。推荐使用相对路径。 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
