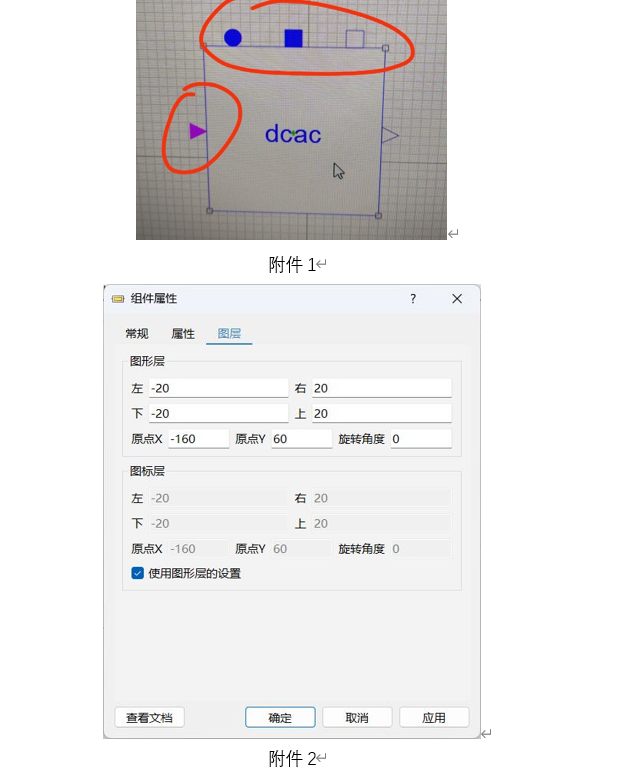

如何在不修改模型视图图形的情况下修改模型接口？现在在图标视图拖动接口之后图形视图中也随着更改。技术分享MoHub发布于 2025-06-25 23:13:15查看 1过去342天1.在图标视图中选中相关接口 2.右键选择属性 3.取消勾选使用图形层的设置 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
