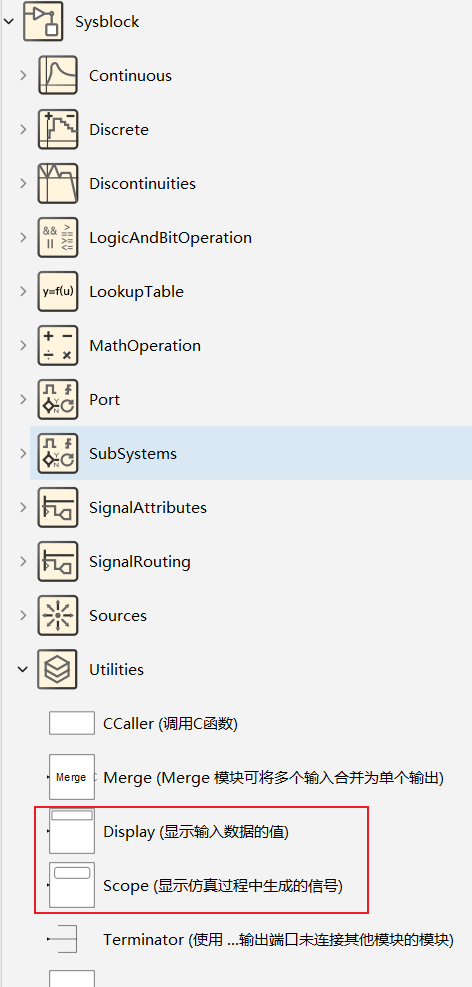

传感器的接口是否有scope或者display组件用于展示数据曲线技术分享MoHub发布于 2025-06-25 23:26:15查看 1过去342天Sysplorer支持直接查看数据，不需要添加相关组件，在仿真浏览器直接点击相关变量即可显示数据曲线。 Sysblock中提供了scope和display组件，支持直接查看数据，组件路径请见下图： 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
