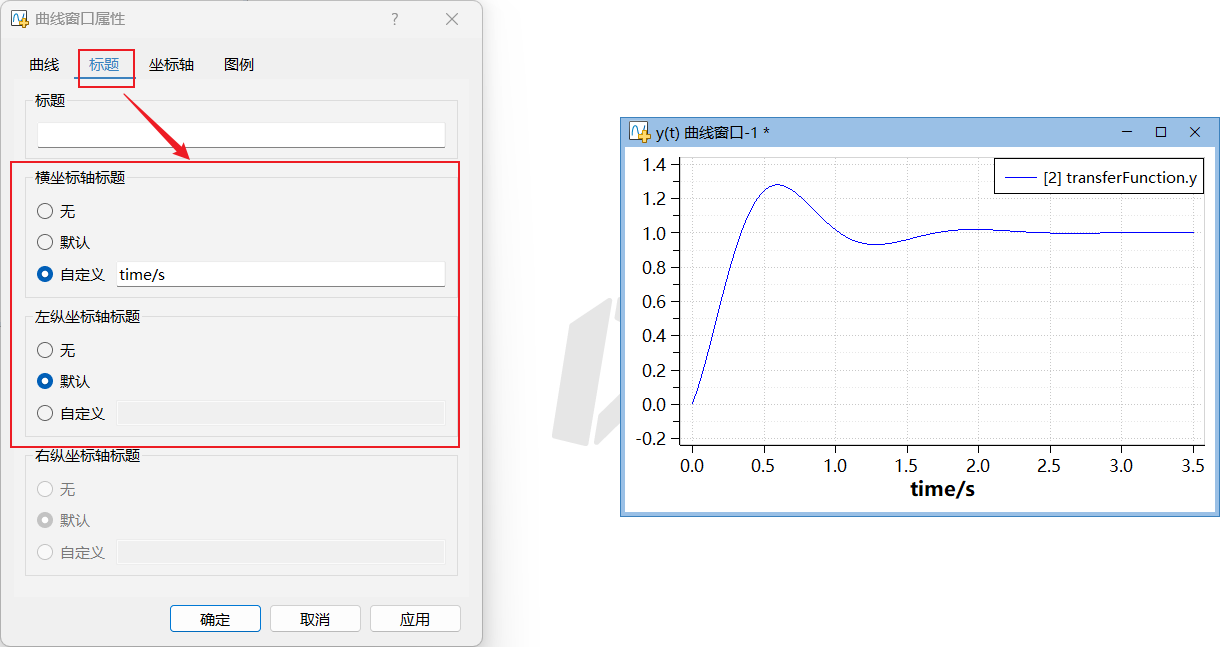

仿真曲线的横坐标是否支持添加文字描述，比如t/s吗？技术分享MoHub发布于 2025-06-25 23:26:30查看 1过去342天支持添加文字描述，可以打开属性界面，点击标题进行设置，如下图所示： 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
