跟着b站的视频做了流体系统建模，但是案例仿真报错参数设置和组件连接都没有错，请问问题出在哪啊？
技术分享
发布于 2025-06-25 23:28:55
查看 2过去342天
问题现象

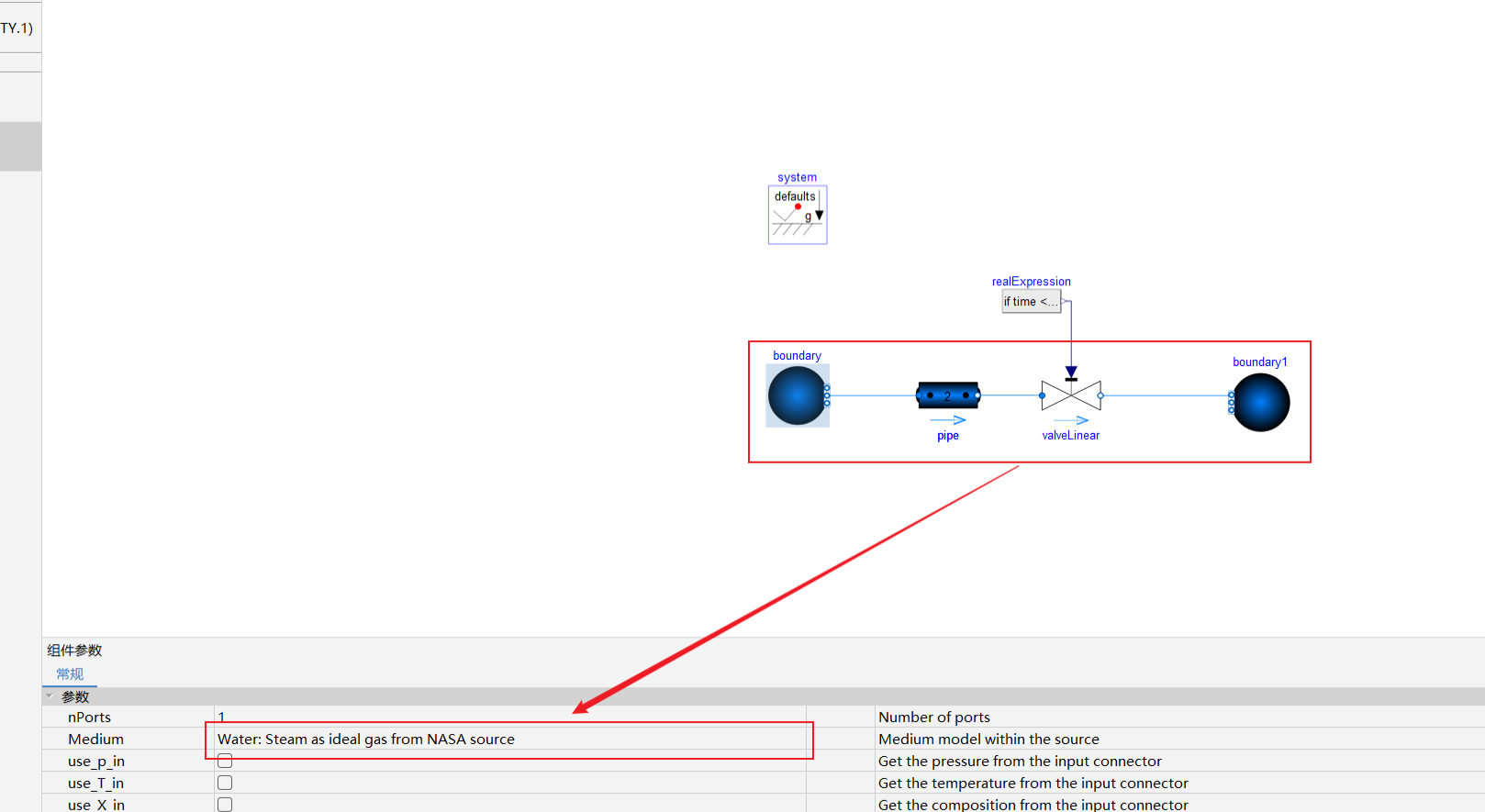

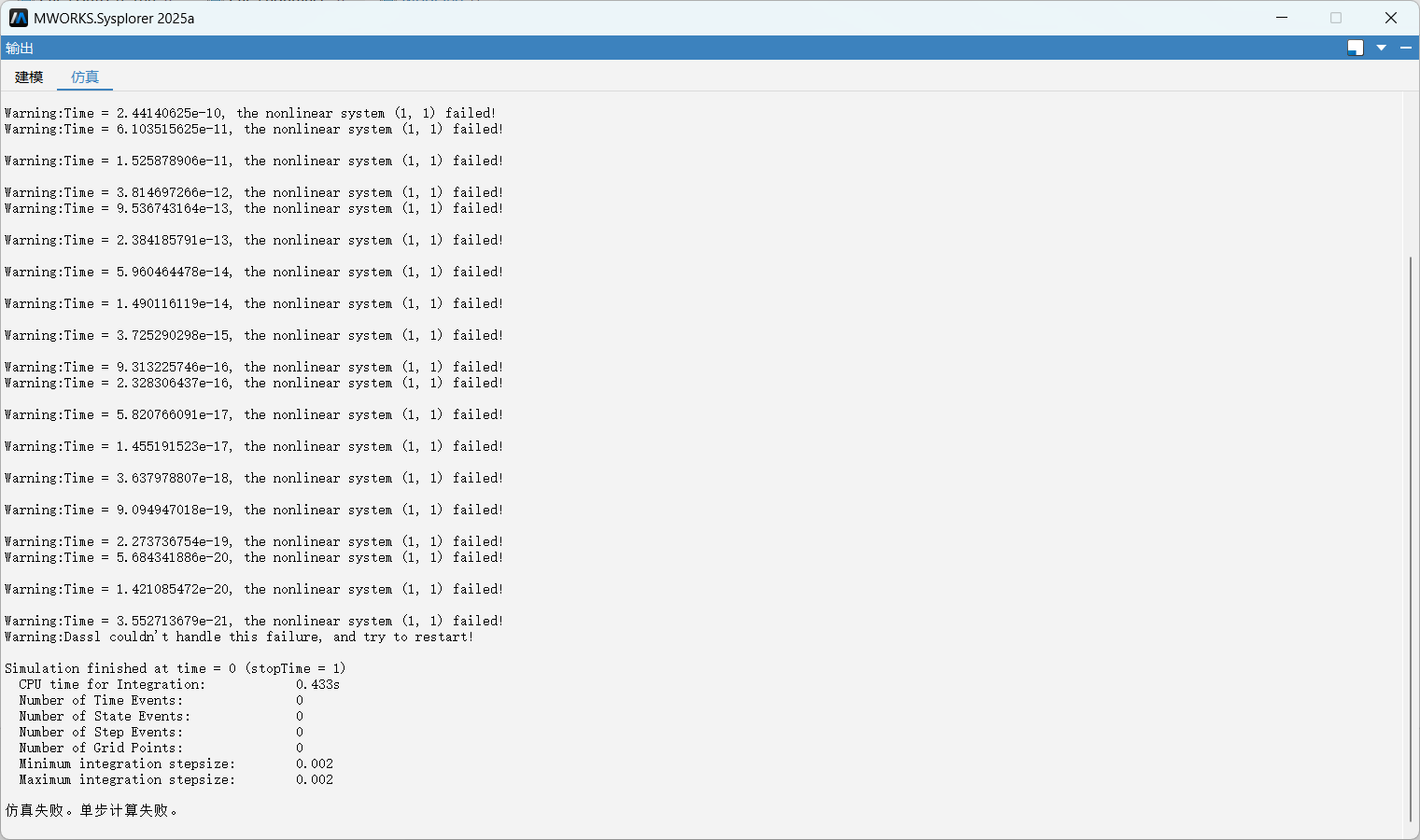

跟着公司B站官方账号搭建了流体系统模型，但是在仿真的时候会报错
问题原因
自2024a软件版本开始升级了内核，检查语法更加严格，导致部分模型不能够在新版本软件上运行，本课程后续将重构，请关注课程更新情况。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
跟着公司B站官方账号搭建了流体系统模型，但是在仿真的时候会报错
自2024a软件版本开始升级了内核，检查语法更加严格，导致部分模型不能够在新版本软件上运行，本课程后续将重构，请关注课程更新情况。
