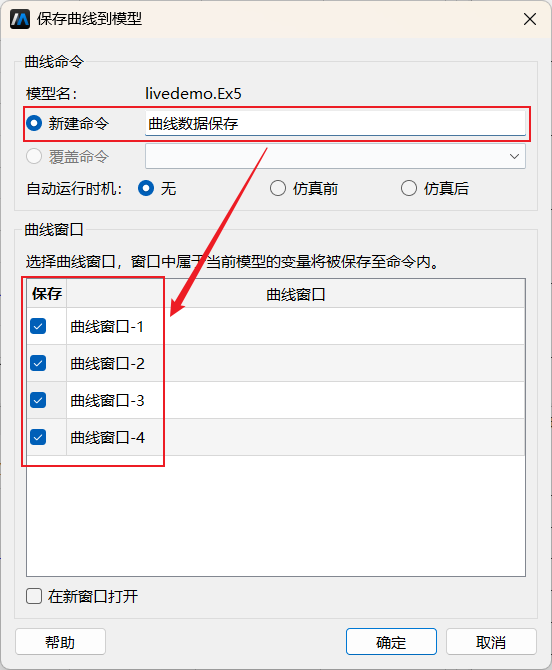

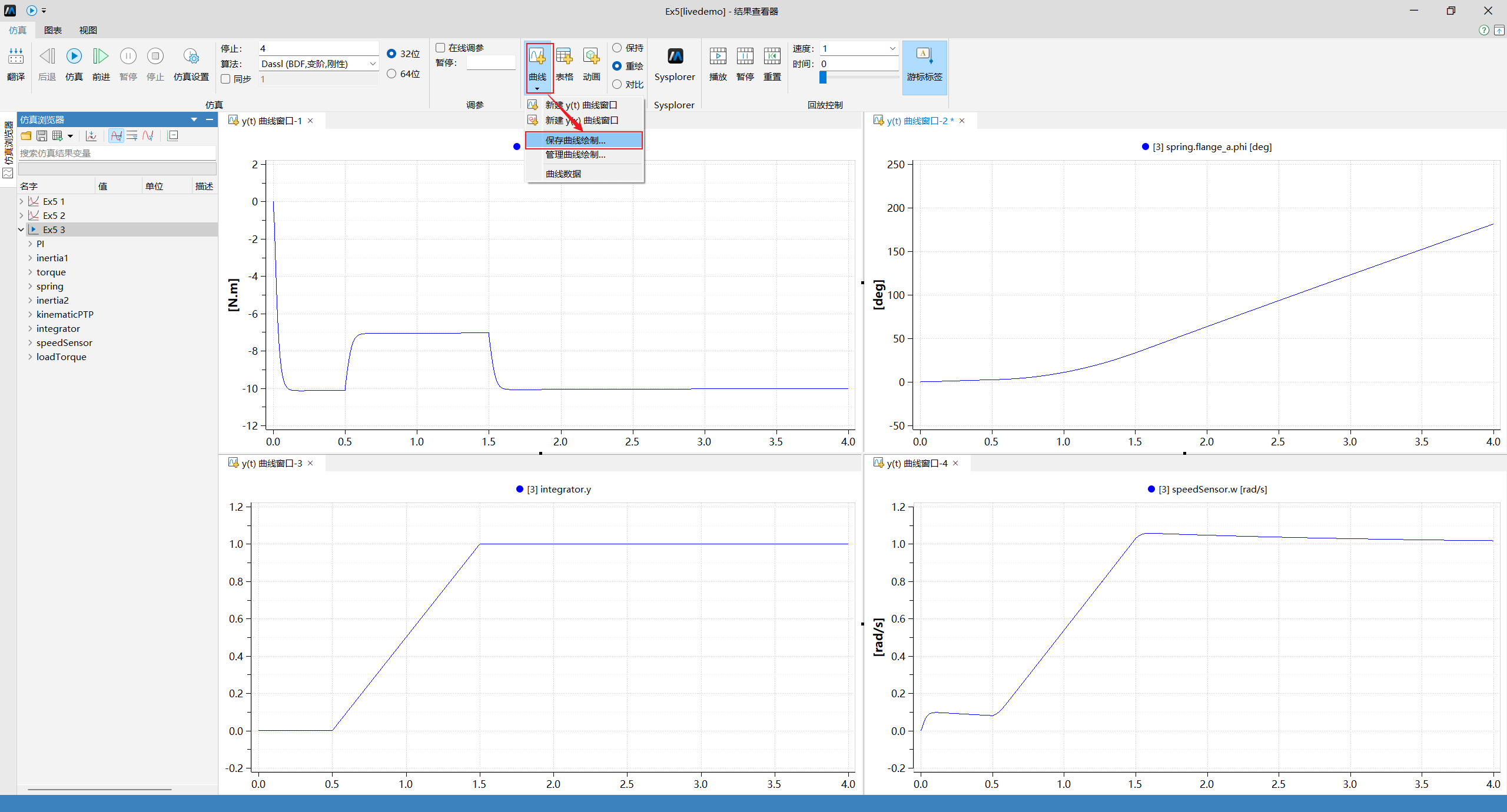

怎么实现每次仿真之后将曲线自动生成，不需要手动拖拽出来？技术分享MoHub发布于 2025-06-25 23:40:47查看 5过去342天解决方法 第一次仿真之后，在结果查看器中将需要查看的曲线拖拽出来，然后依次点击“曲线-保存曲线绘制” 选择“新建命令”，点击需要保存的曲线窗口，最后确定 保存之后，每次仿真结束四个窗口曲线会自动弹出 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
