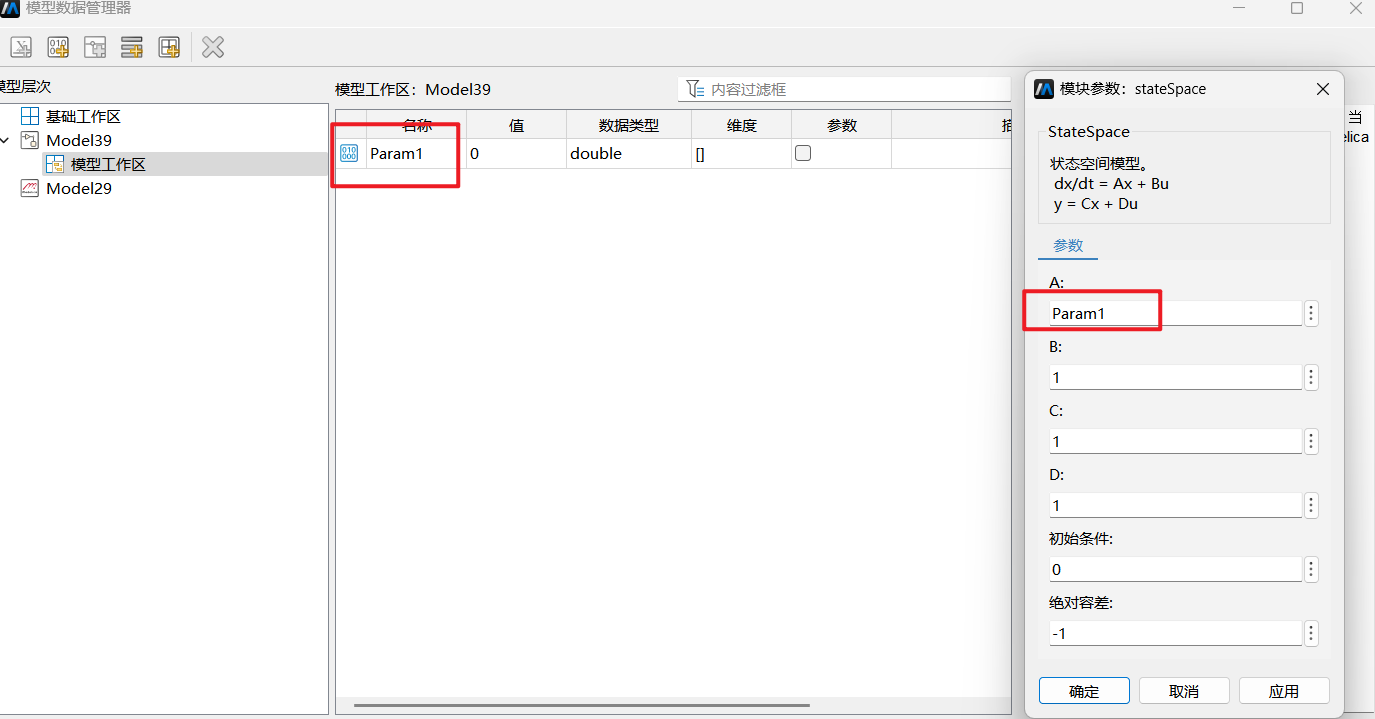

Sysblock中的状态空间方程支持直接读取Syslab工作区中的矩阵数据吗？技术分享MoHub发布于 2025-06-27 00:10:51查看 1过去341天在MWORKS.Sysplorer 2025a SP2中可以按照图片方式在模型数据管理器中添加相关数据，然后设置状态空间组件的参数即可。 所属专栏：Syslab基础平台产品信息：Syslab科学计算环境系统建模科学计算 写回答 关注问题 点赞 0 踩 0 收藏 0
