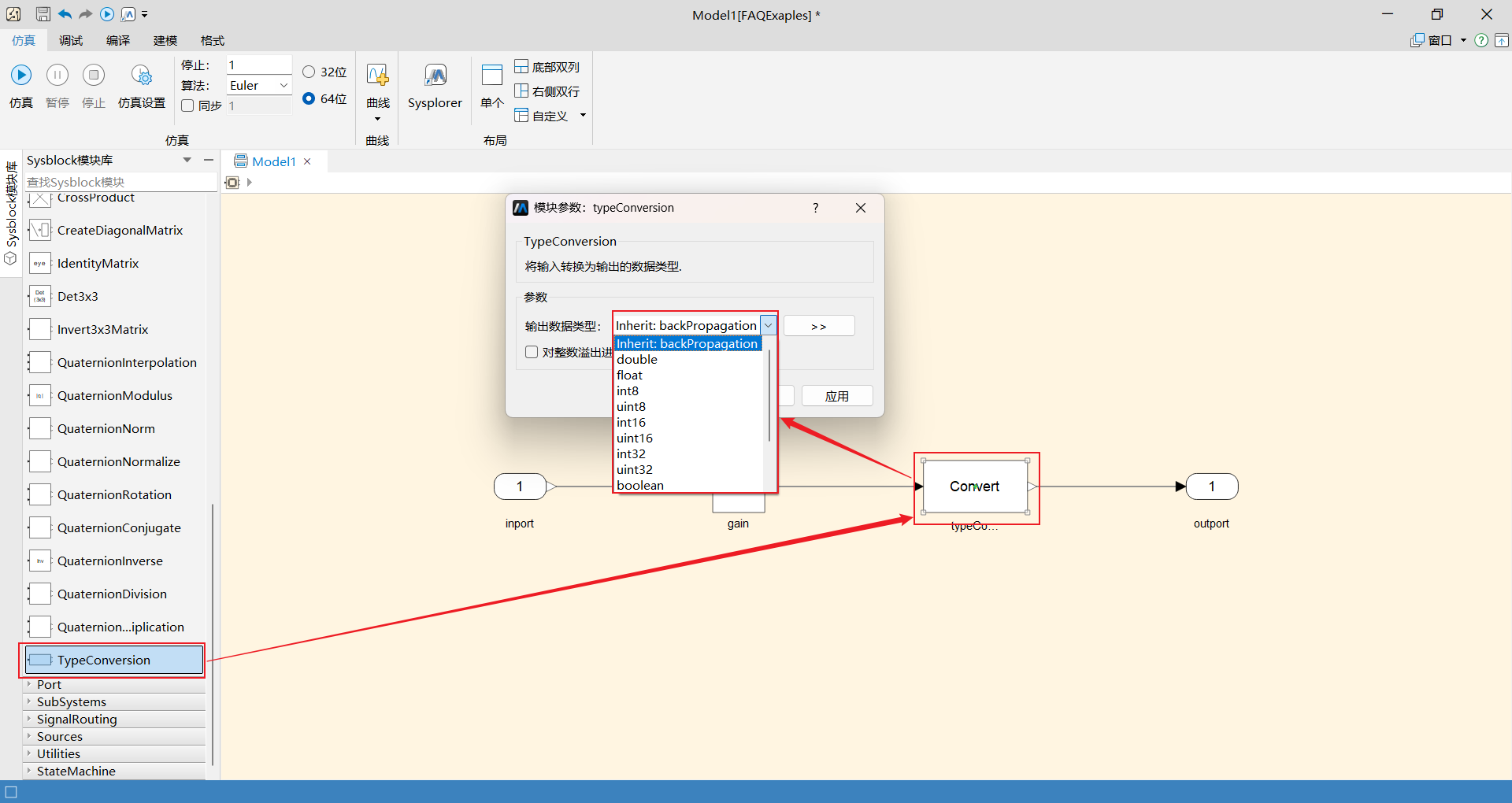

Sysblock建模时如何实现数据类型转换，比如int32转化为uint8技术分享MoHub发布于 2025-06-27 00:15:18查看 1过去341天Sysblock中提供了TypeConversion组件，可以将输入的信号转换为指定类型，具体类型可以双击之后设置参数[输出数据类型]，如下图。 所属专栏：Sysplorer基础平台产品信息：Sysblock 嵌入式代码生成工具系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
