PMSM电机的速度环和位置环自行开发编写，如何搭建系统模型？
技术分享
发布于 2025-06-27 00:15:49
查看 2过去341天
可以参考Modelica标准库模型 Modelica.Electrical.Machines.Examples.ControlledDCDrives.SpeedControlledDCPM 进行构建，将其中的速度环、电流环替换为所开发的模型即可，如下图所示。
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境

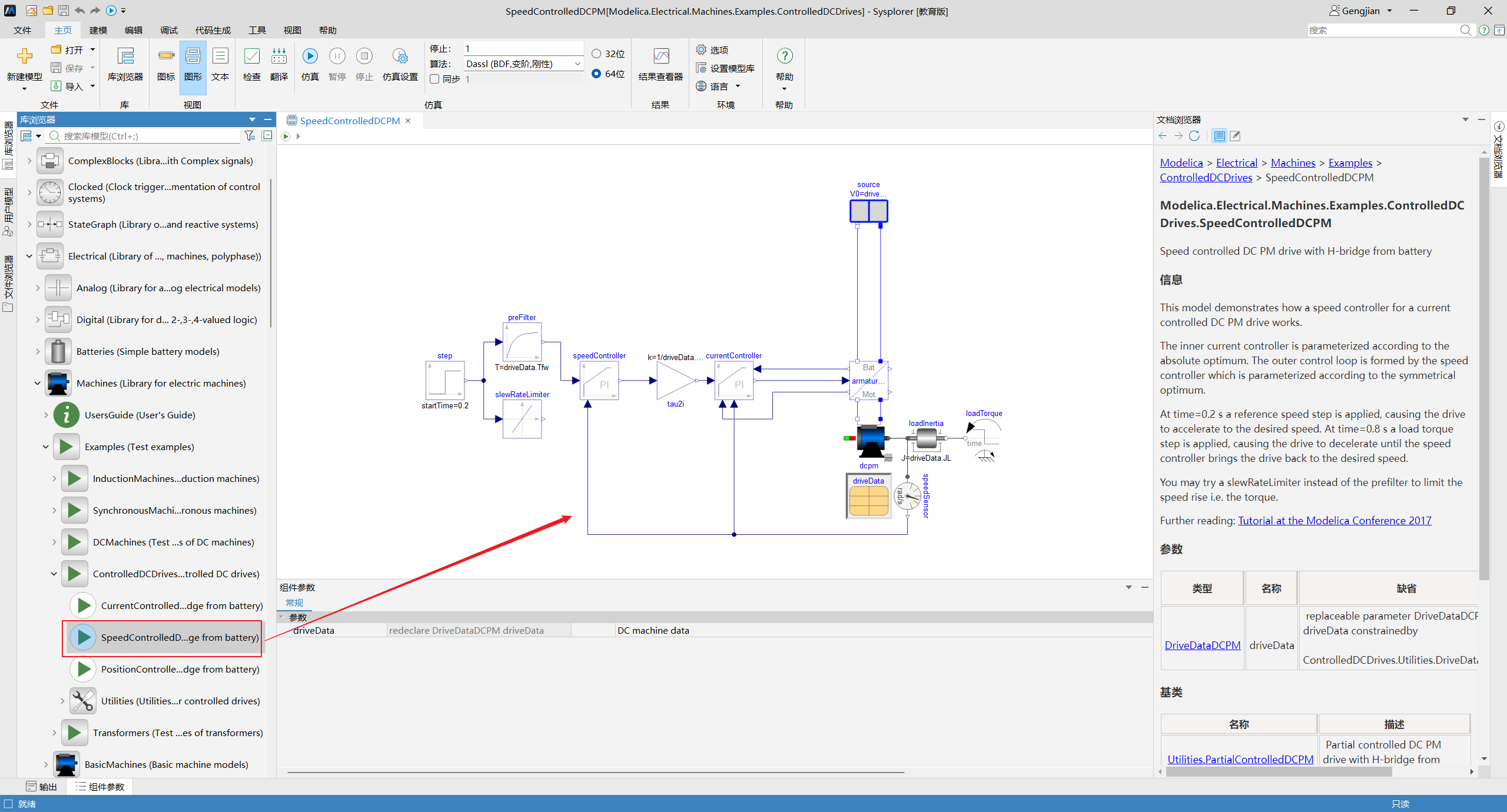

可以参考Modelica标准库模型 Modelica.Electrical.Machines.Examples.ControlledDCDrives.SpeedControlledDCPM 进行构建，将其中的速度环、电流环替换为所开发的模型即可，如下图所示。
