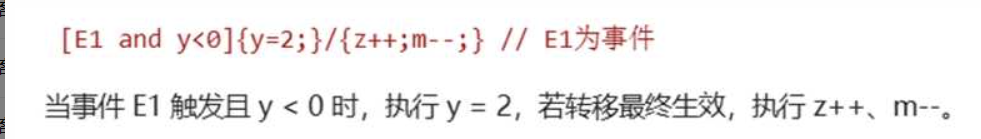

使用Sysblock状态机建模时，转移条件同时有两个应该怎么写呢？技术分享MoHub发布于 2025-06-27 08:51:30查看 1过去340天可以使用and连接两个条件，如图片所示， 所属专栏：Sysplorer基础平台产品信息：Sysblock 嵌入式代码生成工具系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
