Syslab settlingtime函数返回值为NaN正常吗
技术分享
发布于 2025-07-10 10:35:45
查看 1过去327天

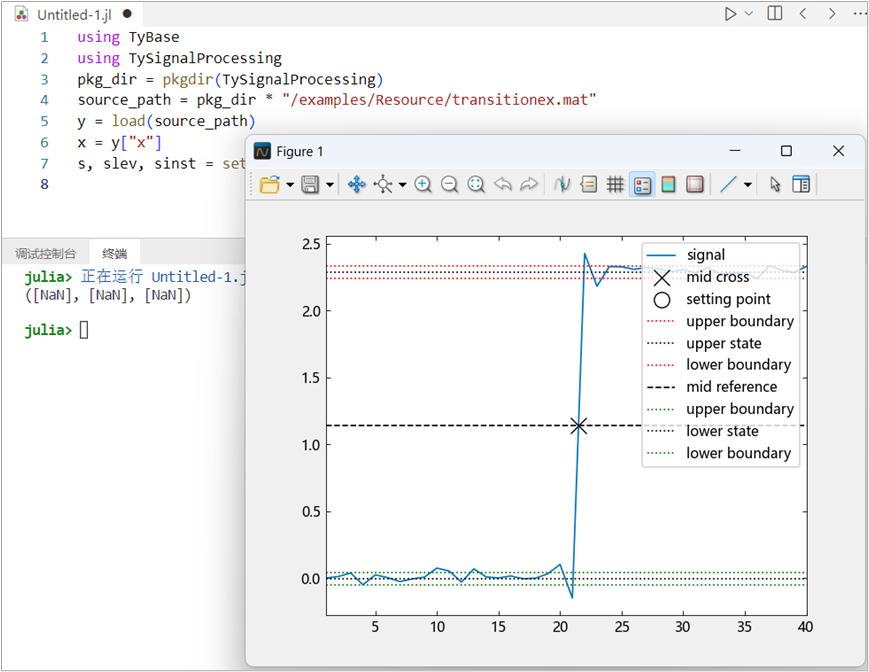

问题现象
运行以下代码，返回值为NaN是否正常。
using TyBase
using TySignalProcessing
pkg_dir = pkgdir(TySignalProcessing)
source_path = pkg_dir * "/examples/Resource/transitionex.mat"
y = load(source_path)
x = y["x"]
s, slev, sinst = settlingtime(x, 1; plotfig=true)
解决方法
返回NaN是正常返回值，按稳态时间的定义，为系统超调都不在2%的上下限内。
所属专栏：Syslab基础平台
产品信息：Syslab科学计算环境
