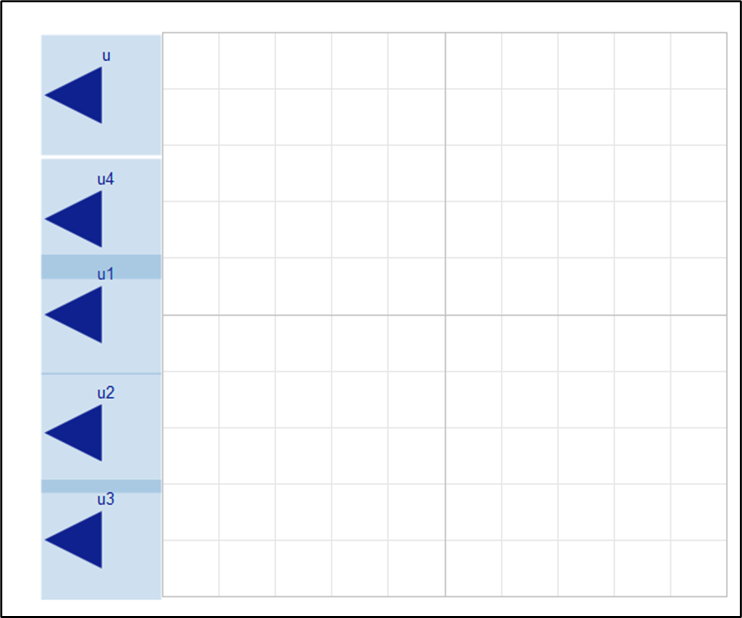

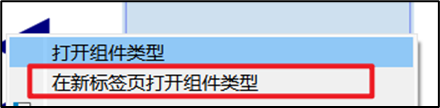

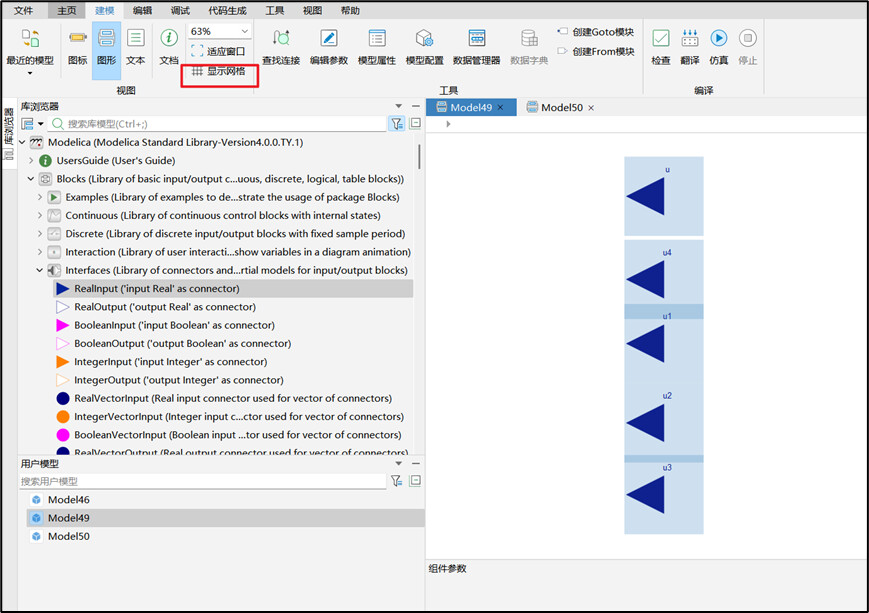

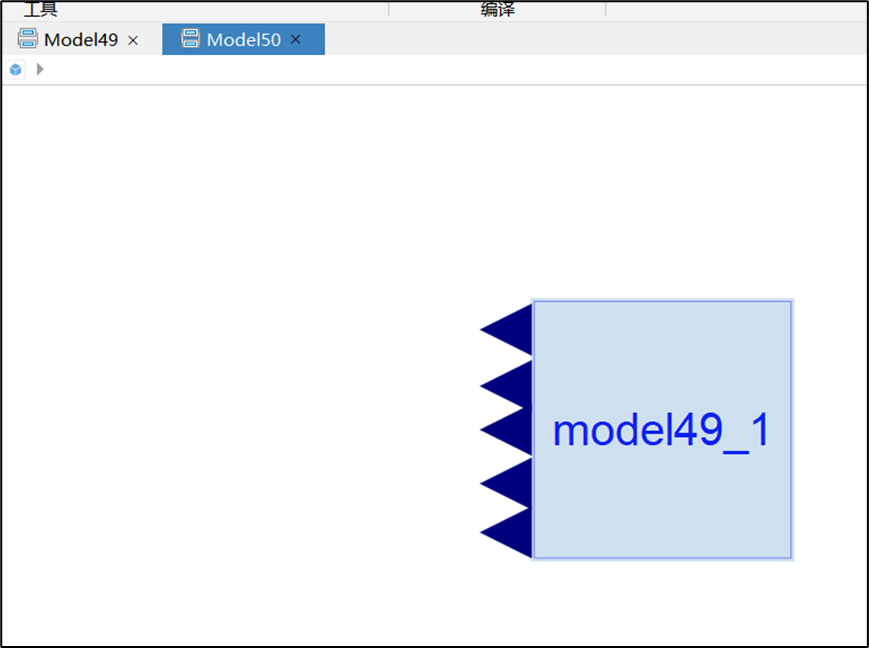

Sysplorer 模型端口位置如何调整？技术分享MoHub发布于 2025-07-10 10:39:03查看 1过去327天实现步骤如下： 1、选中端口，右键选择“在新标签页打开组件类型” 2、在建模栏选中“显示网格” 3、选中端口后，即可移动，网格的边界就是图标和图形的边界 4、返回原模型，此时端口位置已经调整了 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
