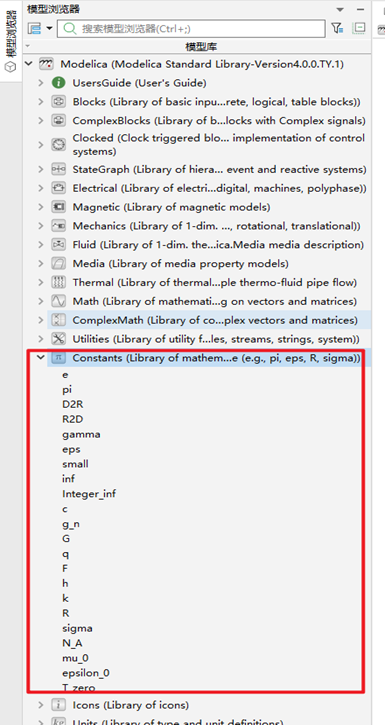

如何在Sysplorer中表示圆周率、无穷等数学常数？技术分享MoHub发布于 2025-07-10 10:39:54查看 2过去327天Modelica.Constants分类下的组件可以表示数学常量：如圆周率用组件“Modelica.Constants.pi”来表示，无穷用“Modelica.Constants.inf”表示。 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
