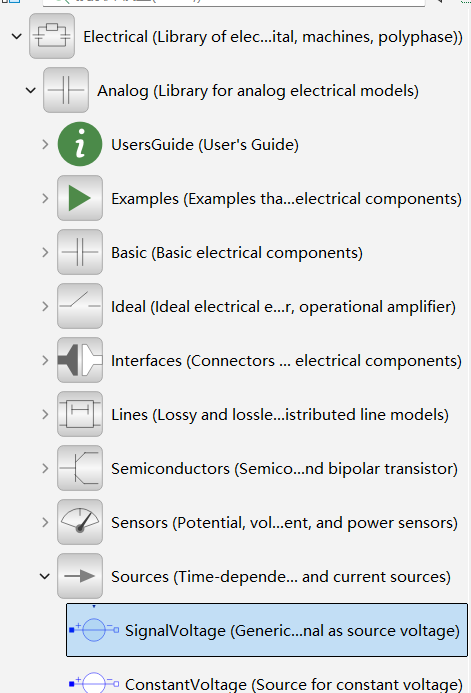

MWORKS是否有模型组件，可以输入各种电压信号？技术分享MoHub发布于 2025-07-11 13:56:42查看 1过去326天可以使用标准库中的Modelica.Electrical.Analog.Sources.SignalVoltage组件，通过外接正弦，阶跃，PWM等信号作为输入，模拟各种电压信号。 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
