如何删除仿真结果文件
技术分享
发布于 2025-07-18 09:46:27
查看 1过去319天
Sysplorer可以在仿真结果目录中删除仿真结果文件。

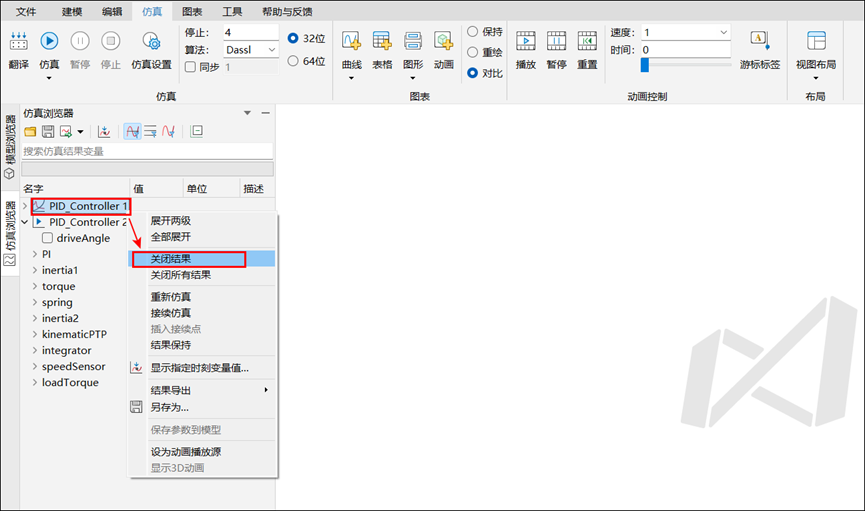

- 在仿真浏览器中选中需要删除的仿真结果文件，右击鼠标，在弹出的上下文菜单中选择“关闭结果”，即可在仿真浏览器中删除该仿真结果。

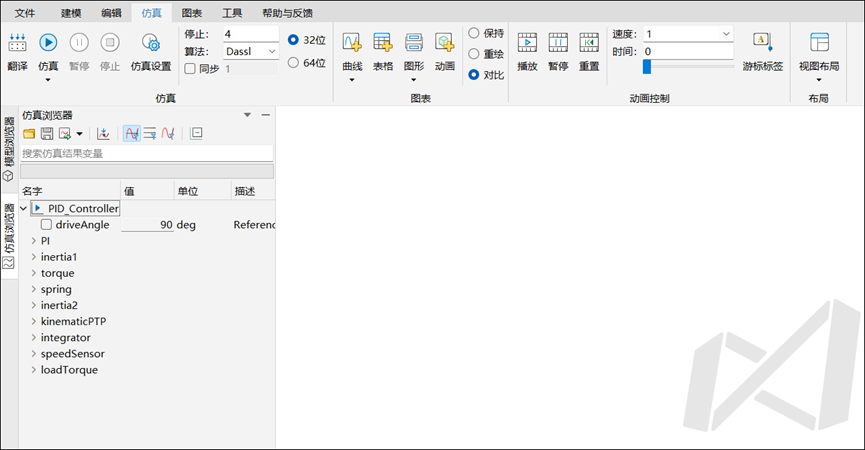

结果文件“PID_Controller 1”已删除，如下图所示：

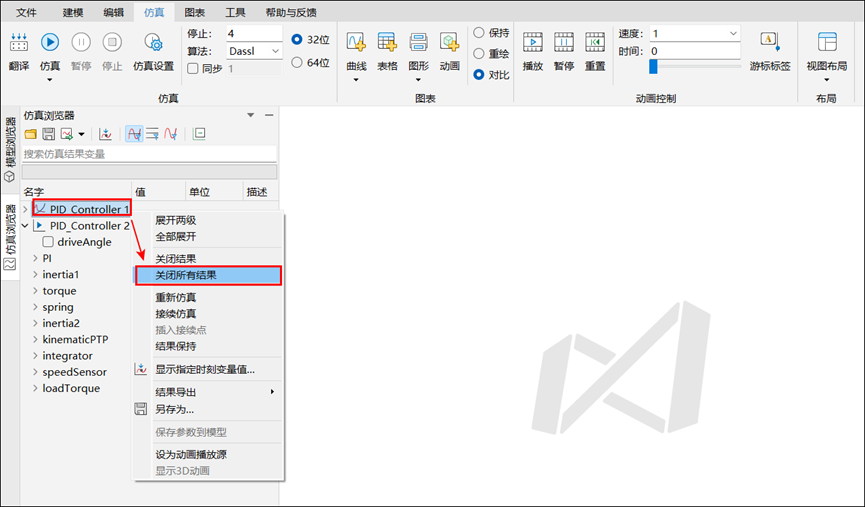

- 在仿真浏览器中选中任意需要删除的仿真结果文件，右击鼠标，在弹出的上下文菜单中选择“关闭所有结果”，即可删除当前仿真浏览器中所有仿真结果。

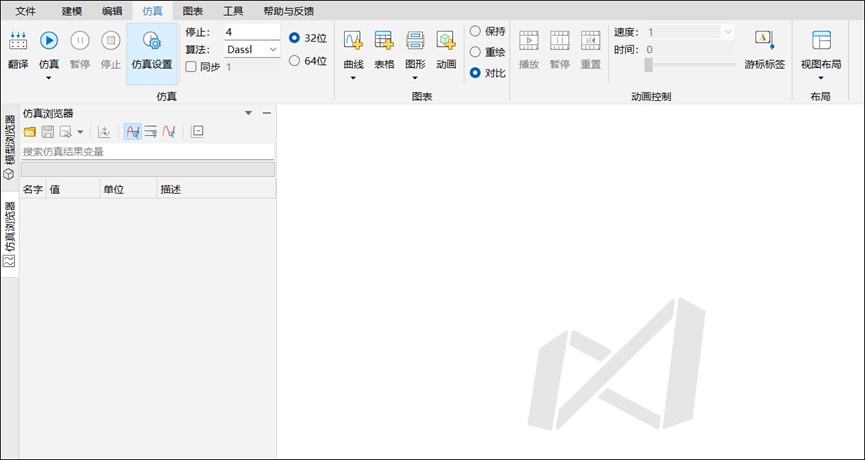

所有仿真结果文件均已删除，如下图所示：
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
