Sysplorer 怎么同时打开两个文本查看？
技术分享
发布于 2025-07-18 10:14:53
查看 1过去319天

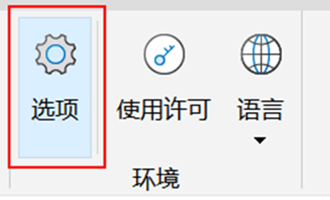

1.切换到 “工具栏” ，单击 “选项” ；

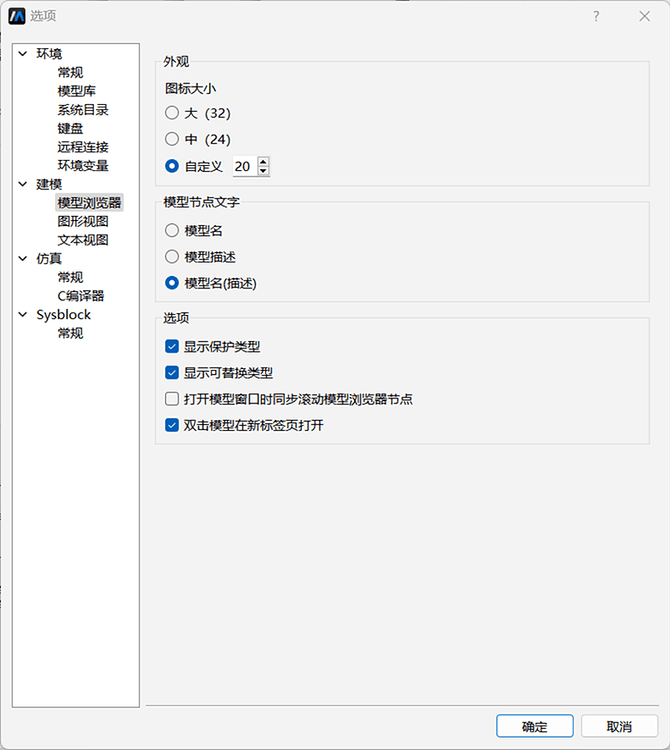

2.进入 “建模 > 模型浏览器”，勾选 “双击模型在新标签页打开” ，单击 “确定”；

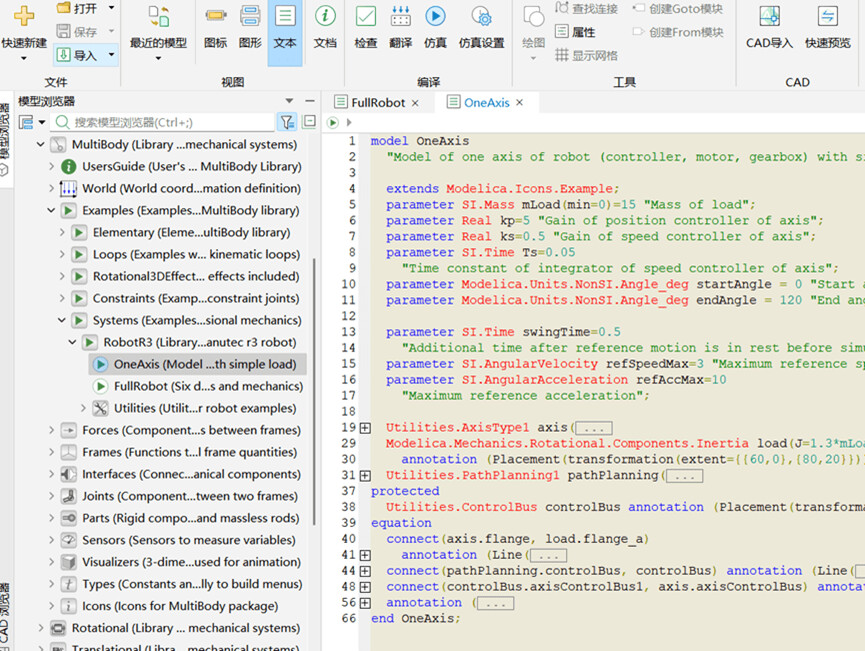

3.返回建模栏，打开需要查看的模型，切换到文本视图；

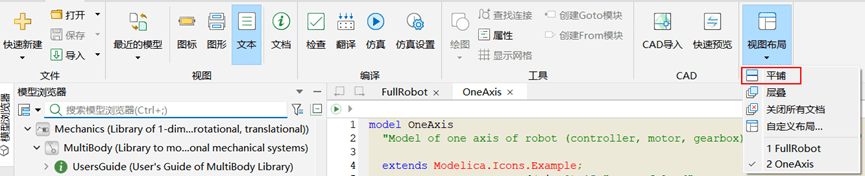

4.单击 “视图布局” ，在下拉菜单中选择 “平铺” ；

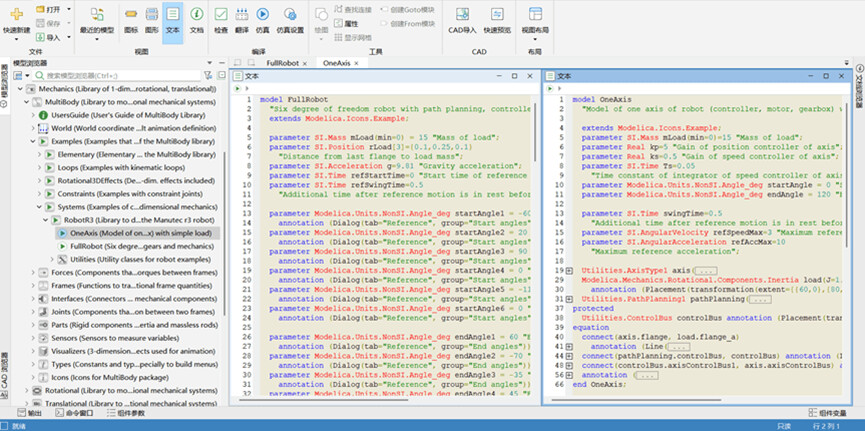

5.即可同时查看两个模型的文本；
所属专栏：Sysplorer基础平台
产品信息：Sysplorer系统建模仿真环境
