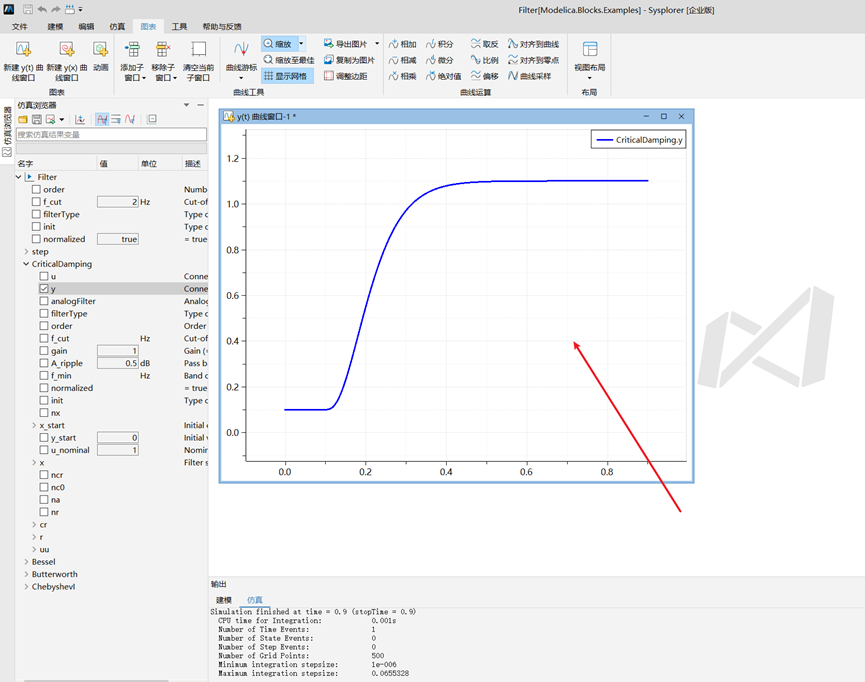

Sysplorer仿真波形如何实现波形放大/缩小技术分享MoHub发布于 2025-07-22 13:35:30查看 1过去315天鼠标位于波形曲线图内时，按住 ctrl 键后，滑动鼠标滚轮即可缩放 所属专栏：Sysplorer基础平台产品信息：Sysplorer系统建模仿真环境系统建模 写回答 关注问题 点赞 0 踩 0 收藏 0
